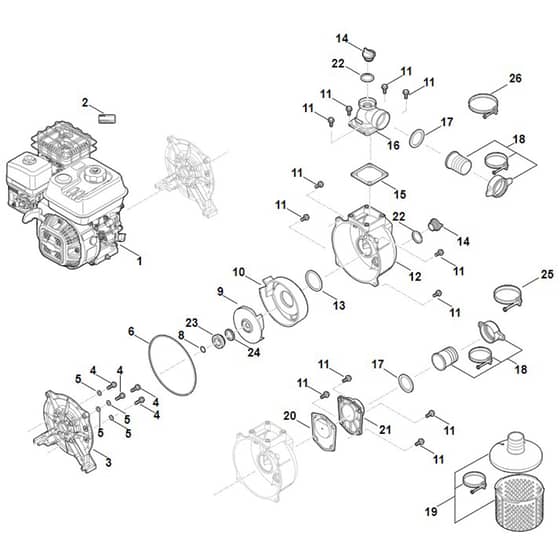

Stihl WP300.0 - Motor, Pump - Parts Diagram

Description

	Part No.	Details
1	STVB03 011 1800 Available to backorder	EHC 605.0 (EHC605-0001)	£189.20 £157.67
2	ST0000 967 3454 Available to backorder	Warning sign with machine number	£2.08 £1.73
3	STVB03 780 2000 Available to backorder	Cover assy.	£67.66 £56.38
5	STVB03 709 0401 Available to backorder	Gasket	£1.22 £1.02
6	STVB03 709 2000 Available to backorder	Sealing ring	£2.74 £2.28
8	STVB03 708 9300 Available to backorder	Washer	£1.10 £0.92
9	STVB03 770 0400 Available to backorder	Blade wheel	£22.54 £18.78
10	STVB03 761 1200 Available to backorder	Channel	£49.40 £41.17
11	ST6250 951 0818 Available to backorder	Hexagon screw with flange M8x25	£1.88 £1.57
12	STVB03 701 1000 Available to backorder	Housing	£49.84 £41.53
13	STVB03 709 2010 Available to backorder	Sealing ring	£1.22 £1.02

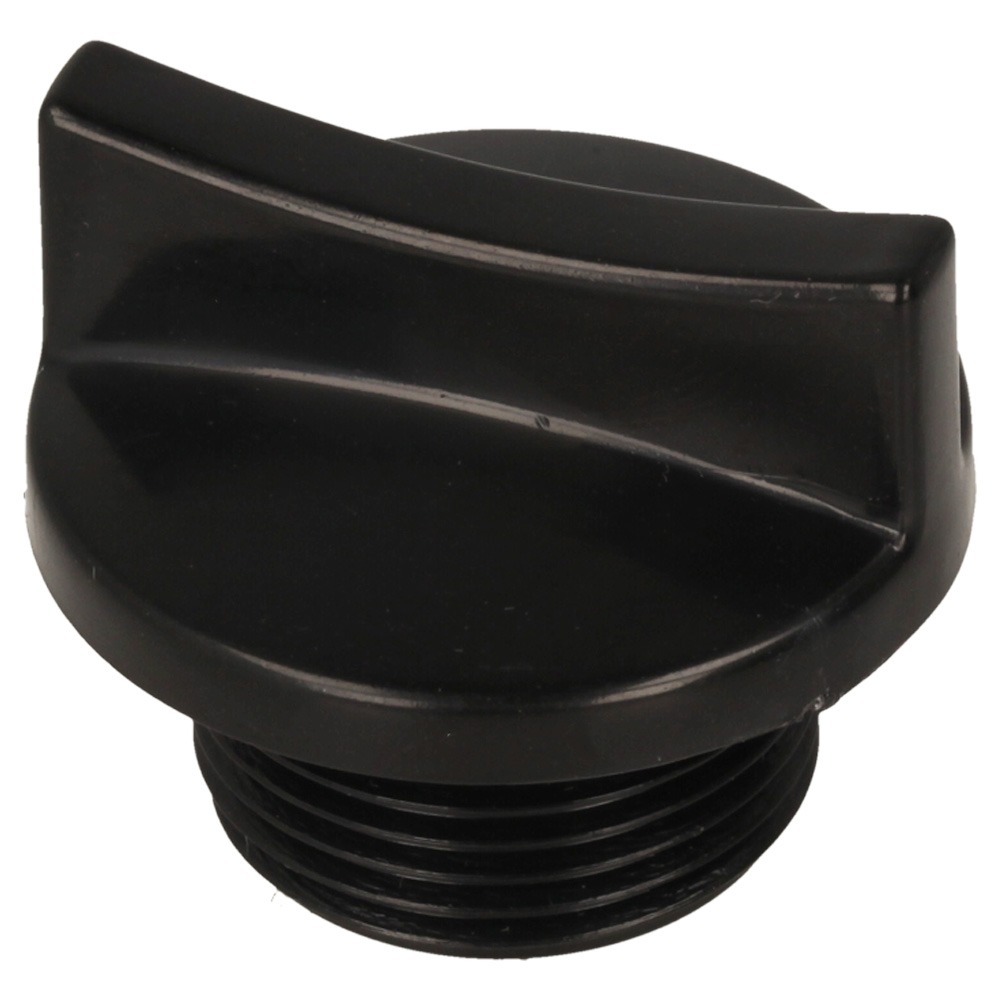

14	STVB03 708 5800 In stock	Plug screw	£17.06 £14.22
15	STVB03 709 0410 Available to backorder	Gasket	£2.32 £1.93
16	STVB03 701 2000 Available to backorder	Flange	£30.14 £25.12
17	STVB03 709 0400 Available to backorder	Gasket	£2.08 £1.73
18	STVB03 007 1905 Available to backorder	Connection piece set	£59.40 £49.50
19	STVB03 007 3400 Available to backorder	Filter set	£42.46 £35.38
20	STVB03 706 2400 Available to backorder	Flap	£13.10 £10.92
21	STVB03 701 2010 Available to backorder	Flange	£26.08 £21.73
