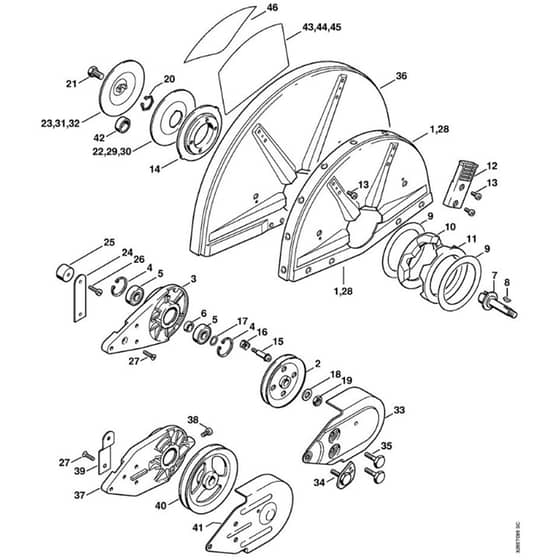

Stihl TS510 - Support With Guard - Parts Diagram

Name: Stihl TS510 - Support With Guard - Parts Diagram
SKU: ts510_support_with_guard-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl TS510 - Support With Guard - Parts Diagram

Description

Stihl TS510 - Support With Guard - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4238 700 8110 In stock	Guard Ø 300 mm / 12"	£177.92 £148.27
0	ST4221 007 1008 Available to backorder	Support with guard Ø 350 mm / 14" (Contains 2 - 23 + 28)	£477.60 £398.00
2	ST4201 700 2504 Available to backorder	V-belt pulley	£42.24 £35.20
3	ST4205 791 3902 Available to backorder	Support	£35.42 £29.52
4	ST9456 621 3600 In stock	Circlips 32x12	£1.22 £1.02
5	ST9503 003 6440 In stock	Grooved ball bearing 6201-2RS	£7.70 £6.42
6	ST0000 961 1206 In stock	Ring	£2.64 £2.20
7	ST4201 704 0504 In stock	Shaft	Was £75.90 £63.25 Special Price £35.99 £29.99
9	ST4201 706 9202 In stock	Washer	Was £2.08 £1.73 Special Price £1.19 £0.99
10	ST4221 706 8800 Available to backorder	Rubber ring	£10.24 £8.53
11	ST4221 706 8801 Available to backorder	Rubber ring	£10.66 £8.88
12	ST4223 700 2900 Available to backorder	Adjusting lever	£7.04 £5.87
13	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.77 £0.64
14	ST4205 706 2903 In stock	Flange	£14.62 £12.18
15	ST4223 710 9500 Available to backorder	Adjusting screw (Contains 16)	£4.56 £3.80
16	ST0000 997 1303 Available to backorder	Compression spring	£1.54 £1.28
17	ST0000 958 1212 Available to backorder	Washer	£1.10 £0.92
18	ST9291 021 0200 In stock	Washer 10.5	£0.48 £0.40
19	ST9211 260 1350 In stock	Hexagon nut M10x1 l/h thread	£0.76 £0.63
20	ST9450 721 2150 In stock	E-clip 20x1.2	£0.88 £0.73
21	ST4201 708 8402 In stock	Hexagon head screw M10x18	Was £2.54 £2.12 Special Price £1.57 £1.31
22	ST4201 708 3004 In stock	Thrust washer Ø 103 mm	Was £20.36 £16.97 Special Price £12.58 £10.48
23	ST4201 708 3014 In stock	Thrust washer Ø 103 mm	£20.90 £17.42
24	ST4201 790 6005 Available to backorder	Limit stop	£5.38 £4.48
25	ST4201 790 9302 Available to backorder	Rubber buffer	£7.70 £6.42
26	ST9041 216 1230 Available to backorder	Pan head screw M6x8	£0.76 £0.63
27	ST9062 319 1260 Available to backorder	Countersunk screw M6x12	£0.76 £0.63
28	ST4224 700 8103 Available to backorder	Guard Ø 350 mm / 14"	£172.08 £143.40
29	ST4205 708 3000 Available to backorder	Thrust washer Ø 118 mm	£22.22 £18.52
31	ST4205 708 3010 Available to backorder	Thrust washer Ø 118 mm	£22.44 £18.70
33	ST4201 700 8116 Available to backorder	Guard	£23.76 £19.80
34	ST4201 760 9500 Available to backorder	Adjusting screw	£9.24 £7.70
35	ST4201 708 8401 In stock	Hexagon head screw M8x42	£2.08 £1.73
36	ST4224 700 8105 Available to backorder	Guard Ø 400 mm / 16"	£192.50 £160.42
38	ST9022 341 1260 Available to backorder	Spline screw IS-M6x12	£0.76 £0.63
40	ST4205 704 1004 Available to backorder	V-belt pulley	£51.50 £42.92
42	ST0000 708 4200 Available to backorder	Shaft sleeve	£6.50 £5.42
