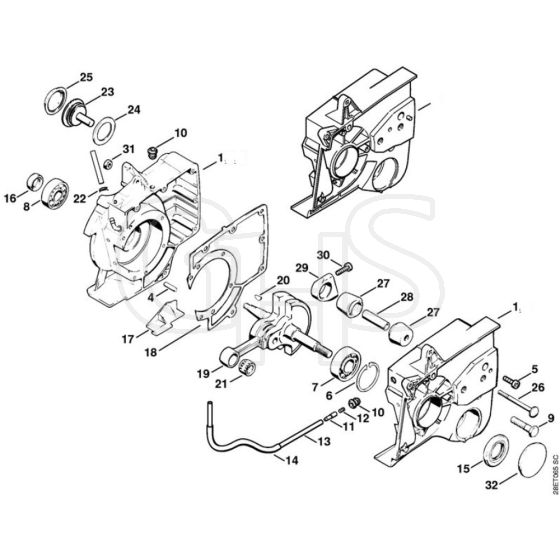

Stihl TS510 - Crankcase - Parts Diagram

Stihl TS510 - Crankcase - Parts Diagram
Stihl TS510 - Crankcase - Parts Diagram

Description

Stihl TS510 - Crankcase - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  -1 Hose 3.1x5.7 mm x 1 m R3 ST0000 930 2803
Hose 3.1x5.7 mm x 1 m R3
 In stock
£4.20 £3.50

  1 Crankcase (Contains 4 - 14) ST4205 020 2102
Crankcase (Contains 4 - 14)
 Out of stock
£166.32 £138.60

  1 Hose 3.1x5.7 mm x 10 m R3 ST0712 923 8004
Hose 3.1x5.7 mm x 10 m R3
 In stock
£36.60 £30.50

  4 Cylindrical pin 6x20 ST9371 470 3120
Cylindrical pin 6x20
 Out of stock
£0.76 £0.63

  6 Circlip 47x1.75 ST9456 621 4910
Circlip 47x1.75
 Out of stock
£1.76 £1.47

  9 Hexagon head screw M10x40 ST4201 708 8403
Hexagon head screw M10x40
 Out of stock
£12.77 £10.64

  10 Grommet ST4205 647 9100
Grommet
 Out of stock
£1.76 £1.47

  11 Tank vent (Contains 12) ST4205 350 5800
Tank vent (Contains 12)
 Out of stock
£8.56 £7.13

  12 Vent insert ST1120 358 8105
Vent insert
 Out of stock
£0.97 £0.81

  14 Hose 200 mm / 7 7/8 ST4205 141 8602
Hose 200 mm / 7 7/8"
 Out of stock
£3.78 £3.15

  16 Oil seal 15x24x7 ST9640 003 1570
Oil seal 15x24x7
 In stock
£6.86 £5.72

  17 Insert ST1111 084 6600
Insert
 Out of stock
£3.38 £2.82

  18 Gasket ST1111 029 0501
Gasket
 Out of stock
£2.65 £2.21

  19 Crankshaft (Contains 20) ST1111 030 0402
Crankshaft (Contains 20)
 Out of stock
£377.16 £314.30

  20 Woodruff key 2x3.7 ST1120 036 8500
Woodruff key 2x3.7
 In stock
£1.15 £0.96

  21 Needle cage 13 x17x17.5 ST9512 003 3440
Needle cage 13 x17x17.5
 Out of stock
£10.06 £8.38

  22 Hose clip ST4205 122 2500
Hose clip
 Out of stock
£0.86 £0.72

  23 Filler cap (Contains 24 + 25) ST4205 350 0550
Filler cap (Contains 24 + 25)
 Out of stock
£5.71 £4.76

  24 Sealing ring ST0000 992 6302
Sealing ring
 Out of stock
£0.86 £0.72

  25 Cap ST4205 353 2300
Cap
 Out of stock
£3.38 £2.82

  26 Flat head screw M6x75 ST9027 068 1480
Flat head screw M6x75
 Out of stock
£1.72 £1.43

  27 Annular buffer ST1111 790 9900
Annular buffer
 Out of stock
£9.82 £8.18

  28 Tube ST1111 791 2700
Tube
 Out of stock
£5.17 £4.31

  29 Support ST1111 791 5400
Support
 Out of stock
£8.08 £6.73

  30 Spline screw IS-M5x18 ST9022 341 1010
Spline screw IS-M5x18
 Out of stock
£1.13 £0.94

  31 Lock nut M6 ST9214 320 0900
Lock nut M6
 Out of stock
£0.46 £0.38

  32 Cover ST1111 648 7700
Cover
 Out of stock
£3.73 £3.11


Description

Stihl TS510 - Crankcase - Parts Diagram
