Stihl TS08 - Carburetor - Parts Diagram

Name: Stihl TS08 - Carburetor - Parts Diagram
SKU: ts08_carburetor-group
Price: 0.38 GBP
Availability: InStock

Part No. ts08_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

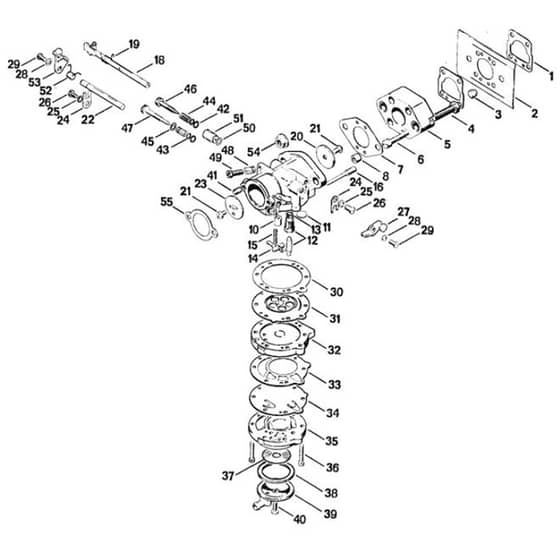

Stihl TS08 - Carburetor - Parts Diagram

	Part No.	Details
1	ST1108 129 1110 Available to backorder	Gasket	£1.37 £1.14
2	ST1108 121 2200 Available to backorder	Cooling plate	£1.82 £1.52
4	ST9008 319 1350 Available to backorder	Hexagon head screw M6x25	£1.03 £0.86
5	ST1108 120 2300 In stock	Spacer flange	Was £16.06 £13.38 Special Price £5.99 £4.99
6	ST9048 319 0740 Available to backorder	Pan head screw M4x25	£0.86 £0.72
7	ST1108 129 1102 Available to backorder	Gasket	£1.37 £1.14
8	ST1106 121 8701 Available to backorder	Bushing	£3.41 £2.84
10	ST1106 121 5400 Available to backorder	Valve jet	£17.63 £14.69
11	ST6503 122 9410 Available to backorder	Plug	£3.86 £3.22
12	ST1106 120 8801 Available to backorder	Inlet needle valve	£33.23 £27.69
13	ST6503 129 2500 Available to backorder	Gasket	£2.21 £1.84
14	ST1106 121 5000 Available to backorder	Inlet control lever	£3.64 £3.03
16	ST6503 122 8000 Available to backorder	Stud	£8.66 £7.22
18	ST1108 120 7100 Available to backorder	Throttle shaft with lever	£22.76 £18.97
19	ST1108 122 3210 Available to backorder	Torsion spring	£1.14 £0.95
21	ST1106 122 7400 Available to backorder	Round head screw	£8.09 £6.74
22	ST1108 121 3000 Available to backorder	Choke shaft	£19.12 £15.93
24	ST6503 122 9300 Available to backorder	Clip	£1.37 £1.14
25	ST6503 122 8710 Available to backorder	Spring washer	£3.66 £3.05
30	ST6503 129 0910 Available to backorder	Metering gasket	£2.28 £1.90
31	ST6503 121 4700 Available to backorder	Metering diaphragm	£15.48 £12.90
32	ST6503 121 0500 Available to backorder	Pump housing	£18.48 £15.40
33	ST1108 129 1100 Available to backorder	Pump gasket	£2.28 £1.90
35	ST6503 121 0400 Available to backorder	Top	£35.86 £29.88
36	ST6503 122 7710 Available to backorder	Oval head screw	£19.61 £16.34
37	ST6503 121 7810 Available to backorder	Strainer	£3.41 £2.84
38	ST6503 129 3010 Available to backorder	Sealing ring	£6.14 £5.12
39	ST6503 121 0800 Available to backorder	End cover	£17.75 £14.79
40	ST6503 122 7700 Available to backorder	Oval head screw	£4.68 £3.90
41	ST9795 003 0350 Available to backorder	Helicoil thread insert M5x7.5	£0.64 £0.53
42	ST1106 129 2300 Available to backorder	Gasket	£2.28 £1.90
43	ST1106 129 3500 Available to backorder	Sealing ring	£6.14 £5.12
44	ST1106 122 3000 Available to backorder	Spring	£2.74 £2.28
45	ST1106 129 3505 Available to backorder	Sealing ring	£6.89 £5.74
46	ST1108 122 6800 Available to backorder	Low speed screw	£11.75 £9.79
47	ST1108 122 6700 Available to backorder	High speed screw	£11.14 £9.28
48	ST6503 122 3020 Available to backorder	Spring	£2.36 £1.97
52	ST1108 122 3200 Available to backorder	Torsion spring	£1.26 £1.05
53	ST1108 120 7000 Available to backorder	Inlet control lever	£6.72 £5.60
54	ST9220 260 0900 In stock	Hexagon nut M6	£0.46 £0.38
55	ST1106 149 1200 In stock	Filter gasket	£1.94 £1.62
