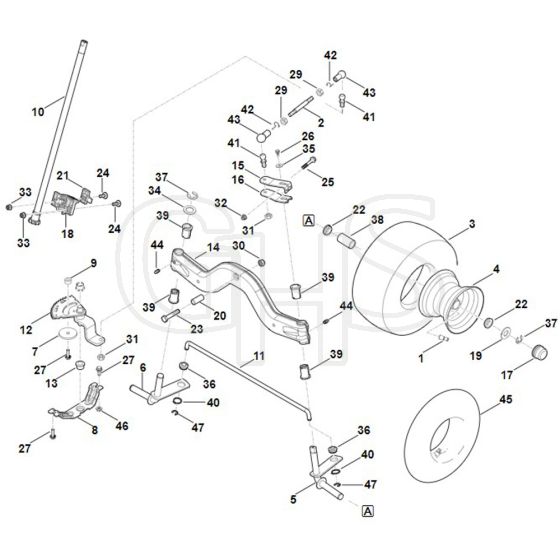

Stihl RT4082.0 - Steering, Front Wheel - Parts Diagram

Name: Stihl RT4082.0 - Steering, Front Wheel - Parts Diagram
SKU: rt4082_0_steering_front_wheel-group
Price: 0.33 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RT4082.0 - Steering, Front Wheel - Parts Diagram

Description

Stihl RT4082.0 - Steering, Front Wheel - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6140 700 0400	Wheel assy. 13" (Contains 1+3+4+22+38)	Out of stock	£86.40 £72.00
1	ST0000 731 7700	Valve	Out of stock	£8.56 £7.13
2	ST6140 703 1731	Rod	Out of stock	£36.73 £30.61
3	ST6140 704 9510	Tyre 13x5.0-6	Out of stock	£78.84 £65.70
4	ST6140 760 3910	Rim	Out of stock	£64.78 £53.98
5	ST6140 760 5001	Axle stub left	Out of stock	£60.37 £50.31
6	ST6140 760 5006	Axle stub right	Out of stock	£60.37 £50.31
7	ST6140 763 0900	Washer	Out of stock	£10.82 £9.02
8	ST6140 760 5201	Mounting (Contains 13)	Out of stock	£49.30 £41.08
9	ST6140 763 3400	Bushing	Out of stock	£6.14 £5.12
10	ST6140 700 2810	Shaft	Out of stock	£135.36 £112.80
11	ST6140 763 5701	Track rod	Out of stock	£58.98 £49.15
12	ST6140 780 3601	Toothed section	Out of stock	£61.37 £51.14
13	ST6170 162 3700	Bearing bushing	Out of stock	£6.67 £5.56
14	ST6165 700 2407	Axle (Contains 39+44)	Out of stock	£119.04 £99.20
15	ST6165 703 6730	Lever up	Out of stock	£14.45 £12.04
16	ST6165 703 6735	Lever down	Out of stock	£14.23 £11.86
17	ST6170 708 7420	Cap	Out of stock	£4.78 £3.98
18	ST6140 763 1300	Front bearing shell	Out of stock	£10.19 £8.49
19	ST6170 763 0910	Washer 42	Out of stock	£5.39 £4.49
20	ST6170 763 3010	Bearing bushing	Out of stock	£13.46 £11.22
21	ST6140 763 1305	Rear bearing shell	Out of stock	£3.41 £2.84
22	ST6170 764 2700	Collar bushing	Out of stock	£5.16 £4.30
23	ST9007 319 3080	Hexagon head screw M12x60	Out of stock	£2.29 £1.91
24	ST9027 319 1830	Flat head screw M8x25	Out of stock	£1.39 £1.16
25	ST9018 318 1960	Hexagon head screw M8x55	Out of stock	£2.29 £1.91
26	ST9039 488 0996	Self-tapping screw M6x12	Out of stock	£0.86 £0.72
27	ST9039 488 1839	Self-tapping screw M8x25	Out of stock	£2.29 £1.91
29	ST9210 261 1300	Hexagon nut M10	Out of stock	£1.00 £0.83
30	ST9212 263 1400	Hexagon nut M12	Out of stock	£1.39 £1.16
31	ST9212 263 1301	Hexagon nut M10x1	Out of stock	£1.00 £0.83
32	ST9216 261 1100	Hexagon nut M8	Out of stock	£0.86 £0.72
34	ST9291 021 0330	Washer 21	Out of stock	£0.86 £0.72
35	ST9307 021 0140	Washer 64	Out of stock	£0.40 £0.33
36	ST6140 760 5205	Mounting	Out of stock	£5.28 £4.40
37	ST9460 624 1500	E-clip 15	Out of stock	£0.50 £0.42
38	ST9512 003 4660	Needle roller and cage 20x30x65	Out of stock	£6.95 £5.79
39	ST6165 763 3011	Bearing bushing	Out of stock	£13.84 £11.53
40	ST9455 621 2790	Circlip 25x12	Out of stock	£1.15 £0.96
41	ST9666 003 5114	Ball stud M10x1 C16	Out of stock	£9.72 £8.10
42	ST9666 003 7016	Circlip	Out of stock	£1.90 £1.58
43	ST9666 003 7024	Ball socket B16	Out of stock	£13.20 £11.00
44	ST9794 003 1851	Grease Nipple M6	Out of stock	£2.29 £1.91
45	ST0000 704 6790	Hose 13x50 - 6	Out of stock	£26.05 £21.71
46	ST9220 263 1100	Hexagon nut M8	Out of stock	£0.86 £0.72
47	ST9460 624 1001	E-clip 10	In stock	£0.43 £0.36
