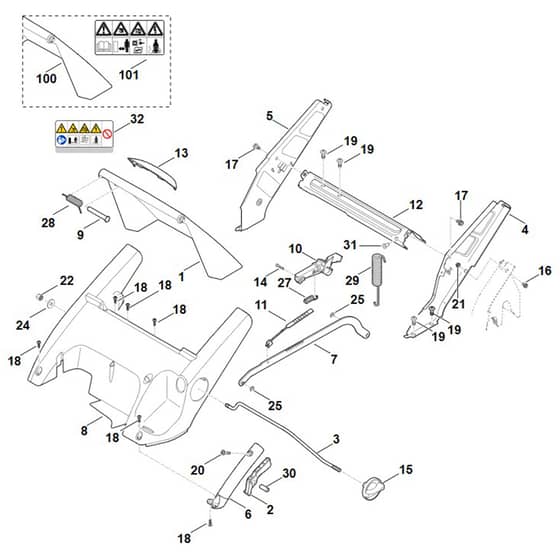

Stihl RME545.0 C - Frame, Height Adjustment - Parts Diagram

Description

Stihl RME545.0 C - Frame, Height Adjustment - Parts Diagram

	Part No.	Details
2	ST6340 700 7000 Available to backorder	Lever (Contains 30)	£6.25 £5.21
3	ST6340 703 1700 Available to backorder	Rod	£34.37 £28.64
4	ST6340 760 4291 Available to backorder	Bracket left (Contains 20)	£55.76 £46.47
5	ST6340 703 6205 Available to backorder	Bracket right	£52.68 £43.90
6	ST6340 703 6600 Available to backorder	Knob	£14.69 £12.24
7	ST6340 780 0400 Available to backorder	Translation lever assy.	£42.23 £35.19
8	ST6340 706 0704 In stock	Cover	£45.29 £37.74
9	ST6340 706 5901 Available to backorder	Bolt	£5.69 £4.74
10	ST6340 780 3190 Available to backorder	Notched quadrant (Contains 14)	£8.88 £7.40
11	ST6340 763 2000 Available to backorder	Pointer	£1.72 £1.43
12	ST6340 763 4501 Available to backorder	Strud	£53.48 £44.57
13	ST6340 706 6710 Available to backorder	Handle molding	£14.00 £11.67
14	ST6375 708 8400 Available to backorder	Screw M4x20	£1.72 £1.43
15	ST6375 760 1800 In stock	Rotary handle assy.	£11.08 £9.23
16	ST9008 319 1260 Available to backorder	Hexagon head screw M6x12	£0.79 £0.66
17	ST9039 488 1230 Available to backorder	Self-tapping screw M6x8	£0.77 £0.64
17	ST9039 488 1266 In stock	Self-tapping screw M6x12	£0.79 £0.66
18	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
19	ST9104 007 9975 Available to backorder	Self-tapping screw P8x18	£1.03 £0.86
20	ST9070 010 1050 Available to backorder	Screw TT-M5x28	£1.03 £0.86
21	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
22	ST9241 288 1980 Available to backorder	Cap nut M8	£0.79 £0.66
24	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
25	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
27	ST6375 703 5111 Available to backorder	Tension spring	£2.15 £1.79
28	ST6340 708 4505 Available to backorder	Torsion spring	£4.32 £3.60
29	ST6340 703 5100 Available to backorder	Tension spring	£14.44 £12.03
101	ST0000 967 7217 Available to backorder	Warning note	£2.15 £1.79
