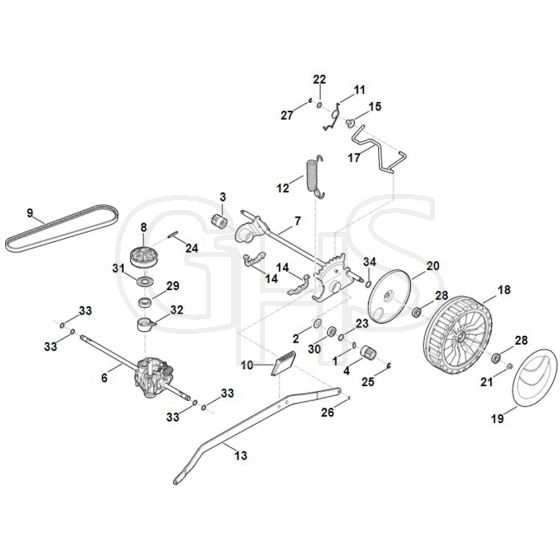

Stihl RM655.1 VS - Shaft, Gear Box - Parts Diagram

Description

Stihl RM655.1 VS - Shaft, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 704 8300 Out of stock	Freewheel key	£1.90 £1.58
2	ST6103 704 7910 Out of stock	Protection disk	£1.26 £1.05
3	ST6105 704 7400 In stock	Pinion	£15.12 £12.60
4	ST6105 704 7410 Out of stock	Pinion	£15.24 £12.70
6	ST6374 640 0120 Out of stock	Gear box assy. (Contains 8+24+29+31+32)	£135.36 £112.80
7	ST6364 700 2410 Out of stock	Rear axle	£65.40 £54.50
8	ST6374 700 2500 Out of stock	V-belt pulley assy. (Contains 29+31+32)	£41.15 £34.29
9	ST6364 704 2100 In stock	V-belt	£22.08 £18.40
10	ST6364 703 4000 In stock	Clips (cutting height indicator)	£5.52 £4.60
11	ST6364 703 4900 Out of stock	Torsion spring	£2.36 £1.97
12	ST6364 703 5100 Out of stock	Tension spring	£22.74 £18.95
13	ST6374 703 8800 Out of stock	Translation lever	£62.40 £52.00
14	ST6364 704 1210 In stock	Rear axle bracket	£4.28 £3.57
15	ST6364 763 3010 Out of stock	Bearing bushing	£7.04 £5.87
17	ST6364 763 6000 Out of stock	Interlock lever	£24.02 £20.02
18	ST6375 700 0402 Out of stock	Wheel assy. 230 (Contains 20+28)	£52.94 £44.12
19	ST6375 704 0311 Out of stock	Wheel cap	£10.69 £8.91
20	ST6375 704 3611 Out of stock	Cover	£13.84 £11.53
21	ST9216 261 1100 Out of stock	Hexagon nut M8	£0.86 £0.72
22	ST9291 021 0160 Out of stock	Washer 7.4	£0.40 £0.33
23	ST9296 021 1608 Out of stock	Washer 12x18x0.5	£0.61 £0.51
24	ST9380 620 2730 Out of stock	Roll pin 5x36	£1.00 £0.83
25	ST9460 624 1001 In stock	E-clip 10	£0.43 £0.36
26	ST9460 624 0500 Out of stock	E-clip 5	£0.48 £0.40
28	ST9503 003 5297 Out of stock	Grooved ball bearing 6001-2TRS	£5.75 £4.79
33	ST9645 945 0755 Out of stock	O-ring 9x18	£0.64 £0.53
34	ST9294 021 0270 Out of stock	Washer 17	£0.76 £0.63
