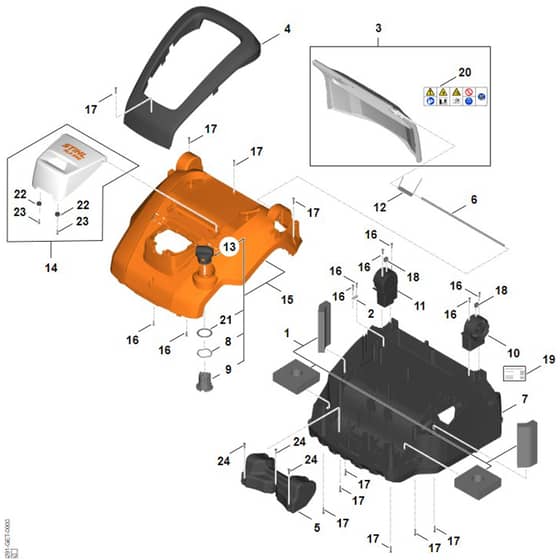

Stihl RLA240.0 - Housing - Parts Diagram

Description

	Part No.	Details
1	ST6291 007 1090 Available to backorder	Filter set	£6.82 £5.68
2	ST6291 448 1300 Available to backorder	Strain relief	£3.40 £2.83
3	ST6291 820 1905 Available to backorder	Flap (Contains 20)	£36.30 £30.25
4	ST6291 711 4400 Available to backorder	Knob	£22.12 £18.43
6	ST6291 711 0900 Available to backorder	Axle	£11.56 £9.63
7	ST6291 713 3700 Available to backorder	Housing	£74.80 £62.33
8	ST6291 716 0100 Available to backorder	Spring washer	£1.10 £0.92
9	ST6291 716 0300 Available to backorder	Nut	£5.28 £4.40
10	ST6291 716 2500 Available to backorder	Bracket (left)	£25.52 £21.27
11	ST6291 716 2505 Available to backorder	Bracket (right)	£25.30 £21.08
12	ST6291 716 5600 Available to backorder	Torsion spring	£2.74 £2.28
13	ST6291 716 6000 Available to backorder	Rotary handle	£13.30 £11.08
14	ST6291 820 1900 Available to backorder	Flap assembly (battery compartment) (Contains 22 + 23)	£13.76 £11.47
15	ST6291 740 3000 Available to backorder	Housing assy. (Contains 8 + 9 + 13 + 21)	£70.40 £58.67
16	ST6291 951 3540 Available to backorder	Screw 4x16	£1.54 £1.28
18	ST6291 955 1000 Available to backorder	Square nut	£1.32 £1.10
19	ST0000 967 3454 Available to backorder	Warning sign with machine number	£2.08 £1.73
21	ST6291 716 0200 Available to backorder	Washer	£1.54 £1.28
22	ST0000 405 0701 Available to backorder	Magnet	£6.28 £5.23
