Stihl RGA140 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

Stihl RGA140 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

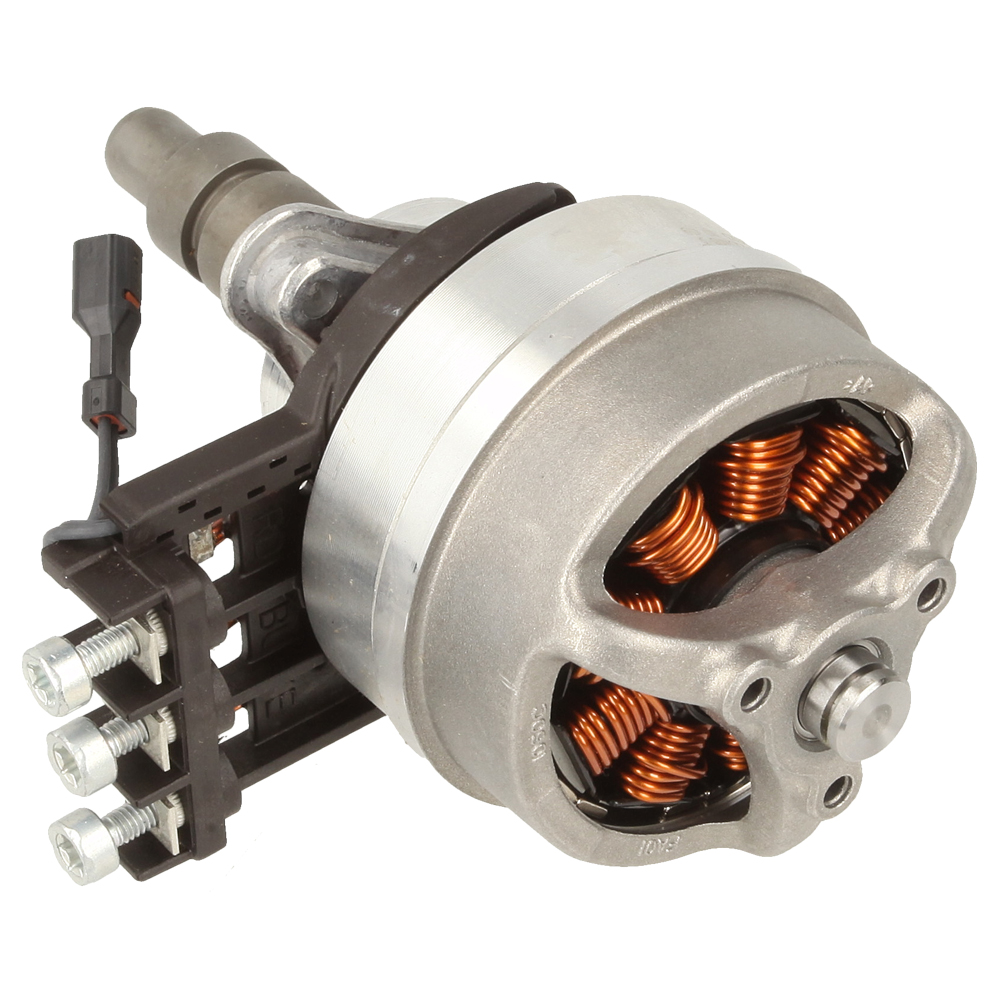

1	STFA01 600 0203 Available to backorder	Electric motor (Contains 2+ 23)	£160.56 £133.80
2	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.76 £0.63

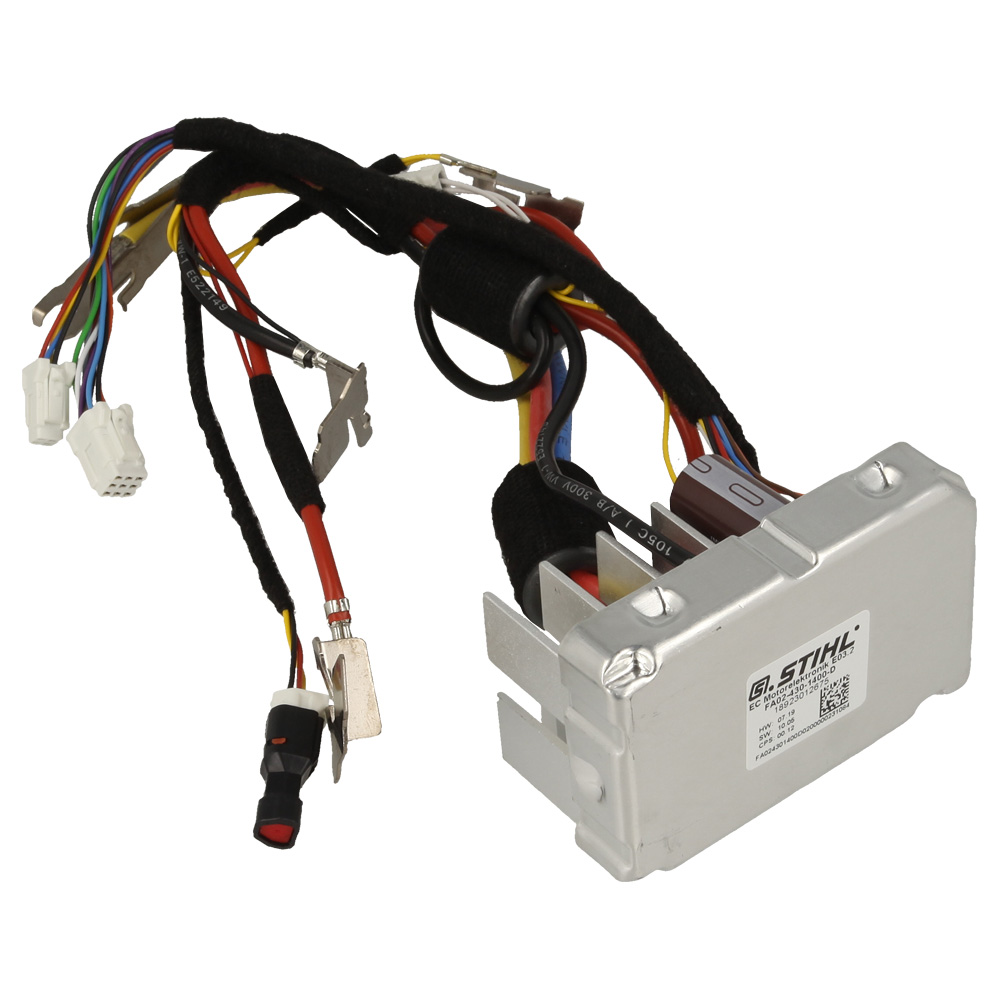

3	STFA02 430 1400 Available to backorder	Electronic module (Contains 4)	£166.10 £138.42
4	STFA01 404 0800 Available to backorder	Contact plate	£12.88 £10.73
5	STMA01 791 3100 Available to backorder	Spring	£2.32 £1.93
6	STFA01 820 8100 Available to backorder	Spiral housing (Contains 45511)	£21.22 £17.68
7	STFA01 602 0300 Available to backorder	Spiral housing	£14.30 £11.92
8	STFA01 706 3400 Available to backorder	Cover	£5.18 £4.32
9	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.76 £0.63
10	STFA01 600 3200 Available to backorder	Fan wheel (Contains 11)	£8.14 £6.78
11	ST9460 624 0800 Available to backorder	E-clip 8	£0.48 £0.40
12	STFA02 600 0803 Available to backorder	Motor housing (Contains 13)	£109.46 £91.22
13	STFA01 084 0900 Available to backorder	Shroud	£26.62 £22.18
14	STFA02 967 1503 Available to backorder	Model plate	£4.52 £3.77

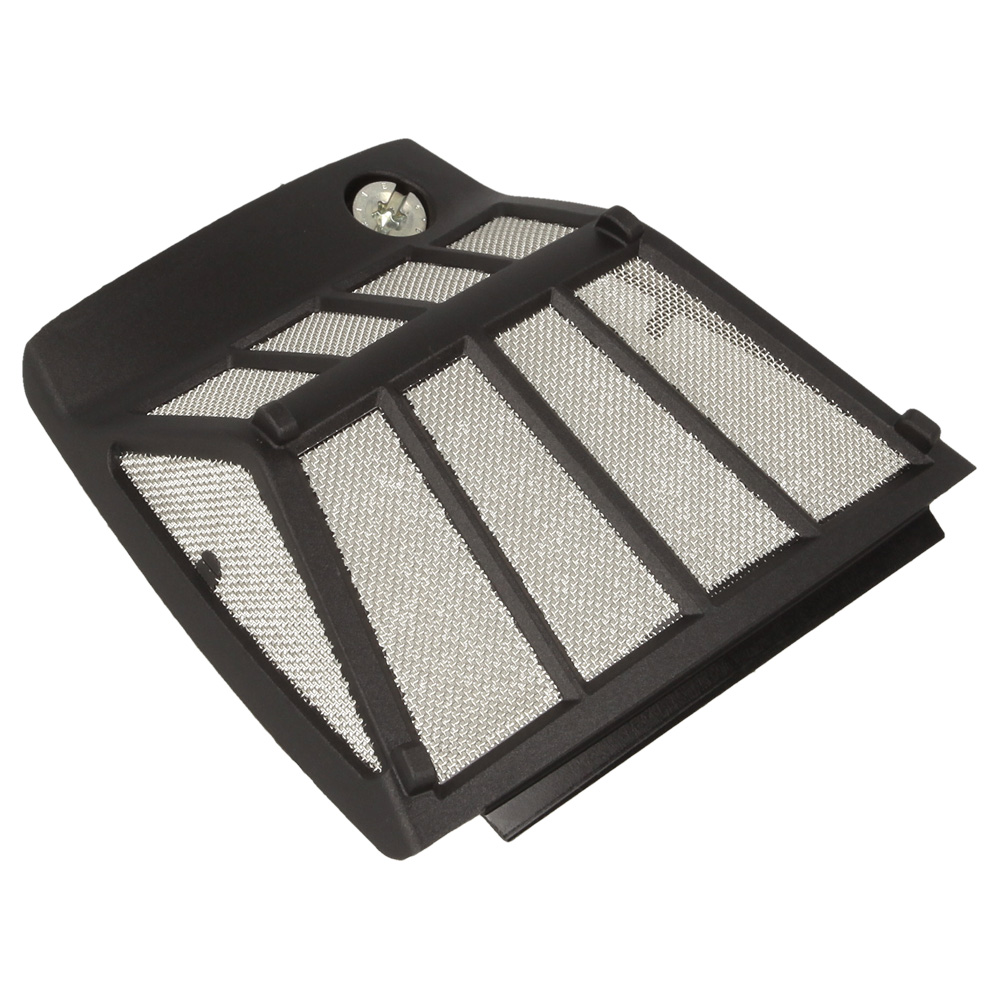

15	STFA01 080 1900 Available to backorder	Filter (Contains 16)	£16.18 £13.48
16	ST9022 319 1028 In stock	Screw IS-M5x14	£0.76 £0.63
17	STFA01 820 8000 Available to backorder	Cover	£5.18 £4.32
18	STFA01 600 3401 Available to backorder	Flange (Contains 19 + 20)	£40.04 £33.37
19	ST9291 021 0140 In stock	Washer 6.4	£0.36 £0.30
20	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.22 £1.02
21	STFA01 007 1000 Available to backorder	Screw kit (Contains 22)	£10.24 £8.53
22	ST0000 951 1100 In stock	Screw	£1.54 £1.28

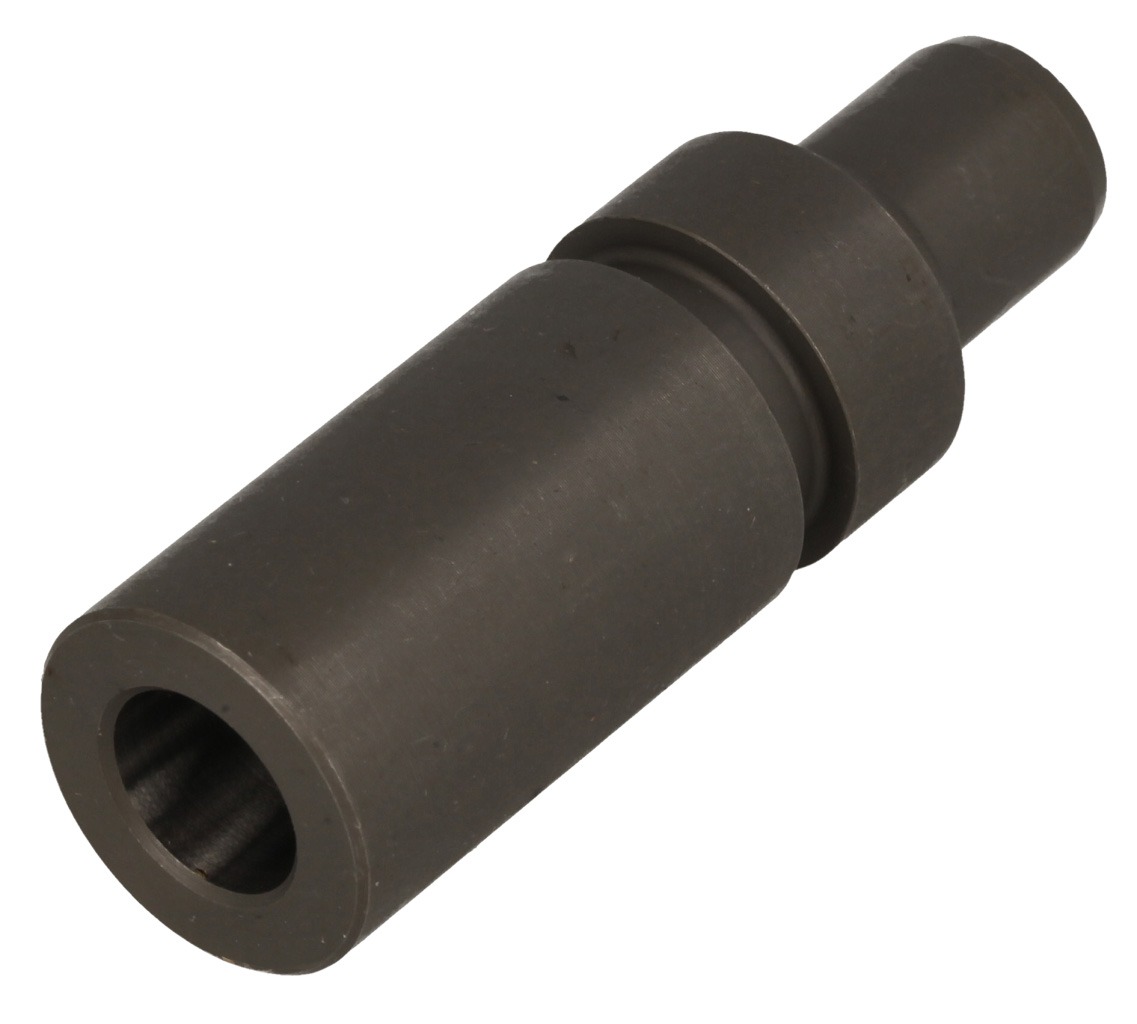

23	STFA01 764 4200 Available to backorder	Carrier	£15.18 £12.65
24	ST4851 430 9800 Available to backorder	Trigger interlock	£4.96 £4.13
25	STFA01 790 1300 Available to backorder	Control handle (Contains 26 - 31)	£104.50 £87.08

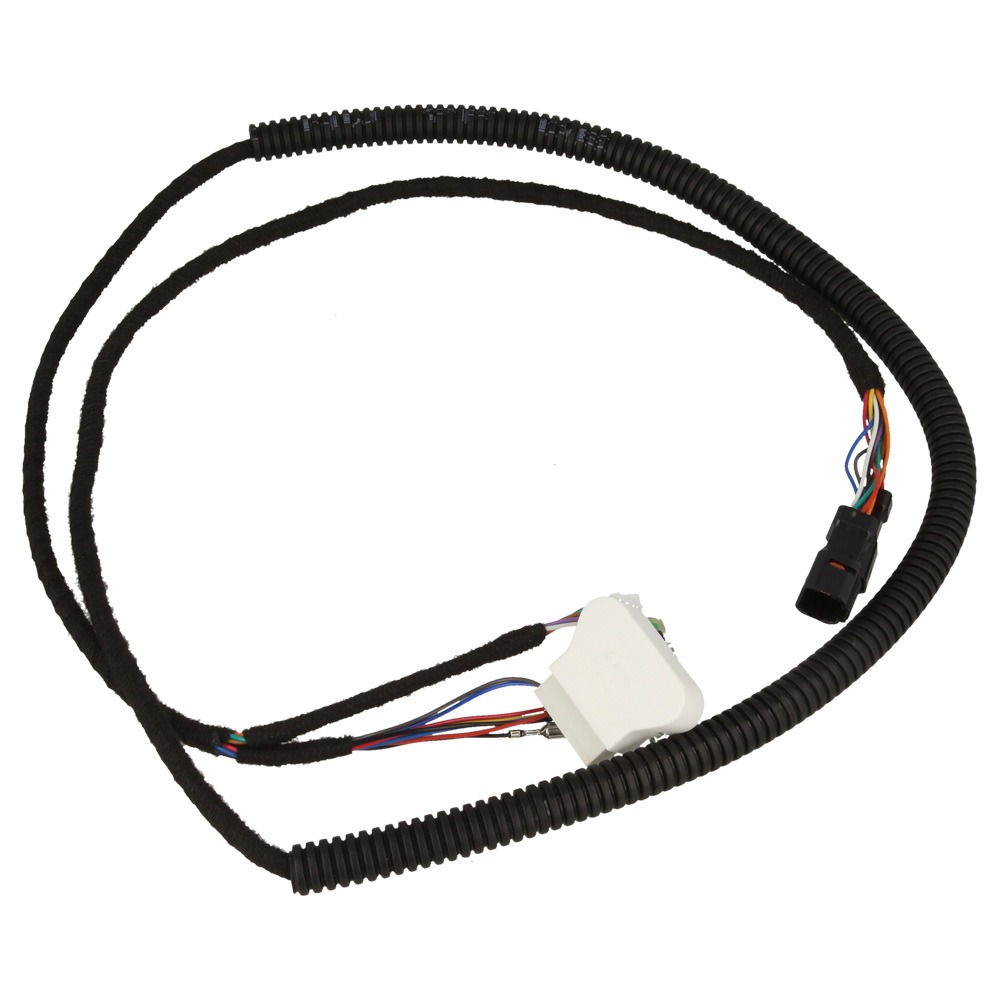

26	STFA01 440 3003 Available to backorder	Wiring harness	£29.38 £24.48
27	STFA01 430 0501 Available to backorder	Switch (Contains 28)	£14.52 £12.10

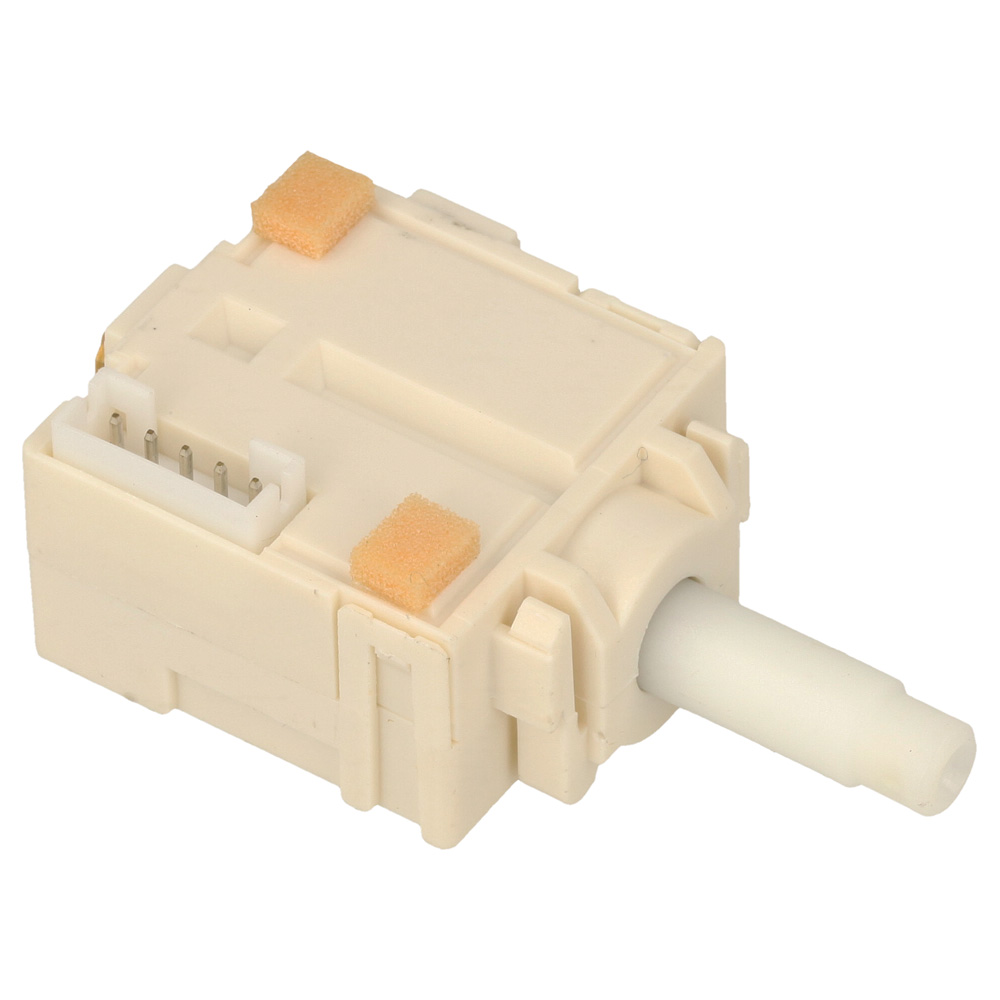

28	STFA01 430 0502 Available to backorder	Switch	£10.46 £8.72
29	STBA01 430 0500 Available to backorder	Switch	£2.98 £2.48
30	ST9074 478 3025 Available to backorder	Pan head screw IS P4x16	£1.20 £1.00
31	ST9022 341 1220 In stock	Spline screw IS-M5x48	£1.32 £1.10
32	ST9214 320 0700 In stock	Lock nut M5	£0.44 £0.37
33	STFA01 007 3800 Available to backorder	Control lever kit (Contains 34)	£13.86 £11.55
34	STFA01 007 1300 Available to backorder	Set of mounting hardware	£3.08 £2.57
35	ST4147 790 1704 Available to backorder	Handlebar (Contains 36)	£47.08 £39.23
36	ST4147 791 0302 Available to backorder	Handle	£19.90 £16.58
37	ST0000 997 1701 In stock	Compression spring	£1.54 £1.28
38	ST0000 997 1304 Available to backorder	Compression spring	£1.32 £1.10
39	ST4128 790 7501 In stock	Tommy screw (Contains 40)	£5.18 £4.32
41	ST4128 790 4800 In stock	Clamp	£17.06 £14.22

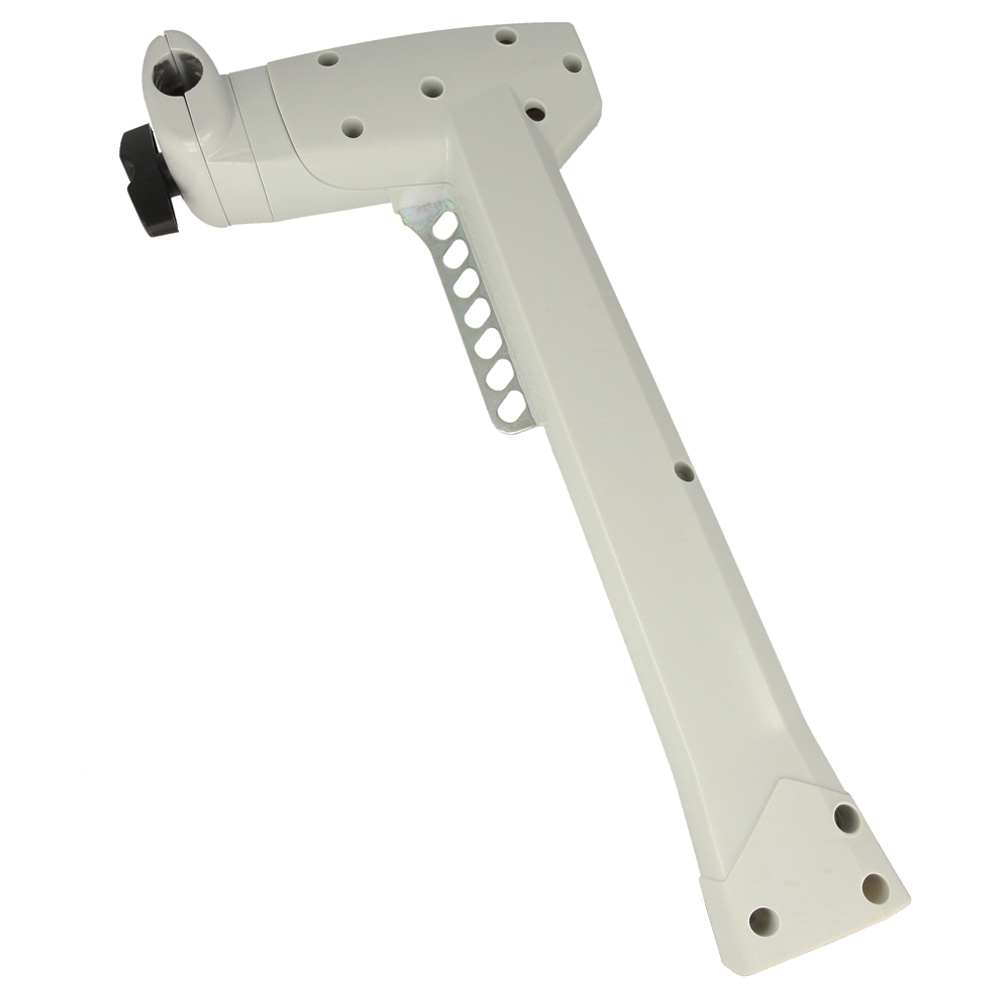

42	STFA01 790 1400 Available to backorder	Housing	£45.22 £37.68
43	ST4850 602 0900 Available to backorder	Cover	£4.52 £3.77
