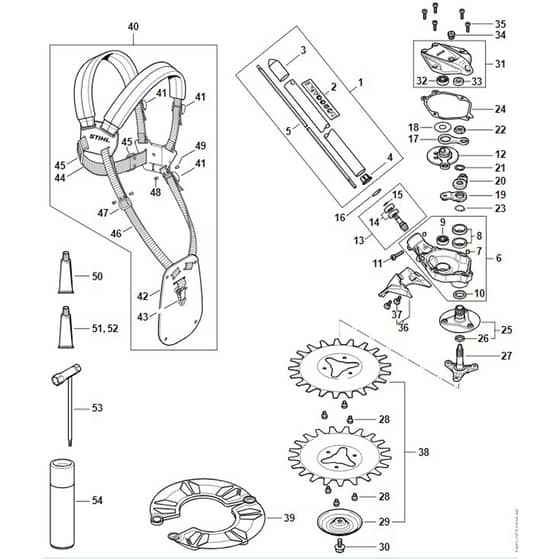

Stihl RGA140 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Name: Stihl RGA140 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram
SKU: rga140_drive_tube_assembly_gear_head_deflector-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RGA140 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Description

Stihl RGA140 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STFA02 710 7103 Available to backorder	Drive tube assembly 25.4 mm x 1 mm (Contains 2 - 5)	£95.70 £79.75
2	ST0000 967 7410 Available to backorder	Warning pictogram RGA	£2.08 £1.73
3	ST4133 717 2000 In stock	Cap	£2.20 £1.83
4	ST4137 711 2101 In stock	Plug	£0.76 £0.63
5	ST4137 711 3200 In stock	Drive shaft	£49.28 £41.07
6	ST4180 640 0500 Available to backorder	Gear housing (Contains 7 - 10)	£82.50 £68.75
7	ST0000 988 8600 In stock	Sleeve	£1.10 £0.92
8	ST9503 003 4937 Available to backorder	Grooved ball bearing DIN625-61804-ZZ	£10.90 £9.08
10	ST9630 003 3195 Available to backorder	Oil seal 28x22x4	£9.46 £7.88
11	ST9022 341 1358 Available to backorder	Spline screw IS-M6x28	£1.00 £0.83
12	ST4180 640 1600 Available to backorder	Cam	£68.74 £57.28
13	ST4180 640 2503 Available to backorder	Drive pinion (Contains 14 + 15)	£20.56 £17.13
14	ST9503 003 9853 Available to backorder	Grooved ball bearing 609-2Z	£11.98 £9.98
15	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
16	ST9456 621 2660 In stock	Circlip 24x1.2	£1.00 £0.83
17	ST4180 642 6500 Available to backorder	Connecting rod	£22.54 £18.78
18	ST4180 642 8700 Available to backorder	Thrust washer	£1.54 £1.28
19	ST4180 643 0100 Available to backorder	Lever	£29.14 £24.28
20	ST4180 643 0101 Available to backorder	Lever	£29.14 £24.28
22	ST0000 995 0807 Available to backorder	Collar nut M10x0.75	£2.54 £2.12
24	ST4180 649 0300 Available to backorder	Gasket	£1.32 £1.10
25	ST4180 740 6400 Available to backorder	Hub (Contains 26)	£36.74 £30.62
26	ST9630 003 2400 Available to backorder	Oil seal 21x15x3 V3 RG	£6.50 £5.42
27	ST4180 713 4802 Available to backorder	Hub bottom	£34.32 £28.60
29	ST4180 713 3101 Available to backorder	Rider plate	£8.02 £6.68
30	ST0000 951 0901 Available to backorder	Hexagon head screw M8x20 left	£5.18 £4.32
31	ST4180 640 5800 Available to backorder	Gearbox cover (Contains 32 + 33)	£50.92 £42.43
32	ST9503 003 0061 Available to backorder	Grooved ball bearing DIN625-629-C3	£11.44 £9.53
33	ST9503 003 9673 Available to backorder	Grooved ball bearing DIN625-608-ZZ	£11.66 £9.72
34	ST4119 713 6500 In stock	Plug screw	£3.08 £2.57
35	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.89 £0.74
36	ST4180 820 1000 Available to backorder	Support foot (Contains 37)	£14.42 £12.02
37	ST9022 319 0981 In stock	Screw IS-M5x17	£0.88 £0.73
38	ST4180 007 4100 Available to backorder	Servicing kit RG / RG-KM (Contains 29)	£80.30 £66.92
39	ST0000 790 3901 Available to backorder	Transport guard	£28.94 £24.12
40	ST4119 710 9001 Available to backorder	Full harness (Contains 41 - 49)	£57.20 £47.67
41	ST4203 792 7200 Available to backorder	Slide	£2.98 £2.48
42	ST4119 718 7400 Available to backorder	Guard plate	£11.66 £9.72
43	ST4147 710 6900 Available to backorder	Spring safety hook	£12.64 £10.53
45	ST4119 718 6300 Available to backorder	Slide	£1.00 £0.83
47	ST4119 718 6310 Available to backorder	Slide	£1.10 £0.92
48	ST9408 021 4530 Available to backorder	Rivet shank 4x8x6	£0.88 £0.73
49	ST9409 021 4420 Available to backorder	Rivet head 4x8	£0.88 £0.73
50	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£9.12 £7.60
51	ST0781 120 1118 In stock	Gear lubricant 225 g	£20.48 £17.07
52	ST0781 120 1117 In stock	Gearbox grease (80g tube)	£8.42 £7.02
53	ST4180 890 3400 Available to backorder	Combination wrench	£9.02 £7.52
