Stihl MSA300.0 - Electric Motor - Electronic Module - Oil Tank - Parts Diagram

Description

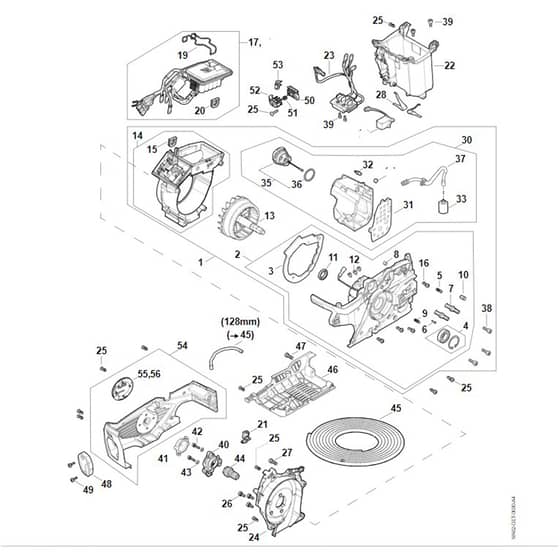

Stihl MSA300.0 - Electric Motor - Electronic Module - Oil Tank - Parts Diagram

	Part No.	Details
1	STMA02 600 4900 Available to backorder	Electric motor with housing (Contains 2 - 16+ 30 - 38)	£253.20 £211.00
3	STMA02 029 0501 Available to backorder	Gasket	£2.63 £2.19
4	STMA02 007 1001 Available to backorder	Ball bearing kit	£15.12 £12.60
5	ST1121 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
6	ST0000 974 1200 In stock	Notched pin 2.6x8	£0.68 £0.57
7	ST0000 664 2406 In stock	Collar screw M8	£3.65 £3.04
8	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99
9	ST1120 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
10	ST1128 640 9100 In stock	Valve	£4.72 £3.93
11	ST9503 003 8759 Available to backorder	Grooved ball bearing DIN625-6803-2RS	£9.11 £7.59
12	ST9022 313 0610 In stock	Spline screw IS-M4x6	£0.68 £0.57
14	STMA02 600 4403 Available to backorder	Spiral housing (Contains 15)	£27.54 £22.95
15	STMA02 432 9300 Available to backorder	Grommet	£2.28 £1.90
16	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
17	STMA02 430 1402 Available to backorder	Electronic module (Contains 19 + 20)	£268.32 £223.60
19	STMA02 405 7600 Available to backorder	Spring	£1.72 £1.43
21	STMA02 430 0503 Available to backorder	Switch	£3.77 £3.14
22	STMA02 400 9400 Available to backorder	Battery compartment	£34.92 £29.10
23	STMA02 440 3005 Available to backorder	Wiring harness	£30.49 £25.41
24	STMA02 600 4400 Available to backorder	Spiral housing	£21.17 £17.64
26	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.95 £0.79
27	ST9022 313 0651 Available to backorder	Spline screw IS-M4x10	£0.79 £0.66
28	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
30	STMA02 350 0301 Available to backorder	Oil tank (Contains 31 - 37)	£45.97 £38.31
31	STMA02 029 0500 Available to backorder	Gasket	£2.15 £1.79
32	ST0000 988 5224 Available to backorder	Connector	£3.08 £2.57
33	STMA01 640 3801 Available to backorder	Pickup body	£5.00 £4.17
35	ST0000 350 0529 In stock	Filler cap (Contains 36)	£9.80 £8.17
36	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
37	STMA02 647 9402 Available to backorder	Hose	£5.92 £4.93
39	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.83 £0.69
40	STMA02 640 3200 Available to backorder	Oil pump	£96.84 £80.70
41	STMA02 641 7400 Available to backorder	Cap	£3.52 £2.93
42	ST9022 313 0679 In stock	Spline screw IS-M4x16	£0.79 £0.66
43	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
44	STMA02 647 2000 Available to backorder	Worm	£4.88 £4.07
45	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£4.24 £3.53
46	STMA02 798 2200 Available to backorder	Base plate	£11.51 £9.59
48	STMA02 084 1600 Available to backorder	Cover	£2.96 £2.47
49	ST9074 477 2980 Available to backorder	Pan head self-tapping screw IS-P4x12	£0.79 £0.66
50	STMA02 432 1200 Available to backorder	Housing	£4.45 £3.71
51	ST0000 997 0629 Available to backorder	Compression spring	£1.14 £0.95
52	STMA02 435 0200 Available to backorder	Pushbutton switch	£2.05 £1.71
53	STMA02 430 0501 Available to backorder	Switch	£2.83 £2.36
54	STMA02 600 0802 Available to backorder	Motor housing (Contains 55 + 56)	£38.23 £31.86
55	STMA02 967 1500 Available to backorder	Model plate MSA 300	£4.68 £3.90
56	STMA02 967 1501 Available to backorder	Model plate MSA 300 C	£4.68 £3.90
