Stihl MSA220.0 TC-O - Electric Motor - Electronic Module - Handle Housing - Parts Diagram

Name: Stihl MSA220.0 TC-O - Electric Motor - Electronic Module - Handle Housing - Parts Diagram
SKU: msa220_0_tc_o_electric_motor_handle_housing-group
Price: 0.57 GBP
Availability: InStock

Part No. msa220_0_tc_o_electric_motor_handle_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

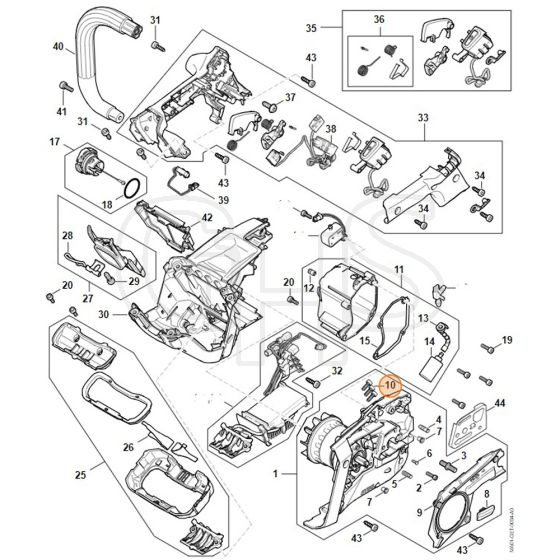

Stihl MSA220.0 TC-O - Electric Motor - Electronic Module - Handle Housing - Parts Diagram

Description

Stihl MSA220.0 TC-O - Electric Motor - Electronic Module - Handle Housing - Parts Diagram

	Part No.	Details
1	STMA01 600 4900 Available to backorder	Electric motor with housing (Contains 2 - 10)	£217.44 £181.20
2	ST1143 664 2402 Available to backorder	Collar screw M5	£2.28 £1.90
4	ST1121 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
5	ST1120 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
6	ST0000 974 1200 In stock	Notched pin 2.6x8	£0.68 £0.57
7	ST9416 868 5631 Available to backorder	Hollow rivet 5.5x0.5x6.8	£1.26 £1.05
8	ST1123 648 6600 Available to backorder	Bumper strip	£2.02 £1.68
9	STMA01 021 1100 Available to backorder	Cover	£3.86 £3.22
10	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
11	STMA01 350 0301 Available to backorder	Oil tank (Contains 12 - 15)	£27.77 £23.14
12	ST1128 640 9100 In stock	Valve	£4.72 £3.93
13	STMA01 647 9400 Available to backorder	Hose	£5.36 £4.47
14	STMA01 640 3801 Available to backorder	Pickup body	£5.00 £4.17
15	STMA01 669 0500 Available to backorder	Gasket	£1.37 £1.14
17	ST0000 350 0538 Available to backorder	Filler cap (Contains 18)	£9.46 £7.88
18	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
19	ST9022 313 0682 Available to backorder	Spline screw IS-M4x16	£0.79 £0.66
23	STMA01 430 1404 Available to backorder	Electronic module	£216.36 £180.30
25	STMA01 400 0601 Available to backorder	Contact plate (Contains 26)	£15.71 £13.09
26	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
27	STMA01 790 5400 Available to backorder	Bracket (Contains 28 + 29)	£8.54 £7.12
28	STMA01 352 5000 Available to backorder	Loop	£6.25 £5.21
29	ST9074 478 4425 In stock	Pan head self-tapping screw IS-P6x19	£0.92 £0.77
30	STMA01 600 0800 Available to backorder	Motor housing	£62.03 £51.69
31	ST9074 478 4130 Available to backorder	Screw IS P5x16	£0.91 £0.76
33	STMA01 790 1001 Available to backorder	Handle housing (Contains 34 - 38)	£86.40 £72.00
35	STMA01 007 1002 Available to backorder	Trigger kit (Contains 36)	£73.20 £61.00
37	ST9074 478 4420 In stock	Pan head self-tapping screw IS-P6x18	£0.95 £0.79
38	STMA01 430 2200 Available to backorder	Wiring harness	£22.43 £18.69
39	STMA01 430 0500 Available to backorder	Switch	£3.77 £3.14
40	STMA01 791 1700 Available to backorder	Handlebar	£22.31 £18.59
41	ST9022 341 0975 In stock	Spline screw IS-M5x14	£0.79 £0.66
42	STMA01 606 2000 Available to backorder	Air strainer	£17.29 £14.41
44	STMA01 664 1000 Available to backorder	Side plate	£2.15 £1.79
