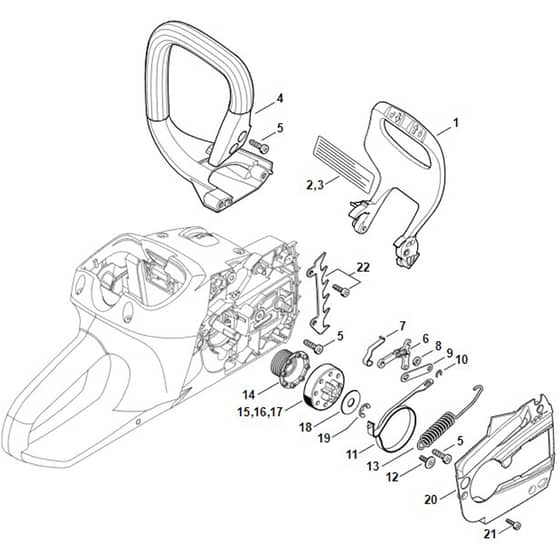

Stihl MSA200 C-B - Hand Guard - Chain Brake - Parts Diagram

Name: Stihl MSA200 C-B - Hand Guard - Chain Brake - Parts Diagram
SKU: msa200_c_b_hand_guard_chain_brake-group
Price: 0.3 GBP
Availability: InStock

Part No. msa200_c_b_hand_guard_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA200 C-B - Hand Guard - Chain Brake - Parts Diagram

Description

Stihl MSA200 C-B - Hand Guard - Chain Brake - Parts Diagram

	Part No.	Details
-1	ST1251 660 0800 Available to backorder	Bumper spike (Contains 22 + 23)	£4.88 £4.07
1	ST1251 792 4900 Available to backorder	Hand guard	£22.88 £19.07
4	STMA03 791 1700 Available to backorder	Handlebar	£33.80 £28.17
5	ST9074 478 4425 In stock	Pan head self-tapping screw IS-P6x19	£0.92 £0.77
6	ST1121 160 5000 Available to backorder	Lever	£7.12 £5.93
7	ST1123 162 7800 In stock	Flat spring	£1.43 £1.19
9	ST1123 162 5800 In stock	Strap	£1.79 £1.49
10	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
11	ST1250 160 5400 Available to backorder	Brake band	£8.09 £6.74
12	ST0000 951 1105 Available to backorder	Screw IS-P5x14-T27	£1.60 £1.33
13	ST1250 162 7900 Available to backorder	Tension spring	£3.19 £2.66
14	ST1250 640 7101 In stock	Worm	£5.42 £4.52
15	ST1250 642 1200 Available to backorder	Chain sprocket 1/4"P 7T	£19.22 £16.02
16	ST1251 642 1200 In stock	Chain sprocket 1/4" Picco 6T	£17.80 £14.83
17	ST1250 642 1201 Available to backorder	Chain sprocket 3/8" Picco 6T	£19.22 £16.02
18	ST0000 958 0506 In stock	Washer	£1.79 £1.49
19	ST9460 624 0801 In stock	E-clip 8x13	£0.36 £0.30
20	ST1251 021 1101 In stock	Cover	£6.73 £5.61
21	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
22	ST1123 664 0500 In stock	Bumper spike	£4.01 £3.34
23	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
