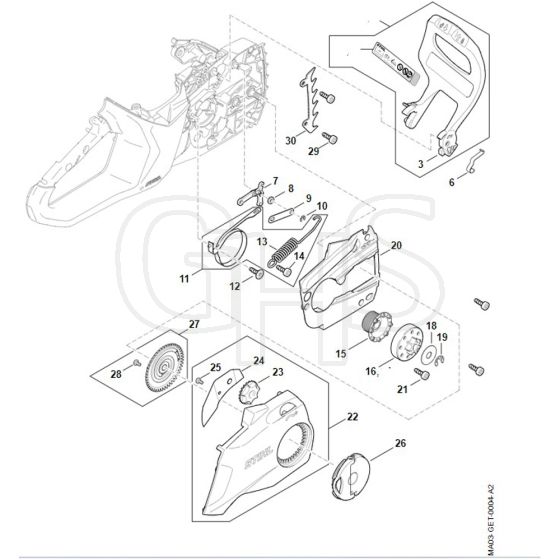

Stihl MSA200.0 C-B - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram

Name: Stihl MSA200.0 C-B - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram
SKU: msa200_0_c_b_hand_guard_chain_brake_chain_tensioner-group
Price: 0.3 GBP
Availability: InStock

Part No. msa200_0_c_b_hand_guard_chain_brake_chain_tensioner-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA200.0 C-B - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram

Description

Stihl MSA200.0 C-B - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram

	Part No.	Details
3	ST1251 792 4900 Available to backorder	Hand guard	£22.88 £19.07
6	ST1123 162 7800 In stock	Flat spring	£1.43 £1.19
7	ST1121 160 5000 Available to backorder	Lever	£7.12 £5.93
8	ST0000 958 0521 Available to backorder	Washer	£1.14 £0.95
9	ST1123 162 5800 In stock	Strap	£1.79 £1.49
10	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
11	STMA03 007 1000 Available to backorder	Set of chain brake parts (Contains 14 + 15)	£8.54 £7.12
12	ST9074 478 4425 In stock	Pan head self-tapping screw IS-P6x19	£0.92 £0.77
13	ST1250 162 7900 Available to backorder	Tension spring	£3.19 £2.66
14	ST0000 951 1105 Available to backorder	Screw IS-P5x14-T27	£1.60 £1.33
15	ST1250 640 7101 In stock	Worm	£5.42 £4.52
16	ST1250 642 1200 Available to backorder	Chain sprocket 1/4"P 7T	£19.22 £16.02
18	ST0000 958 0506 In stock	Washer	£1.79 £1.49
19	ST9460 624 0801 In stock	E-clip 8x13	£0.36 £0.30
20	STMA03 021 1100 Available to backorder	Cover	£9.23 £7.69
21	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
22	STMA04 640 1710 Available to backorder	Chain sprocket cover (Contains 23 - 25)	£23.32 £19.43
23	ST1123 648 2202 In stock	Adjusting wheel	£4.01 £3.34
24	ST1123 648 3800 Available to backorder	Cover plate	£6.14 £5.12
25	ST9104 003 8600 In stock	Self-tapping screw P3x10	£0.79 £0.66
26	ST1121 660 1000 In stock	Wing nut	£16.04 £13.37
27	ST1123 660 3001 In stock	Tensioning gear (Contains 28)	£19.00 £15.83
28	ST9041 319 0600 In stock	Pan head screw M4x5	£0.72 £0.60
29	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
30	ST1123 664 0500 In stock	Bumper spike	£4.01 £3.34
