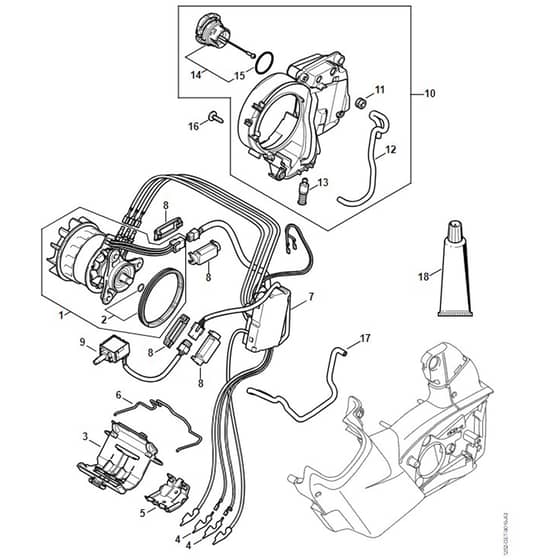

Stihl MSA161 T - Electric Motor - Electronic Module - Oil Tank - Parts Diagram

Name: Stihl MSA161 T - Electric Motor - Electronic Module - Oil Tank - Parts Diagram
SKU: msa161_t_electric_motor_oil_tank-group
Price: 0.6 GBP
Availability: InStock

Part No. msa161_t_electric_motor_oil_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA161 T - Electric Motor - Electronic Module - Oil Tank - Parts Diagram

Description

Stihl MSA161 T - Electric Motor - Electronic Module - Oil Tank - Parts Diagram

	Part No.	Details
1	ST1252 600 0203 Available to backorder	Electric motor (Contains 2)	£188.16 £156.80
2	ST1252 640 7100 Available to backorder	Worm gear	£21.74 £18.12
3	ST1252 404 0800 Available to backorder	Contact plate	£6.37 £5.31
4	ST1252 431 2100 In stock	Connector tag	£1.60 £1.33
5	ST1252 404 0801 Available to backorder	Contact plate	£3.31 £2.76
6	ST1252 791 3100 Available to backorder	Spring	£1.72 £1.43
7	ST1252 430 1401 Available to backorder	Electronic module	£169.44 £141.20
8	ST1252 440 1500 Available to backorder	Flat plug housing	£8.09 £6.74
9	ST1252 430 0502 Available to backorder	Switch	£15.02 £12.52
10	STLA03 350 4400 Available to backorder	Oil tank (Contains 11 - 15 + 18)	£43.46 £36.22
11	ST0000 989 0816 Available to backorder	Grommet	£2.83 £2.36
12	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£4.24 £3.53
12	ST0712 923 8004 In stock	Hose 3.1x5.7 mm x 10 m R3	£36.31 £30.26
13	ST1123 640 3800 In stock	Pickup body	£5.18 £4.32
14	ST0000 350 0536 In stock	Filler cap (Contains 15)	£9.80 £8.17
15	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
16	ST9104 003 8733 In stock	Self-tapping screw P4x16	£0.79 £0.66
18	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£9.02 £7.52
19	ST4857 640 3202 Available to backorder	Oil pump	£25.94 £21.62
