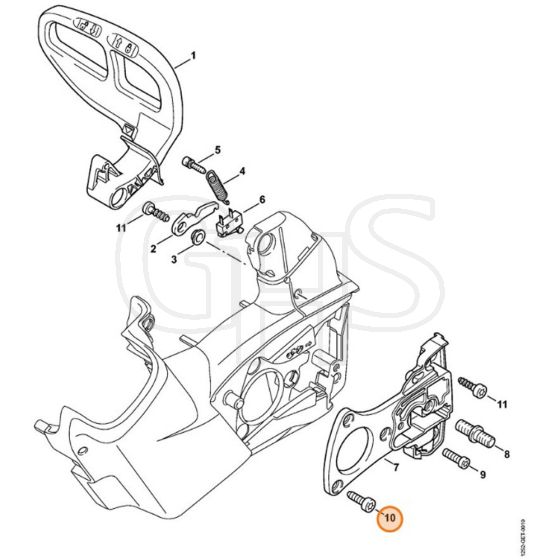

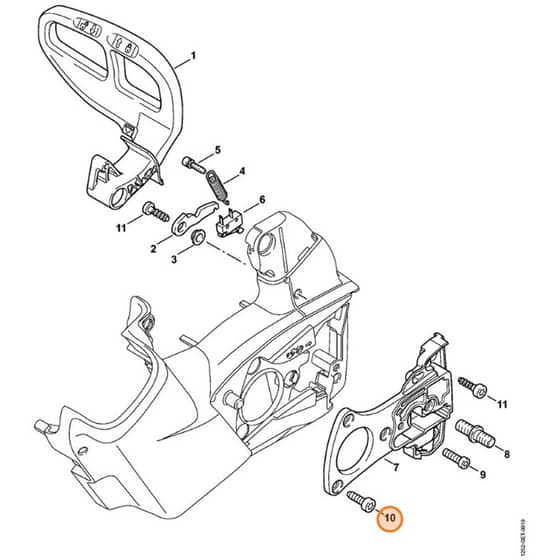

Stihl MSA160 T - Hand Guard - Chain Brake - Parts Diagram

Name: Stihl MSA160 T - Hand Guard - Chain Brake - Parts Diagram
SKU: msa160_t_hand_guard_chain_brake-group
Price: 0.77 GBP
Availability: InStock

Part No. msa160_t_hand_guard_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA160 T - Hand Guard - Chain Brake - Parts Diagram

Description

Stihl MSA160 T - Hand Guard - Chain Brake - Parts Diagram

	Part No.	Details
1	ST1252 790 9100 Available to backorder	Hand guard	£25.26 £21.05
2	ST1252 162 5000 Available to backorder	Lever	£4.20 £3.50
3	ST4249 711 2400 Available to backorder	Bushing	£3.08 £2.57
4	ST1252 162 7901 Available to backorder	Tension spring	£1.60 £1.33
5	ST4128 182 6200 Available to backorder	Collar screw	£2.40 £2.00
6	ST1250 430 0500 In stock	Switch	£3.20 £2.67
7	STLA03 600 1600 Available to backorder	Mounting plate (Contains 45543)	£34.72 £28.93
8	ST4857 664 2400 Available to backorder	Collar screw M8	£3.52 £2.93
9	ST1143 664 2402 Available to backorder	Collar screw M5	£2.28 £1.90
10	ST9075 478 4085 In stock	Pan head self-tapping screw IS-D5x18	£0.92 £0.77
11	ST9074 478 4425 In stock	Pan head self-tapping screw IS-P6x19	£0.92 £0.77
