Stihl MS212 - Rewind Starter - Ignition System - Parts Diagram

Name: Stihl MS212 - Rewind Starter - Ignition System - Parts Diagram
SKU: ms212_rewind_starter_ignition_system-group
Price: 0.44 GBP
Availability: InStock

Part No. ms212_rewind_starter_ignition_system-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS212 - Rewind Starter - Ignition System - Parts Diagram

Description

Stihl MS212 - Rewind Starter - Ignition System - Parts Diagram

	Part No.	Details
1	ST1148 080 2108 Available to backorder	Fan housing with rewind starter (Contains 13 - 20 + 23)	£63.24 £52.70
13	ST1110 084 9102 In stock	Bushing	£2.02 £1.68
14	ST1148 190 0600 Available to backorder	Rewind spring	£8.88 £7.40
15	ST1123 195 0400 In stock	Rope rotor	£8.86 £7.38
16	ST1125 195 7200 In stock	Pawl	£2.36 £1.97
17	ST0000 958 0923 In stock	Washer	£1.19 £0.99
18	ST1118 195 3500 Available to backorder	Spring	£1.19 £0.99
19	ST1121 195 3400 In stock	Starter grip	£4.14 £3.45
20	ST0000 195 8203 In stock	Starter rope Ø 3x850 mm	£3.20 £2.67
21	ST0000 930 2208 Available to backorder	Starter rope Ø 3 mm x 30.5 m	£36.29 £30.24
22	ST0000 930 2211 Available to backorder	Starter rope Ø 3 mm x 60.8 m	£62.76 £52.30
23	ST1148 967 1506 Available to backorder	Model plate MS 212	£4.68 £3.90
24	ST1148 400 1206 Available to backorder	Flywheel	£87.96 £73.30
25	ST0000 955 0802 In stock	Collar nut M8x1	£1.39 £1.16

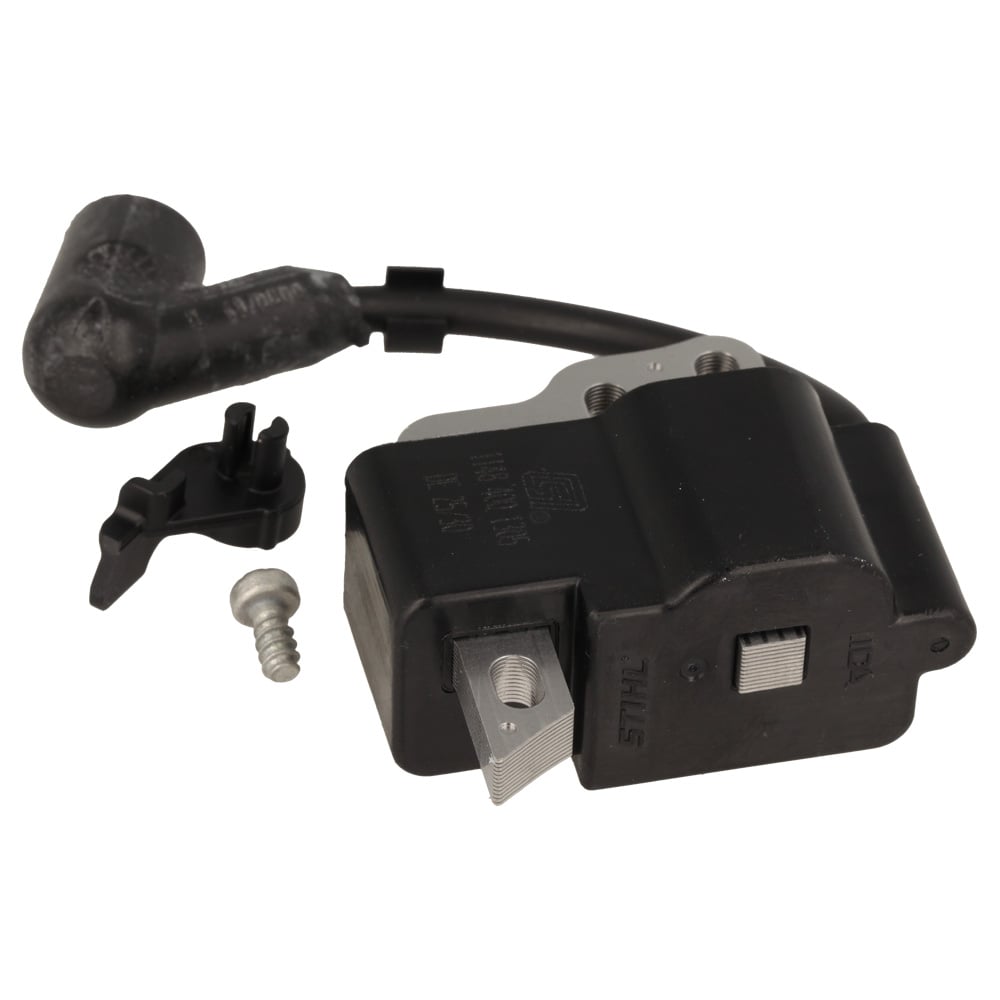

26	ST1148 400 1316 Available to backorder	Ignition module (Contains 27 - 31)	£60.31 £50.26
27	ST1148 400 7100 Available to backorder	Spark plug boot (Contains 28)	£6.37 £5.31
28	ST0000 998 0621 Available to backorder	Torsion spring	£1.37 £1.14
29	ST0000 448 1207 Available to backorder	Lead retainer	£2.51 £2.09
30	ST1148 448 1200 Available to backorder	Lead retainer	£2.63 £2.19
31	ST9074 477 2966 Available to backorder	Screw IS P4x8	£0.79 £0.66
32	ST1130 405 8004 Available to backorder	Insulator	£2.83 £2.36
33	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
34	ST9075 478 3022 In stock	Pan head self-tapping screw IS-D4x20	£0.95 £0.79
35	ST9074 477 4139 In stock	Pan head self-tapping screw IS-P5x25	£1.03 £0.86
36	ST9074 477 4135 In stock	Pan head self-tapping screw IS-P5x20	£0.95 £0.79
37	ST0000 190 3421 Available to backorder	Starter grip ElastoStart Ø 3 mm (Contains 20 + 38)	£20.48 £17.07
38	ST0000 195 7001 In stock	Cap	£1.66 £1.38
