Stihl MS212 - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Description

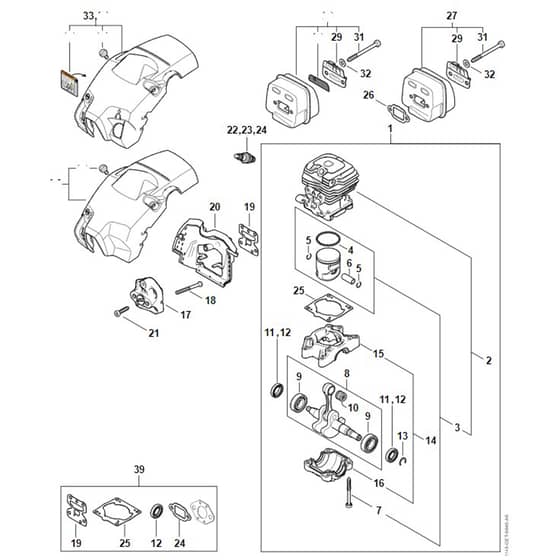

Stihl MS212 - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

	Part No.	Details
1	ST1148 020 0207 Available to backorder	Engine (Contains 2 - 10+ 12 - 16+ 23)	£158.40 £132.00
2	ST1148 020 1207 Available to backorder	Cylinder with piston Ø 405 mm (Contains 3 - 7)	£163.92 £136.60
3	ST1148 030 2017 Available to backorder	Piston Ø 405 mm (Contains 4 - 7)	£72.00 £60.00
4	ST1148 034 3008 Available to backorder	Piston ring Ø 405x12 mm	£7.86 £6.55
5	ST9463 650 1000 In stock	Snap ring 10	£0.72 £0.60
6	ST1132 034 1501 Available to backorder	Piston pin 10x6.5x25	£7.18 £5.98
7	ST9075 478 4258 Available to backorder	Pan head self-tapping screw IS D5x55	£1.46 £1.22
8	ST1148 030 0407 Available to backorder	Crankshaft (Contains 45574)	£74.76 £62.30
9	ST9503 003 0312 Available to backorder	Grooved ball bearing 6002	£12.64 £10.53
10	ST9512 003 2331 In stock	Needle cage 10x14x12.5	£8.20 £6.83
11	ST9638 003 1581 In stock	Oil seal 15x25x5	£13.79 £11.49
12	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.96 £5.80
13	ST9468 621 1520 In stock	Circlip 15x1	£0.83 £0.69
14	ST1148 020 2104 Available to backorder	Crankcase (Contains 15 + 16)	£34.37 £28.64
15	ST1148 021 0300 Available to backorder	Crankcase	£23.89 £19.91
16	ST1148 021 2504 Available to backorder	Engine pan	£16.28 £13.57
17	ST1148 121 1601 Available to backorder	Spacer flange	£16.61 £13.84
18	ST0000 951 0503 Available to backorder	Hex hd screw M5x55	£1.72 £1.43
19	ST1148 129 0903 Available to backorder	Gasket	£2.28 £1.90
20	ST1148 124 3201 Available to backorder	Cooling baffle	£9.23 £7.69
21	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
22	3945 In stock	Spark plug NGK CMR6H	£4.38 £3.65
25	ST1148 029 2301 Available to backorder	Cylinder gasket	£3.19 £2.66
26	ST1148 149 0600 Available to backorder	Muffler gasket	£2.40 £2.00

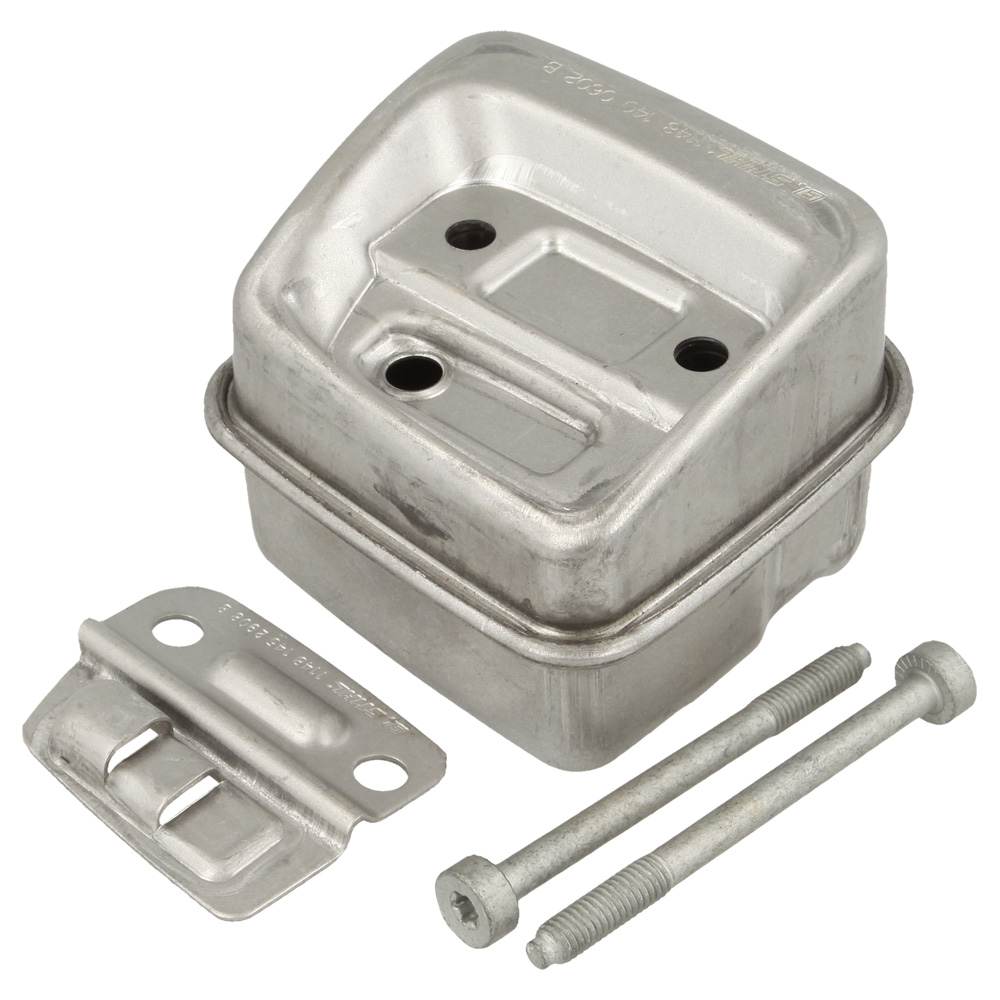

27	ST1148 140 0611 Available to backorder	Muffler (Contains 29 + 31)	£21.40 £17.83
29	ST1148 145 2908 Available to backorder	Muffler cover	£6.94 £5.78
31	ST9022 341 1462 Available to backorder	Spline screw IS-M6x70x20-10.9	£1.82 £1.52
32	ST9331 630 0130 Available to backorder	Conical spring washer	£0.46 £0.38
33	ST1148 080 1614 Available to backorder	Shroud (Contains 35)	£25.61 £21.34
39	ST1148 007 1600 Available to backorder	Set of gaskets (Contains 12 + 19 + 25 + 26)	£26.29 £21.91
