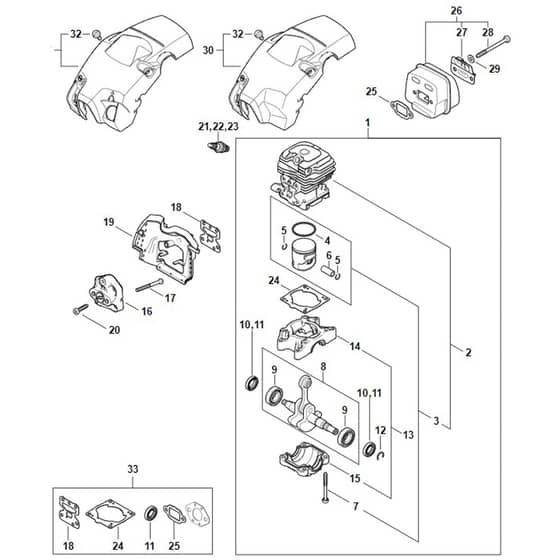

Stihl MS182 - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Name: Stihl MS182 - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram
SKU: ms182_crankcase_cylinder_muffler_shroud-group
Price: 0.38 GBP
Availability: InStock

Part No. ms182_crankcase_cylinder_muffler_shroud-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS182 - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Description

Stihl MS182 - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

	Part No.	Details
1	ST1148 020 0205 Available to backorder	Engine (Contains 2 - 9+ 11 - 15+ 22)	£126.48 £105.40
2	ST1148 020 1205 Available to backorder	Cylinder with piston Ø 39 mm (Contains 3 - 7)	£136.44 £113.70
3	ST1148 030 2015 Available to backorder	Piston Ø 39 mm (Contains 4 - 7)	£62.16 £51.80
4	ST1148 034 3007 Available to backorder	Piston ring Ø 39x12 mm	£7.18 £5.98
5	ST9463 650 1000 In stock	Snap ring 10	£0.72 £0.60
6	ST1132 034 1501 Available to backorder	Piston pin 10x6.5x25	£7.18 £5.98
7	ST9075 478 4258 Available to backorder	Pan head self-tapping screw IS D5x55	£1.46 £1.22
8	ST1148 030 1011 Available to backorder	Crankshaft with bearing (Contains 9)	£77.52 £64.60
9	ST9503 003 0312 Available to backorder	Grooved ball bearing 6002	£12.64 £10.53
9	8199 In stock	Crankshaft Bearing	£2.52 £2.10
10	ST9638 003 1581 In stock	Oil seal 15x25x5	£13.79 £11.49
11	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.96 £5.80
11	3778 In stock	Crankshaft Oil Seal Set	£2.02 £1.68
12	ST9468 621 1520 In stock	Circlip 15x1	£0.83 £0.69
13	ST1148 020 2104 Available to backorder	Crankcase (Contains 14 + 15)	£34.37 £28.64
14	ST1148 021 0300 Available to backorder	Crankcase	£23.89 £19.91
15	ST1148 021 2504 Available to backorder	Engine pan	£16.28 £13.57
16	ST1148 121 1601 Available to backorder	Spacer flange	£16.61 £13.84
17	ST0000 951 0503 Available to backorder	Hex hd screw M5x55	£1.72 £1.43
18	ST1148 129 0903 Available to backorder	Gasket	£2.28 £1.90
19	ST1148 124 3201 Available to backorder	Cooling baffle	£9.23 £7.69
20	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
21	3945 In stock	Spark plug NGK CMR6H	£4.38 £3.65
24	ST1148 029 2301 Available to backorder	Cylinder gasket	£3.19 £2.66
25	ST1148 149 0600 Available to backorder	Muffler gasket	£2.40 £2.00
26	ST1148 140 0611 Available to backorder	Muffler (Contains 27 + 28)	£21.40 £17.83
27	ST1148 145 2908 Available to backorder	Muffler cover	£6.94 £5.78
28	ST9022 341 1462 Available to backorder	Spline screw IS-M6x70x20-10.9	£1.82 £1.52
29	ST9331 630 0130 Available to backorder	Conical Spring Washer	£0.46 £0.38
30	ST1148 080 1614 Available to backorder	Shroud (Contains 32)	£25.61 £21.34
32	ST9022 319 1028 In stock	Screw IS-M5x14	£0.83 £0.69
33	ST1148 007 1600 Available to backorder	Set of gaskets (Contains 11 + 18 + 24 + 25)	£26.29 £21.91
