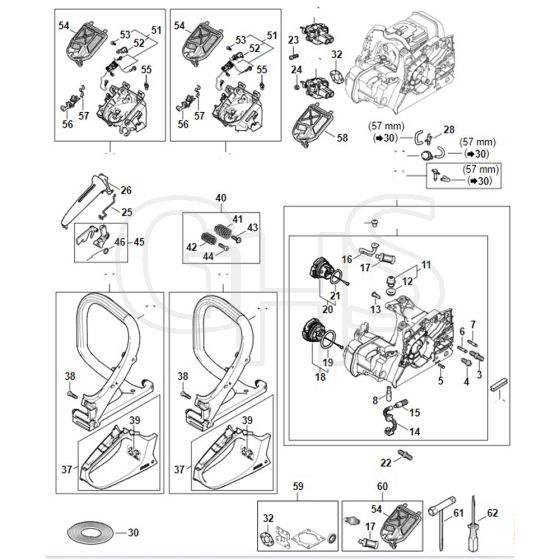

Stihl MS182 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Name: Stihl MS182 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram
SKU: ms182_c_be_engine_housing_air_filter_av_system_handlebar-group
Price: 0.4 GBP
Availability: InStock

Part No. ms182_c_be_engine_housing_air_filter_av_system_handlebar-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS182 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Description

Stihl MS182 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

	Part No.	Details
2	ST1148 020 3007 Available to backorder	Engine housing (Contains 3 - 21)	£86.40 £72.00
4	ST1123 664 2402 Available to backorder	Collar screw	£3.52 £2.93
5	ST1120 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
6	ST1123 162 5200 Available to backorder	Pin	£1.94 £1.62
7	ST1123 162 5205 Available to backorder	Pin	£2.05 £1.71
8	ST1123 640 3200 In stock	Oil pump 0.55	£30.66 £25.55
9	ST0000 989 0608 In stock	Grommet	£1.52 £1.27
10	ST1123 021 2800 Available to backorder	Insert	£4.20 £3.50
11	ST1148 350 5801 Available to backorder	Tank vent (Contains 12)	£10.24 £8.53
12	ST4223 353 9201 In stock	Grommet	£1.52 £1.27
13	ST0747 313 6810 Available to backorder	Valve	£4.00 £3.33
14	ST1148 647 4000 Available to backorder	Oil hose	£5.36 £4.47
15	ST1123 640 3800 In stock	Pickup body	£5.18 £4.32
16	ST1148 358 7700 Available to backorder	Hose	£5.69 £4.74
17	ST0000 350 3500 In stock	Pickup body	£6.96 £5.80
18	ST0000 350 0564 Available to backorder	Filler cap (Contains 19)	£10.92 £9.10
19	ST9645 951 7735 Available to backorder	O-ring N25x35-FPM75	£1.46 £1.22
20	ST0000 350 0529 In stock	Filler cap (Contains 21)	£9.80 £8.17
21	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
22	ST1123 664 2400 In stock	Collar screw	£3.65 £3.04
23	ST9074 477 4135 In stock	Pan head self-tapping screw IS-P5x20	£0.95 £0.79
24	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
25	ST1148 182 1500 Available to backorder	Throttle rod	£4.09 £3.41
26	ST1148 791 0600 In stock	Handle housing	£5.33 £4.44
27	ST0000 350 6201 In stock	Fuel pump	£12.64 £10.53
28	ST1148 350 2800 Available to backorder	Elbow connector	£3.08 £2.57
29	ST1148 350 2801 Available to backorder	Elbow connector	£3.08 £2.57
30	ST0000 937 5006 Available to backorder	Hose 2.2x5.4 mm x 1 m R5	£25.16 £20.97
32	ST1148 129 0900 Available to backorder	Gasket	£2.28 £1.90
35	ST1148 790 1001 Available to backorder	Handle housing (Contains 36 - 39)	£53.83 £44.86
36	ST1148 791 1705 Available to backorder	Handlebar	£44.28 £36.90
37	ST1148 790 0300 Available to backorder	Handle (Contains 39)	£26.63 £22.19
38	ST9074 478 4475 In stock	Pan head self-tapping screw IS-P6x21.5	£1.08 £0.90
39	ST0000 967 7396 Available to backorder	Warning pictogram	£2.15 £1.79
40	ST1148 007 1000 Available to backorder	AV-spring kit (Contains 41 - 44)	£16.16 £13.47
41	ST0000 791 3107 In stock	Spring	£3.20 £2.67
42	ST0000 791 3106 Available to backorder	Spring	£2.83 £2.36
43	ST0000 951 1100 In stock	Screw	£1.66 £1.38
45	ST1148 180 1500 Available to backorder	Throttle trigger (Contains 46)	£6.37 £5.31
46	ST1117 182 4500 In stock	Torsion spring	£1.43 £1.19
48	ST1148 120 0663 Available to backorder	Carburetor 1148/63	£98.40 £82.00
50	ST1148 140 2805 Available to backorder	Filter housing (Contains 51 - 57)	£26.40 £22.00
51	ST1148 440 3001 Available to backorder	Wiring harness (Contains 52 + 53)	£10.92 £9.10
52	ST1148 448 1200 Available to backorder	Lead retainer	£2.63 £2.19
53	ST9074 477 2966 Available to backorder	Screw IS P4x8	£0.79 £0.66
54	ST1148 140 4404 In stock	Air filter	£8.59 £7.16
55	ST1148 442 5800 Available to backorder	Link	£1.14 £0.95
56	ST1148 182 0900 Available to backorder	Switch shaft	£6.49 £5.41
57	ST1148 442 1600 Available to backorder	Contact spring	£1.60 £1.33
59	ST1148 007 1600 Available to backorder	Set of gaskets (Contains 32)	£26.29 £21.91
60	ST1148 007 4101 In stock	Servicing kit 19 (Contains 17 + 54)	£19.69 £16.41
61	ST0000 890 3400 Available to backorder	Combination wrench	£9.79 £8.16
62	ST0000 890 2300 Available to backorder	Screwdriver	£2.14 £1.78
