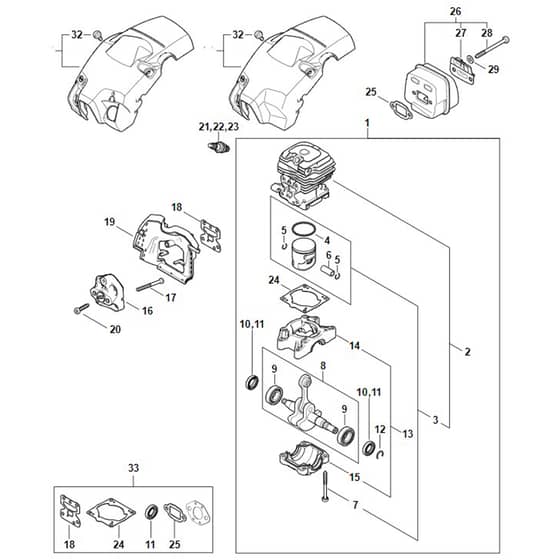

Stihl MS182 C-BE - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Description

Stihl MS182 C-BE - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST1148 020 0205 Available to backorder	Engine (Contains 2 - 9+ 11 - 15+ 22)	£126.50 £105.42
2	ST1148 020 1205 Available to backorder	Cylinder with piston Ø 39 mm (Contains 3 - 7)	£136.40 £113.67
3	ST1148 030 2015 Available to backorder	Piston Ø 39 mm (Contains 4 - 7)	£62.14 £51.78
4	ST1148 034 3007 Available to backorder	Piston ring Ø 39x12 mm	£6.94 £5.78
5	ST9463 650 1000 In stock	Snap ring 10	£0.72 £0.60
6	ST1132 034 1501 Available to backorder	Piston pin 10x6.5x25	£6.94 £5.78
7	ST9075 478 4258 Available to backorder	Pan head self-tapping screw IS D5x55	£1.42 £1.18
8	ST1148 030 1011 Available to backorder	Crankshaft with bearing (Contains 9)	£77.56 £64.63
9	ST9503 003 0312 Available to backorder	Grooved ball bearing 6002	£12.22 £10.18
10	ST9638 003 1581 Available to backorder	Oil seal 15x25x5	£12.88 £10.73
11	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.50 £5.42
12	ST9468 621 1520 In stock	Circlip 15x1	£0.76 £0.63
13	ST1148 020 2104 Available to backorder	Crankcase (Contains 14 + 15)	£33.22 £27.68
14	ST1148 021 0300 Available to backorder	Crankcase	£23.10 £19.25
15	ST1148 021 2504 Available to backorder	Engine pan	£15.74 £13.12
16	ST1148 121 1601 Available to backorder	Spacer flange	£16.06 £13.38
17	ST0000 951 0503 Available to backorder	Hex hd screw M5x55	£1.66 £1.38
18	ST1148 129 0903 Available to backorder	Gasket	£2.20 £1.83
19	ST1148 124 3201 Available to backorder	Cooling baffle	£8.92 £7.43
20	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.89 £0.74
21	3945 In stock	Spark plug NGK CMR6H	£3.76 £3.13
24	ST1148 029 2301 Available to backorder	Cylinder gasket	£3.08 £2.57
25	ST1148 149 0600 Available to backorder	Muffler gasket	£2.32 £1.93
26	ST1148 140 0611 Available to backorder	Muffler (Contains 27 + 28)	£20.68 £17.23
27	ST1148 145 2908 Available to backorder	Muffler cover	£6.70 £5.58
28	ST9022 341 1462 Available to backorder	Spline screw IS-M6x70x20-10.9	£1.76 £1.47
29	ST9331 630 0130 Available to backorder	Conical spring washer	£0.48 £0.40
31	ST1148 080 1615 Available to backorder	Shroud (Contains 32)	£25.30 £21.08
32	ST9022 319 1028 In stock	Screw IS-M5x14	£0.76 £0.63
33	ST1148 007 1600 Available to backorder	Set of gaskets (Contains 11 + 18 + 24 + 25)	£25.42 £21.18
