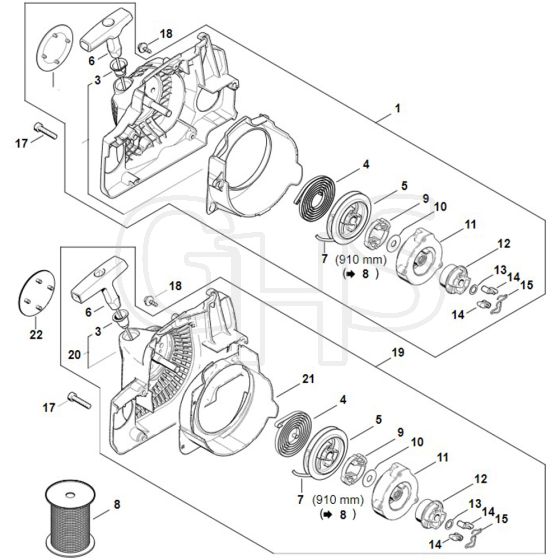

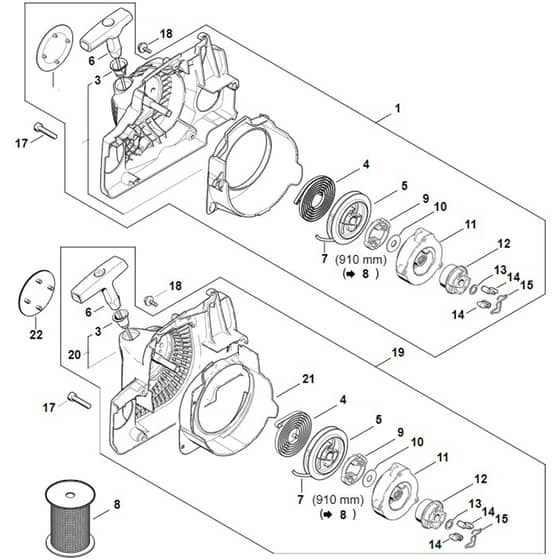

Stihl MS180 C-BE - Rewind Starter Ergostart-Easy2Start - Parts Diagram

Name: Stihl MS180 C-BE - Rewind Starter Ergostart-Easy2Start - Parts Diagram
SKU: ms180_c_be_rewind_starter_ergostart_easy2start-group
Price: 0.66 GBP
Availability: InStock

Part No. ms180_c_be_rewind_starter_ergostart_easy2start-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS180 C-BE - Rewind Starter Ergostart-Easy2Start - Parts Diagram

Description

Stihl MS180 C-BE - Rewind Starter Ergostart-Easy2Start - Parts Diagram

	Part No.	Details
3	ST1110 084 9102 In stock	Bushing	£2.02 £1.68
4	ST1123 190 0600 In stock	Rewind spring	£9.67 £8.06
5	ST1123 195 0401 Available to backorder	Rope rotor	£8.77 £7.31
6	ST1121 195 3400 In stock	Starter grip	£4.14 £3.45
7	ST4137 195 8200 In stock	Starter rope Ø 2.7x910 mm	£3.41 £2.84
8	ST0000 930 2281 Available to backorder	Starter rope Ø 2.7 mm x 30.8 m	£33.00 £27.50
10	ST1123 195 9001 Available to backorder	Washer	£1.37 £1.14
11	ST1130 190 0700 Available to backorder	Spring housing	£37.66 £31.38
12	ST1130 195 2000 In stock	Carrier	£2.94 £2.45
13	ST0000 958 0806 Available to backorder	Washer	£1.19 £0.99
14	ST1123 195 7200 In stock	Pawl	£2.36 £1.97
17	ST9075 478 4155 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
18	ST9104 003 8733 In stock	Self-tapping screw P4x16	£0.79 £0.66
19	ST1130 080 2103 Available to backorder	Fan housing with rewind starter (Contains 3 - 7 + 9 - 15 + 20 + 21)	£116.64 £97.20
20	ST1130 080 1803 Available to backorder	Fan housing (Contains 3)	£40.51 £33.76
21	ST1130 084 7800 Available to backorder	Segment	£4.74 £3.95
22	ST1130 967 1509 Available to backorder	Model plate MS 180 C	£4.68 £3.90
