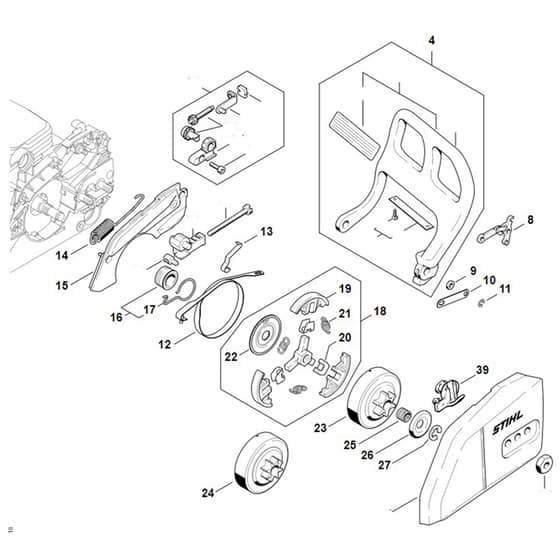

Stihl MS180 C-BE - Hand Guard - Chain Brake - Parts Diagram

Name: Stihl MS180 C-BE - Hand Guard - Chain Brake - Parts Diagram
SKU: ms180_c_be_hand_guard_chain_brake-group
Price: 0.3 GBP
Availability: InStock

Part No. ms180_c_be_hand_guard_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS180 C-BE - Hand Guard - Chain Brake - Parts Diagram

Description

Stihl MS180 C-BE - Hand Guard - Chain Brake - Parts Diagram

	Part No.	Details
1	ST1130 792 9100 In stock	Hand Guard	£31.12 £25.93
4	ST1130 790 9102 Available to backorder	Hand guard (Contains 1 + 5 - 7)	£30.04 £25.03
8	ST1128 160 5000 In stock	Lever	£10.27 £8.56
9	ST0000 958 0521 Available to backorder	Washer	£1.14 £0.95
10	ST1123 162 5800 In stock	Strap	£1.79 £1.49
11	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
12	ST1123 160 5400 In stock	Brake band	£7.88 £6.57
13	ST1123 162 7800 In stock	Flat spring	£1.43 £1.19
14	ST1123 162 7900 Available to backorder	Tension spring	£2.40 £2.00
15	ST1130 021 1100 In stock	Cover	£3.77 £3.14
16	ST1123 640 7102 In stock	Worm gear (Contains 17)	£8.39 £6.99
17	ST1123 647 2400 Available to backorder	Spring	£1.37 £1.14
18	ST1123 160 2050 Available to backorder	Clutch (Contains 19 - 22)	£37.09 £30.91
19	ST1129 162 0800 In stock	Clutch shoe	£5.42 £4.52
20	ST1127 162 3000 In stock	Retainer	£1.39 £1.16
21	ST0000 997 5515 In stock	Tension spring	£0.95 £0.79
22	ST1121 162 1001 In stock	Cover washer	£3.20 £2.67
23	ST1123 640 2003 In stock	Chain sprocket 3/8"P 6 teeth	£23.45 £19.54
24	ST1123 640 2007 Available to backorder	Chain sprocket 1/4" 8T	£22.63 £18.86
25	ST9512 933 2260 In stock	Needle cage 10x13x10	£7.19 £5.99
26	ST0000 958 1022 In stock	Washer Ø 27 mm	£1.66 £1.38
27	ST9460 624 0801 In stock	E-clip 8x13	£0.36 £0.30
39	ST1123 656 7700 In stock	Chain catcher	£3.43 £2.86
