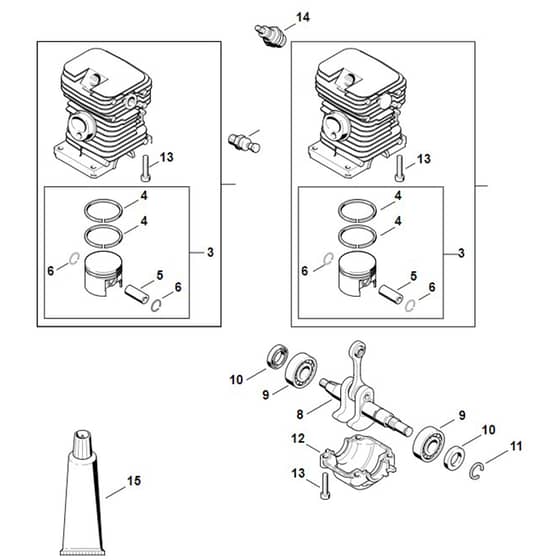

Stihl MS180 C-BE - Cylinder - Parts Diagram

Part No. ms180_c_be_cylinder-group

Description

	Part No.	Details
1	ST1130 020 1208 Available to backorder	Cylinder with piston Ø 38 mm (Contains 3 - 6 + 14)	£124.32 £103.60
3	ST1130 030 2004 In stock	Piston Ø 38 mm (Contains 4 - 6)	£64.32 £53.60
4	ST1130 034 3002 Available to backorder	Piston ring Ø 38x1.2 mm	£6.72 £5.60
5	ST1132 034 1501 Available to backorder	Piston pin 10x6.5x25	£7.18 £5.98
6	ST9463 650 1000 In stock	Snap ring 10	£0.72 £0.60
8	ST1132 030 0402 Available to backorder	Crankshaft	£62.76 £52.30
9	ST9503 003 0312 Available to backorder	Grooved ball bearing 6002	£12.64 £10.53
10	ST9638 003 1581 In stock	Oil seal 15x25x5	£13.79 £11.49
10	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.96 £5.80
11	ST9468 621 1520 In stock	Circlip 15x1	£0.83 £0.69
12	ST1130 021 2504 Available to backorder	Engine pan	£13.55 £11.29
13	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
14	ST0000 400 7016 In stock	Spark plug Bosch WSR 6 F	£2.80 £2.33
14	2134 In stock	Spark plug NGK BPMR7A	£2.80 £2.33
