Stihl MS180 C-BE - Carburetor C1Q-S57 - C1Q-S57 - C1Q-S264 - Parts Diagram

Description

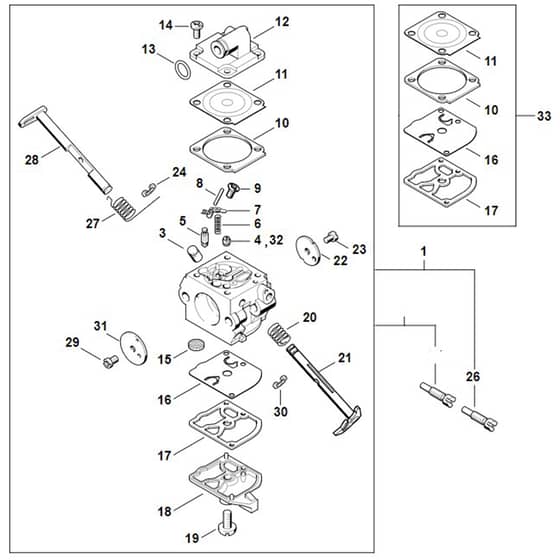

Stihl MS180 C-BE - Carburetor C1Q-S57 - C1Q-S57 - C1Q-S264 - Parts Diagram

	Part No.	Details
2	ST1130 120 0603 Available to backorder	Carburetor C1Q-S57H (Contains 3 - 25 + 27 - 31)	£86.88 £72.40
3	ST1130 121 5401 Available to backorder	Valve jet	£10.01 £8.34
4	ST1130 121 5604 Available to backorder	Fixed jet 0.45	£11.28 £9.40
5	STZ000 018 Z000 Available to backorder	Inlet needle	£9.29 £9.29
6	ST1130 122 3001 Available to backorder	Spring	£2.40 £2.00
7	ST1125 121 5000 Available to backorder	Inlet control lever	£3.41 £2.84
8	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
9	ST1120 122 6600 Available to backorder	Collar screw	£4.32 £3.60
10	ST1130 129 0901 Available to backorder	Metering gasket	£2.28 £1.90
11	ST1130 121 4700 Available to backorder	Metering diaphragm	£15.48 £12.90
12	ST1130 121 0800 Available to backorder	End cover	£17.75 £14.79
13	ST9646 945 0490 In stock	O-ring 7x1.5	£0.48 £0.40
14	ST1120 122 6601 Available to backorder	Collar screw	£4.32 £3.60
15	ST1123 121 7800 Available to backorder	Strainer	£3.41 £2.84
16	ST1130 121 4800 Available to backorder	Pump diaphragm	£15.48 £12.90
17	ST1130 129 0900 Available to backorder	Pump gasket	£2.28 £1.90
18	ST1130 121 0801 Available to backorder	End cover	£17.75 £14.79
19	ST1120 122 7800 Available to backorder	Oval head screw	£4.55 £3.79
20	ST1123 122 3000 Available to backorder	Spring	£2.40 £2.00
21	ST1130 120 7101 Available to backorder	Throttle shaft with lever	£17.17 £14.31
22	ST1130 121 3302 Available to backorder	Throttle shutter	£4.55 £3.79
23	ST1120 122 7400 Available to backorder	Round head screw	£4.55 £3.79
24	ST1125 122 9001 Available to backorder	E-clip	£2.15 £1.79
25	ST1130 122 6301 Available to backorder	Idle speed screw	£11.15 £9.29
26	ST1130 122 6300 Available to backorder	Idle speed screw	£11.15 £9.29
27	ST1123 122 3203 Available to backorder	Torsion spring	£1.14 £0.95
28	ST1123 120 7200 Available to backorder	Choke shaft with lever	£17.98 £14.98
29	ST1125 122 7403 In stock	Round head screw	£4.72 £3.93
30	ST1125 122 9002 Available to backorder	E-clip	£2.15 £1.79
31	ST1132 121 2901 Available to backorder	Choke shutter	£4.55 £3.79
32	ST4137 121 5601 Available to backorder	Fixed jet 0.42	£10.01 £8.34
33	ST1130 007 1061 Available to backorder	CARBURETOR PARTS KIT (Contains 10 + 11 + 16 + 17)	£30.62 £25.52
