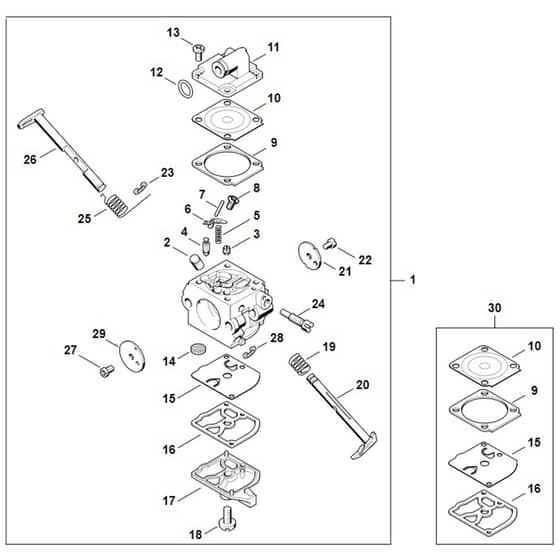

Stihl MS180 C-BE - Carburetor C1Q-S152 - Parts Diagram

Description

Stihl MS180 C-BE - Carburetor C1Q-S152 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST1130 120 0608 Available to backorder	Carburetor C1Q-S152E (Contains 2 - 29)	£86.90 £72.42
2	ST1130 121 5401 Available to backorder	Valve jet	£9.68 £8.07
3	ST1123 121 5602 Available to backorder	Fixed jet 0.46	£9.68 £8.07
3	ST4137 121 5601 Available to backorder	Fixed jet 0.42	£9.68 £8.07
4	STZ000 018 Z000 Available to backorder	Inlet needle	£8.98 £8.98
5	ST1130 122 3001 Available to backorder	Spring	£2.32 £1.93
6	ST1125 121 5000 Available to backorder	Inlet control lever	£3.30 £2.75
7	ST1120 121 9200 Available to backorder	Spindle	£1.32 £1.10
8	ST1120 122 6600 Available to backorder	Collar screw	£4.18 £3.48
9	ST1130 129 0901 Available to backorder	Metering gasket	£2.20 £1.83
10	ST1130 121 4700 Available to backorder	Metering diaphragm	£14.96 £12.47
11	ST1130 121 0800 Available to backorder	End cover	£17.16 £14.30
12	ST9646 945 0490 In stock	O-ring 7x1.5	£0.44 £0.37
13	ST1120 122 6601 Available to backorder	Collar screw	£4.18 £3.48
14	ST1123 121 7800 Available to backorder	Strainer	£3.30 £2.75
15	ST1130 121 4800 Available to backorder	Pump diaphragm	£14.96 £12.47
16	ST1130 129 0900 Available to backorder	Pump gasket	£2.20 £1.83
17	ST1130 121 0801 Available to backorder	End cover	£17.16 £14.30
18	ST1120 122 7800 Available to backorder	Oval head screw	£4.40 £3.67
19	ST1123 122 3000 Available to backorder	Spring	£2.32 £1.93
20	ST1130 120 7101 Available to backorder	Throttle shaft with lever	£16.60 £13.83
21	ST1130 121 3302 Available to backorder	Throttle shutter	£4.40 £3.67
22	ST1120 122 7400 Available to backorder	Round head screw	£4.40 £3.67
23	ST1125 122 9001 Available to backorder	E-clip	£2.08 £1.73
24	ST1130 122 6301 Available to backorder	Idle speed screw	£10.78 £8.98
25	ST1123 122 3203 Available to backorder	Torsion spring	£1.10 £0.92
26	ST1123 120 7200 Available to backorder	Choke shaft with lever	£17.38 £14.48
27	ST1125 122 7403 In stock	Round head screw	£4.40 £3.67
28	ST1125 122 9002 Available to backorder	E-clip	£2.08 £1.73
29	ST1132 121 2901 Available to backorder	Choke shutter	£4.40 £3.67
30	ST1130 007 1061 Available to backorder	CARBURETOR PARTS KIT (Contains 9 + 10 + 15 + 16)	£29.60 £24.67
