Stihl MS180 C-BE - Air Filter - Shroud - Parts Diagram

Name: Stihl MS180 C-BE - Air Filter - Shroud - Parts Diagram
SKU: ms180_c_be_air_filter_shroud-group
Price: 0.4 GBP
Availability: InStock

Part No. ms180_c_be_air_filter_shroud-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

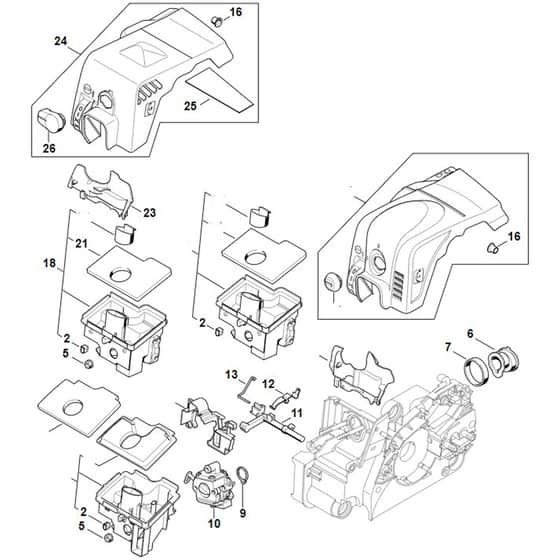

Stihl MS180 C-BE - Air Filter - Shroud - Parts Diagram

Description

Stihl MS180 C-BE - Air Filter - Shroud - Parts Diagram

	Part No.	Details
2	ST1130 124 7100 In stock	Sleeve	Was £2.32 £1.93 Special Price £1.75 £1.46
4	ST1130 141 1704 Available to backorder	Filter plate	£2.96 £2.47
5	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
6	ST1130 141 2200 Available to backorder	Manifold	£21.52 £17.93
7	ST1130 022 2000 Available to backorder	Ring	£4.09 £3.41
9	ST1130 141 1800 Available to backorder	Sleeve	£1.19 £0.99
10	ST1130 120 0608 Available to backorder	Carburetor C1Q-S152E	£86.88 £72.40
10	ST1130 120 0603 Available to backorder	Carburetor C1Q-S57H	£86.88 £72.40
11	ST1130 182 0900 In stock	Switch shaft	£7.08 £5.90
12	ST1130 442 1602 In stock	Contact spring	£1.38 £1.38
13	ST1130 185 2000 In stock	Choke rod	£1.43 £1.19
16	ST1130 141 1801 Available to backorder	Sleeve	£1.14 £0.95
18	ST1130 140 2803 Available to backorder	Filter housing (Contains 2 + 20 + 21)	£20.48 £17.07
20	ST1130 141 1101 Available to backorder	Insert	£2.74 £2.28
21	ST1130 124 0800 In stock	Filter plate	£2.14 £1.78
23	ST1130 124 3200 Available to backorder	Baffle plate	£5.23 £4.36
24	ST1130 140 4709 Available to backorder	Shroud (Contains 16 + 25 + 26)	£22.99 £19.16
25	ST1130 084 8300 Available to backorder	Reflector foil	£5.36 £4.47
26	ST1130 141 2300 Available to backorder	Twist lock	£5.14 £4.28
