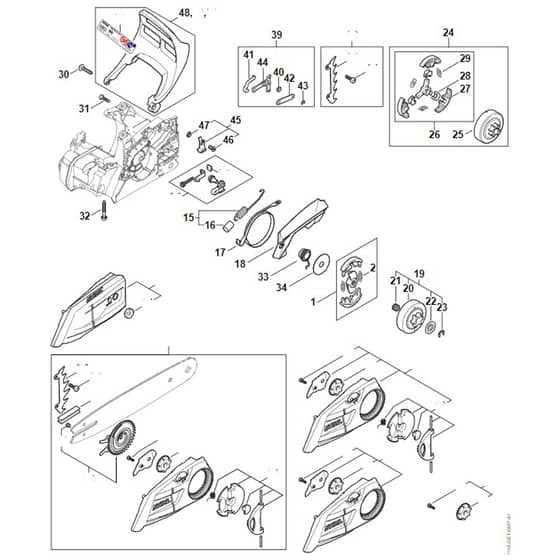

Stihl MS172 - Clutch - Chain Brake - Parts Diagram

Name: Stihl MS172 - Clutch - Chain Brake - Parts Diagram
SKU: ms172_clutch_chain_brake-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS172 - Clutch - Chain Brake - Parts Diagram

Description

Stihl MS172 - Clutch - Chain Brake - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST1148 160 2000 Available to backorder	Clutch (Contains 2)	£32.78 £27.32
2	ST0000 997 5524 Available to backorder	Tension spring	£1.10 £0.92
3	ST1148 640 1704 Available to backorder	Chain sprocket cover (Contains 14)	£21.78 £18.15
14	ST0000 955 0801 In stock	Hexagon nut M8	£2.08 £1.73
15	ST1148 160 5500 Available to backorder	Tension spring (Contains 16)	£3.08 £2.57
16	ST1141 162 8001 Available to backorder	Hose	£3.20 £2.67
17	ST1148 160 5400 Available to backorder	Brake band	£6.82 £5.68
18	ST1148 021 1100 Available to backorder	Cover	£5.84 £4.87
19	ST1148 640 2001 In stock	Chain sprocket 3/8"P 6 teeth (Contains 20 - 23)	£25.08 £20.90
20	ST1148 640 2000 Available to backorder	Chain sprocket 3/8"P 6 teeth	£22.88 £19.07
21	ST9512 933 2260 In stock	Needle cage 10x13x10	£6.70 £5.58
22	ST0000 958 1022 In stock	Washer Ø 27 mm	£1.54 £1.28
23	ST9460 624 0801 In stock	E-clip 8x13	£0.34 £0.28
24	ST1148 007 1002 Available to backorder	Chain Sprocket Set (Contains 25-29)	£50.82 £42.35
25	ST1123 640 2007 Available to backorder	Chain sprocket 1/4" 8T (Contains 27 - 29)	£21.88 £18.23
26	ST1123 160 2050 Available to backorder	Clutch	£35.86 £29.88
27	ST1129 162 0800 In stock	Clutch shoe	£5.06 £4.22
28	ST1127 162 3000 In stock	Retainer	£1.32 £1.10
29	ST0000 997 5515 In stock	Tension spring	£0.88 £0.73
30	ST9074 477 4139 In stock	Pan head self-tapping screw IS-P5x25	£1.00 £0.83
31	ST9074 477 4135 In stock	Pan head self-tapping screw IS-P5x20	£0.88 £0.73
32	ST9075 478 4195 In stock	Pan head self-tapping screw IS-D5.3x41	£1.22 £1.02
33	ST1123 640 7102 In stock	Worm gear	£7.82 £6.52
34	ST1148 162 1000 Available to backorder	Cover washer	£2.74 £2.28
35	ST1148 660 0701 In stock	Chain tightener (Contains 36)	£10.90 £9.08
36	ST1123 664 1400 In stock	Thrust pad	£1.32 £1.10
39	ST1148 007 1001 Available to backorder	set of chain brake parts (Contains 40 - 44)	£9.80 £8.17
40	ST0000 958 0521 Available to backorder	Washer	£1.10 £0.92
41	ST1148 162 7800 Available to backorder	Flat spring	£1.32 £1.10
42	ST1123 162 5800 In stock	Strap	£1.66 £1.38
43	ST9460 624 0400 In stock	E-clip 4	£0.47 £0.39
44	ST1121 160 5000 In stock	Lever	Was £9.58 £7.98 Special Price £5.24 £4.37
45	ST1148 650 7700 Available to backorder	Chain catcher (Contains 46 + 47)	£2.98 £2.48
46	ST9062 319 1270 Available to backorder	Countersunk screw M6x14	£0.88 £0.73
47	ST9214 320 0900 In stock	Lock nut M6	£0.44 £0.37
48	ST1148 792 4900 In stock	Hand guard	£31.36 £26.13
52	ST1123 007 1006 Available to backorder	Set Bumper spike (Contains 53 + 54)	£4.96 £4.13
53	ST1123 664 0500 Available to backorder	Bumper spike	£3.74 £3.12
54	ST9075 478 4115 In stock	Pan head self-tapping screw IS-D5x16	£0.88 £0.73
