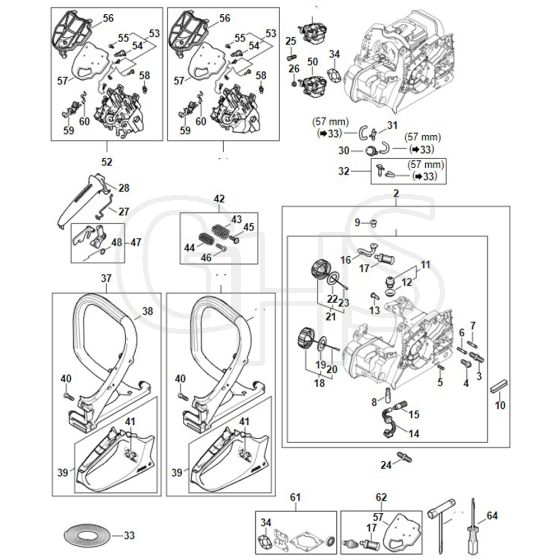

Stihl MS162 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Name: Stihl MS162 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram
SKU: ms162_c_be_engine_housing_air_filter_av_system_handlebar-group
Price: 0.4 GBP
Availability: InStock

Part No. ms162_c_be_engine_housing_air_filter_av_system_handlebar-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS162 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Description

Stihl MS162 C-BE - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

	Part No.	Details
4	ST1123 664 2402 Available to backorder	Collar screw	£3.52 £2.93
5	ST1120 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
6	ST1123 162 5200 Available to backorder	Pin	£1.94 £1.62
7	ST1123 162 5205 Available to backorder	Pin	£2.05 £1.71
8	ST1123 640 3200 In stock	Oil pump 0.55	£30.66 £25.55
9	ST0000 989 0608 In stock	Grommet	£1.52 £1.27
10	ST1123 021 2800 Available to backorder	Insert	£4.20 £3.50
11	ST1148 350 5801 Available to backorder	Tank vent (Contains 12)	£10.24 £8.53
12	ST4223 353 9201 In stock	Grommet	£1.52 £1.27
13	ST0747 313 6810 Available to backorder	Valve	£4.00 £3.33
14	ST1148 647 4000 Available to backorder	Oil hose	£5.36 £4.47
15	ST1123 640 3800 In stock	Pickup body	£5.18 £4.32
16	ST1148 358 7700 Available to backorder	Hose	£5.69 £4.74
17	ST0000 350 3500 In stock	Pickup body	£6.96 £5.80
18	ST0000 350 0546 Available to backorder	Filler cap (Contains 19 + 20)	£7.51 £6.26
19	ST0000 359 1240 Available to backorder	Sealing ring	£1.60 £1.33
20	ST0000 350 0905 Available to backorder	Rope	£2.05 £1.71
21	ST0000 350 0542 Available to backorder	Filler cap (Contains 22 + 23)	£7.51 £6.26
22	ST0000 359 1207 Available to backorder	Sealing ring	£0.68 £0.57
24	ST1123 664 2400 In stock	Collar screw	£3.65 £3.04
25	ST9074 477 4135 In stock	Pan head self-tapping screw IS-P5x20	£0.95 £0.79
26	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
27	ST1148 182 1500 Available to backorder	Throttle rod	£4.09 £3.41
28	ST1148 791 0600 In stock	Handle housing	£5.33 £4.44
30	ST0000 350 6201 In stock	Fuel pump	£12.64 £10.53
31	ST1148 350 2800 Available to backorder	Elbow connector	£3.08 £2.57
32	ST1148 350 2801 Available to backorder	Elbow connector	£3.08 £2.57
33	ST0000 937 5006 Available to backorder	Hose 2.2x5.4 mm x 1 m R5	£25.16 £20.97
34	ST1148 129 0900 Available to backorder	Gasket	£2.28 £1.90
37	ST1148 790 1001 Available to backorder	Handle housing (Contains 38 - 41)	£53.83 £44.86
38	ST1148 791 1705 Available to backorder	Handlebar	£44.28 £36.90
39	ST1148 790 0300 Available to backorder	Handle (Contains 41)	£26.63 £22.19
40	ST9074 478 4475 In stock	Pan head self-tapping screw IS-P6x21.5	£1.08 £0.90
41	ST0000 967 7396 Available to backorder	Warning pictogram	£2.15 £1.79
42	ST1148 007 1000 Available to backorder	AV-spring kit (Contains 43 - 46)	£16.16 £13.47
43	ST0000 791 3107 In stock	Spring	£3.20 £2.67
44	ST0000 791 3106 Available to backorder	Spring	£2.83 £2.36
45	ST0000 951 1100 In stock	Screw	£1.66 £1.38
47	ST1148 180 1500 Available to backorder	Throttle trigger (Contains 48)	£6.37 £5.31
48	ST1117 182 4500 In stock	Torsion spring	£1.43 £1.19
53	ST1148 440 3000 Available to backorder	Wiring harness (Contains 54 + 55)	£10.34 £8.62
54	ST1148 448 1200 Available to backorder	Lead retainer	£2.63 £2.19
55	ST9074 477 2966 Available to backorder	Screw IS P4x8	£0.79 £0.66
56	ST1148 124 0500 Available to backorder	Filter frame	£7.06 £5.88
57	ST1148 141 1700 Available to backorder	Filter plate	£2.05 £1.71
58	ST1148 442 5800 Available to backorder	Link	£1.14 £0.95
59	ST1148 182 0900 Available to backorder	Switch shaft	£6.49 £5.41
60	ST1148 442 1600 Available to backorder	Contact spring	£1.60 £1.33
61	ST1148 007 1600 Available to backorder	Set of gaskets (Contains 34)	£26.29 £21.91
62	ST1148 007 4100 In stock	Servicing kit 18 (Contains 17 + 57)	£13.20 £11.00
64	ST0000 890 2300 Available to backorder	Screwdriver	£2.14 £1.78
