Stihl MS162 C-BE - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Name: Stihl MS162 C-BE - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram
SKU: ms162_c_be_crankcase_cylinder_muffler_shroud-group
Price: 0.6 GBP
Availability: InStock

Part No. ms162_c_be_crankcase_cylinder_muffler_shroud-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS162 C-BE - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

Description

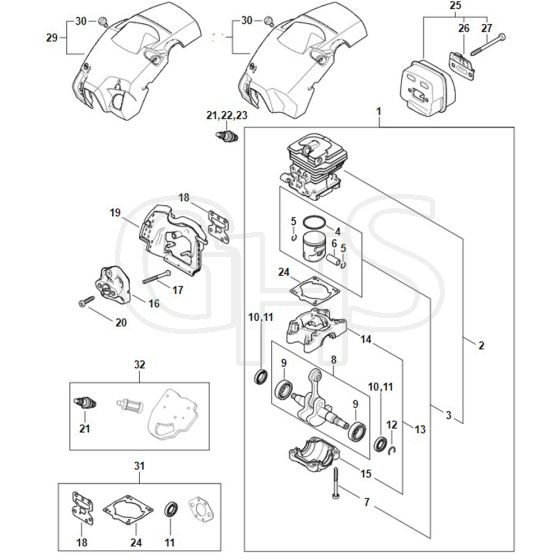

Stihl MS162 C-BE - Crankcase - Cylinder - Muffler - Shroud - Parts Diagram

	Part No.	Details
1	ST1148 020 0201 Available to backorder	Engine (Contains 2 - 9+ 11 - 15+ 22+ 24)	£63.24 £52.70
2	ST1148 020 1201 Available to backorder	Cylinder with piston Ø 37 mm (Contains 3 - 7)	£67.68 £56.40
3	ST1148 030 2011 Available to backorder	Piston Ø 37 mm (Contains 4 - 7)	£36.29 £30.24
4	ST1148 034 3001 Available to backorder	Piston ring Ø 37x12 mm	£6.25 £5.21
5	ST9463 650 1000 In stock	Snap ring 10	£0.72 £0.60
6	ST1139 034 1500 Available to backorder	Piston pin 10x6.5x23	£7.06 £5.88
7	ST9075 478 4258 Available to backorder	Pan head self-tapping screw IS D5x55	£1.46 £1.22
8	ST1148 030 1008 Available to backorder	Crankshaft with bearing (Contains 9)	£56.44 £47.03
9	ST9503 003 0312 Available to backorder	Grooved ball bearing 6002	£12.64 £10.53
10	ST9638 003 1581 In stock	Oil seal 15x25x5	£13.79 £11.49
11	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.96 £5.80
12	ST9468 621 1520 In stock	Circlip 15x1	£0.83 £0.69
13	ST1148 020 2100 Available to backorder	Crankcase (Contains 14 + 15)	£34.60 £28.83
14	ST1148 021 0300 Available to backorder	Crankcase	£23.89 £19.91
15	ST1148 021 2501 Available to backorder	Engine pan	£16.28 £13.57
16	ST1148 121 1601 Available to backorder	Spacer flange	£16.61 £13.84
17	ST0000 951 0503 Available to backorder	Hex hd screw M5x55	£1.72 £1.43
18	ST1148 129 0903 Available to backorder	Gasket	£2.28 £1.90
19	ST1148 124 3201 Available to backorder	Cooling baffle	£9.23 £7.69
20	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
21	3945 In stock	Spark plug NGK CMR6H	£4.38 £3.65
24	ST1148 029 2301 Available to backorder	Cylinder gasket	£3.19 £2.66
25	ST1148 140 0609 Available to backorder	Muffler (Contains 26 + 27)	£20.59 £17.16
26	ST1148 145 2908 Available to backorder	Muffler cover	£6.94 £5.78
27	ST9022 341 1462 Available to backorder	Spline screw IS-M6x70x20-10.9	£1.82 £1.52
30	ST9022 346 1031 Available to backorder	Spline screw IS-M5x15-10.9	£0.91 £0.76
31	ST1148 007 1600 Available to backorder	Set of gaskets (Contains 11 + 18 + 24)	£26.29 £21.91
32	ST1148 007 4100 In stock	Servicing kit 18 (Contains 21)	£13.20 £11.00
