Stihl MM56 - Engine Housing, Drive Tube Assembly - Parts Diagram

Description

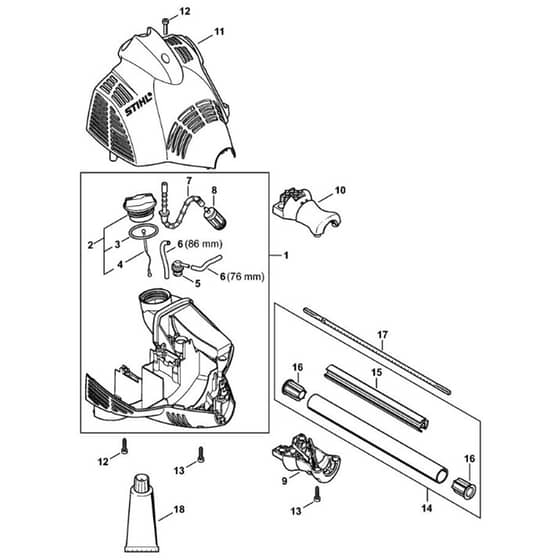

Stihl MM56 - Engine Housing, Drive Tube Assembly - Parts Diagram

	Part No.	Details
1	ST4604 020 3006 Available to backorder	Engine housing (Contains 2 - 8)	£70.92 £59.10
2	ST0000 350 0527 In stock	Filler cap (Contains 45385)	£7.79 £6.49
3	ST9645 951 3890 Available to backorder	O-ring 35x3-FPM 80	£1.72 £1.43
4	ST0000 350 0900 Available to backorder	Rope	£1.31 £1.09
5	ST0000 350 5807 In stock	Tank vent	£10.61 £8.84
6	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£4.24 £3.53
7	ST4144 358 0800 In stock	Hose	£8.60 £7.17
8	ST0000 350 3502 In stock	Pickup body	£6.96 £5.80
9	ST4604 791 0901 Available to backorder	Clamp	£11.03 £9.19
10	ST4604 791 0900 Available to backorder	Clamp	£10.82 £9.02
11	ST4144 080 1605 Available to backorder	Shroud	£30.26 £25.22
12	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.95 £0.79
13	ST9074 477 4135 In stock	Pan head self-tapping screw IS-P5x20	£0.95 £0.79
14	ST4604 710 7101 Available to backorder	Drive tube assembly Ø 25.4 mm x 282 mm / 1" x 11 1/8" (Contains 15 + 16)	£39.49 £32.91
15	ST4604 711 7300 Available to backorder	Flexible liner 202 mm / 8"	£3.64 £3.03
16	ST4601 711 2100 Available to backorder	Plug	£1.26 £1.05
17	ST4604 710 3201 Available to backorder	Drive shaft 320 mm / 12 5/8"	£33.23 £27.69
18	ST0781 120 1110 In stock	Multipurpose grease 225 g	£21.96 £18.30
