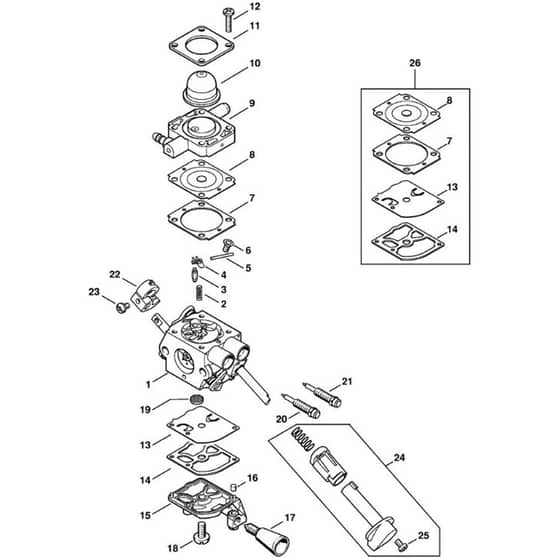

Stihl MM56 - Carburetor - Parts Diagram

Name: Stihl MM56 - Carburetor - Parts Diagram
SKU: mm56_carburetor-group
Price: 1.1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stihl MM56 - Carburetor - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4604 120 0602 Available to backorder	Carburetor 4604/02 (Contains 2 - 25)	£82.50 £68.75
2	ST4128 122 3000 Available to backorder	Spring	£2.32 £1.93
3	STZ000 018 Z000 Available to backorder	Inlet needle	£8.98 £8.98
4	ST4229 121 5000 Available to backorder	Inlet control lever	£3.20 £2.67
5	ST1120 121 9200 Available to backorder	Spindle	£1.32 £1.10
6	ST0000 122 7101 In stock	Screw	Was £4.40 £3.67 Special Price £3.12 £2.60
7	ST4241 129 0901 Available to backorder	Metering gasket	£2.20 £1.83
8	ST4241 121 4702 Available to backorder	Metering diaphragm	£14.96 £12.47

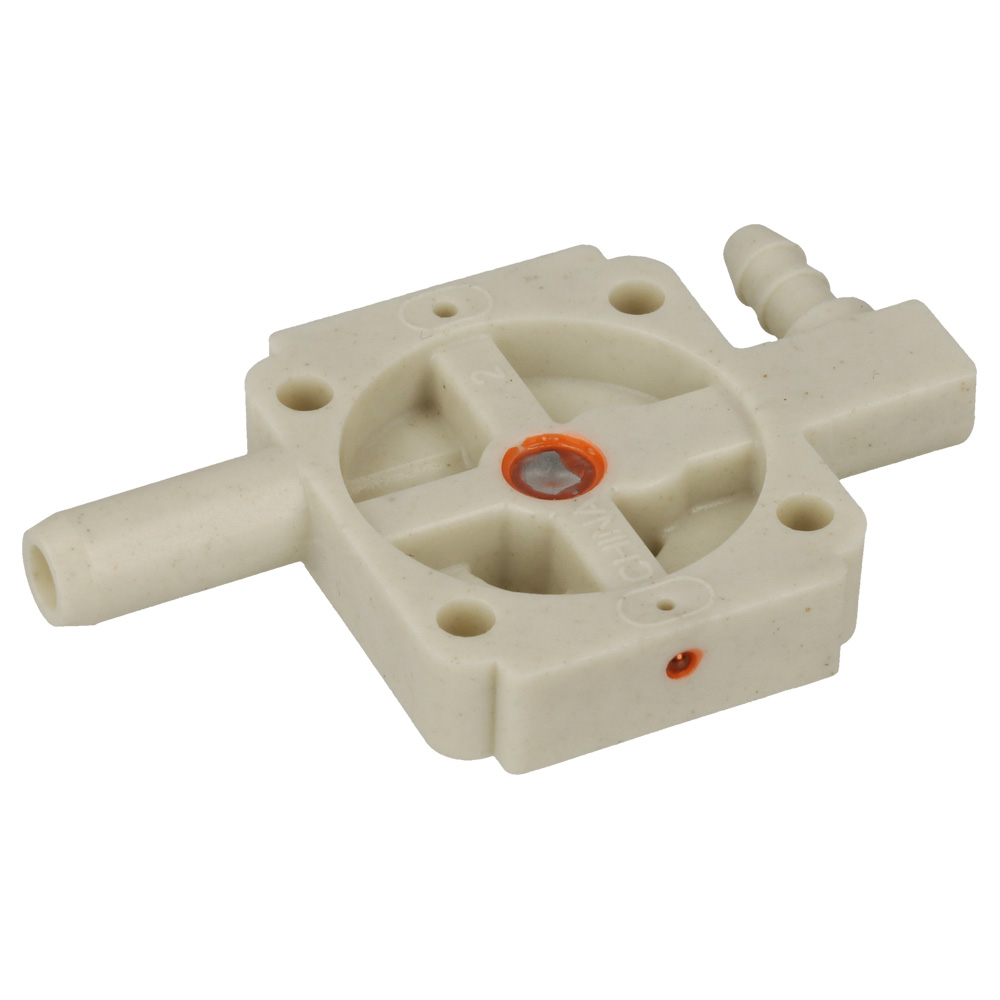

9	ST4604 120 2200 Available to backorder	Flange	£34.00 £28.33
10	ST4226 121 2700 In stock	Cap	£5.62 £4.68
11	ST4140 121 0800 Available to backorder	End cover	£17.16 £14.30
12	ST4241 122 7100 Available to backorder	Screw	£4.18 £3.48
13	ST4241 121 4800 Available to backorder	Pump diaphragm	£14.96 £12.47
14	ST1123 129 0905 In stock	Pump gasket	£2.20 £1.83
15	ST4241 121 0800 Available to backorder	End cover	£17.16 £14.30
16	ST1125 122 4200 Available to backorder	Clamp	£1.66 £1.38
17	ST4604 122 6200 Available to backorder	Idle speed screw	£10.78 £8.98
18	ST1120 122 7800 Available to backorder	Oval head screw	£4.40 £3.67
19	ST1123 121 7800 Available to backorder	Strainer	£3.30 £2.75
20	ST4144 122 6802 Available to backorder	Low speed screw	£10.78 £8.98
21	ST4144 122 6700 Available to backorder	High speed screw	£10.78 £8.98
22	ST4144 121 3501 Available to backorder	Throttle lever	£6.50 £5.42
23	ST4132 122 6600 Available to backorder	Collar screw	£4.40 £3.67
24	ST4604 180 9501 Available to backorder	Choke knob (Contains 25)	£5.28 £4.40
25	ST4144 122 7100 Available to backorder	Screw	£4.18 £3.48
26	ST4241 007 1700 In stock	Set of carburetor parts (Contains 7 + 8 + 13 + 14)	£29.60 £24.67
