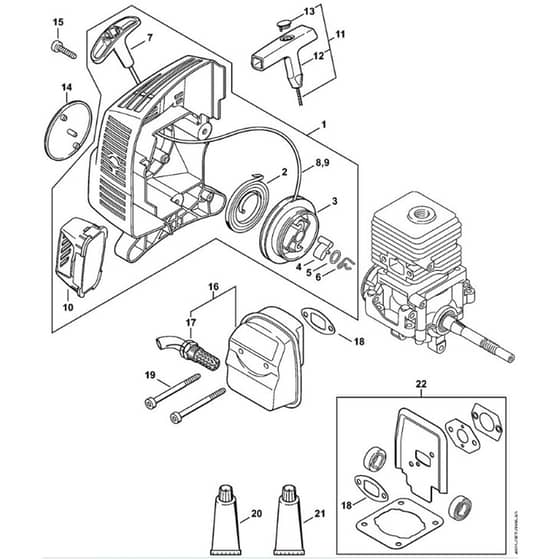

Stihl MM55 - Rewind Starter, Muffler - Parts Diagram

Name: Stihl MM55 - Rewind Starter, Muffler - Parts Diagram
SKU: mm55_rewind_starter_muffler-group
Price: 0.99 GBP
Availability: InStock

Part No. mm55_rewind_starter_muffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MM55 - Rewind Starter, Muffler - Parts Diagram

Description

Stihl MM55 - Rewind Starter, Muffler - Parts Diagram

	Part No.	Details
1	ST4601 190 4000 Available to backorder	Rewind starter (Contains 2 - 8 + 10)	£60.31 £50.26
2	ST4140 190 0601 In stock	Rewind spring	£10.72 £8.93
3	ST4601 195 0400 Available to backorder	Rope rotor	£9.11 £7.59
4	ST4116 195 7200 In stock	Pawl	£2.36 £1.97
5	ST0000 958 0923 In stock	Washer	£1.19 £0.99
6	ST1118 195 3500 Available to backorder	Spring	£1.19 £0.99
7	ST4140 195 3400 In stock	Starter grip	£4.14 £3.45
8	ST4601 195 8200 Available to backorder	Starter rope Ø 3x 910 mm	£9.79 £8.16
9	ST0000 930 2211 Available to backorder	Starter rope Ø 3 mm x 60.8 m	£62.76 £52.30
9	ST0000 930 2208 Available to backorder	Starter rope Ø 3 mm x 30.5 m	£36.29 £30.24
10	ST4140 084 6802 Available to backorder	Spacer	£5.23 £4.36
11	ST0000 190 3405 Available to backorder	Starter grip ElastoStart Ø 3 mm (Contains 12 + 13)	£20.48 £17.07
12	ST0000 195 8203 In stock	Starter rope Ø 3x850 mm	£3.20 £2.67
13	ST0000 195 7000 Available to backorder	Cap	£1.60 £1.33
14	ST4601 967 1500 Available to backorder	Model plate MM 55	£4.68 £3.90
15	ST0000 951 1100 In stock	Screw	£1.66 £1.38
16	ST4140 140 0607 Available to backorder	Muffler (Contains 17)	£20.94 £17.45
17	ST4140 140 6902 Available to backorder	Stub with screen	£11.83 £9.86
18	ST4140 149 0602 In stock	Muffler gasket	£1.52 £1.27
19	ST9075 478 4268 In stock	Pan head self-tapping screw IS-D5x60	£1.52 £1.27
21	ST0781 120 1022 Out of stock	Grease for telescopic boom	£3.37 £2.81
22	ST4140 007 1050 Available to backorder	Set of gaskets (Contains 18)	£14.75 £12.29
