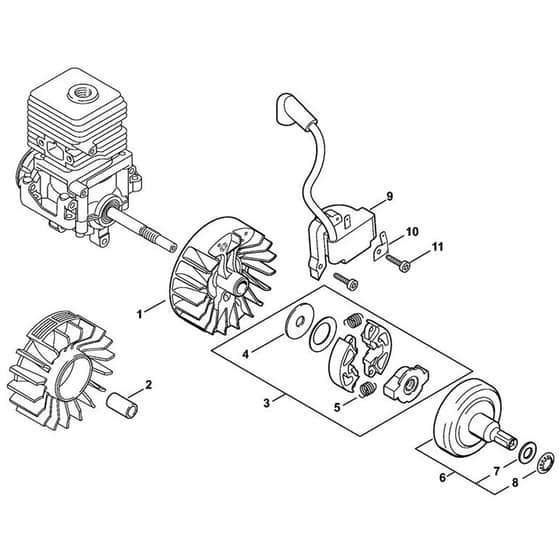

Stihl MM55 - Ignition System, Clutch - Parts Diagram

Name: Stihl MM55 - Ignition System, Clutch - Parts Diagram
SKU: mm55_ignition_system_clutch-group
Price: 0.79 GBP
Availability: InStock

Part No. mm55_ignition_system_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MM55 - Ignition System, Clutch - Parts Diagram

Description

Stihl MM55 - Ignition System, Clutch - Parts Diagram

	Part No.	Details
1	ST4140 400 1202 Available to backorder	Flywheel	£96.24 £80.20
2	ST4140 162 9101 Available to backorder	Spacer sleeve	£4.55 £3.79
3	ST4140 160 2005 In stock	Clutch (Contains 45416)	£43.92 £36.60
4	ST4140 162 8900 Available to backorder	Washer	£2.15 £1.79
5	ST4140 162 7901 In stock	Tension spring	£1.66 £1.38
6	ST4140 160 2910 Available to backorder	Clutch drum (Contains 45511)	£31.63 £26.36
7	ST4140 162 8901 Available to backorder	Washer	£1.14 £0.95
8	ST9417 003 7520 Available to backorder	Push nut 10.2x19x2.7	£1.14 £0.95
9	ST4140 400 1304 In stock	Ignition module	£48.83 £40.69
10	ST4140 431 2100 Available to backorder	Connector tag	£1.60 £1.33
11	ST9075 478 3023 In stock	Pan head self-tapping screw IS-D4x22	£0.95 £0.79
