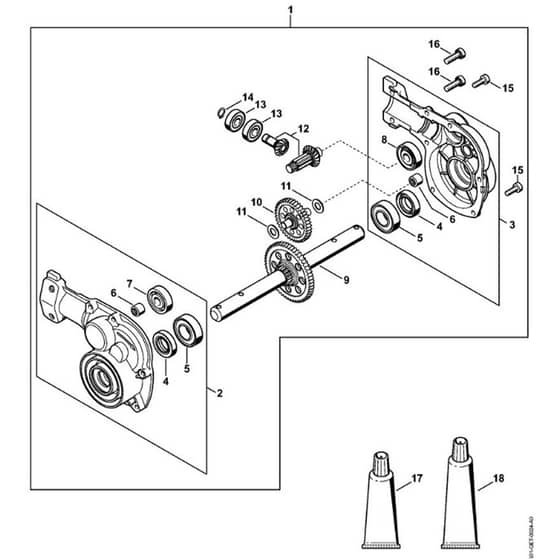

Stihl MM55 - Gear Head - Parts Diagram

Part No. mm55_gear_head-group

Description

	Part No.	Details
1	ST4601 640 0102 Available to backorder	Gearhead (Contains 2 - 16)	£308.88 £257.40
4	ST9630 003 1747 Available to backorder	Oil seal 17x30x7	£7.51 £6.26
5	ST9503 003 5360 Available to backorder	Grooved ball bearing 6003-2Z	£16.61 £13.84
6	ST9513 003 1918 Available to backorder	Needle cage 8x12x10	£7.51 £6.26
7	ST9503 003 6321 Available to backorder	Grooved ball bearing 6200	£13.88 £11.57
8	ST9504 003 0698 Available to backorder	Angular contact ball bearing 7200C	£13.88 £11.57
9	ST4601 640 7501 Available to backorder	Spur gear	£141.96 £118.30
10	ST4601 640 7500 Available to backorder	Spur gear	£39.14 £32.62
11	ST0000 958 0531 Available to backorder	Washer	£1.14 £0.95
12	ST4601 640 7301 Available to backorder	Set of pinions	£77.04 £64.20
13	ST9503 003 9881 Available to backorder	Grooved ball bearing 609-2RS	£10.34 £8.62
14	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
15	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.95 £0.79
16	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.95 £0.79
17	ST0781 120 1117 In stock	Gearbox grease (80g tube)	£9.02 £7.52
