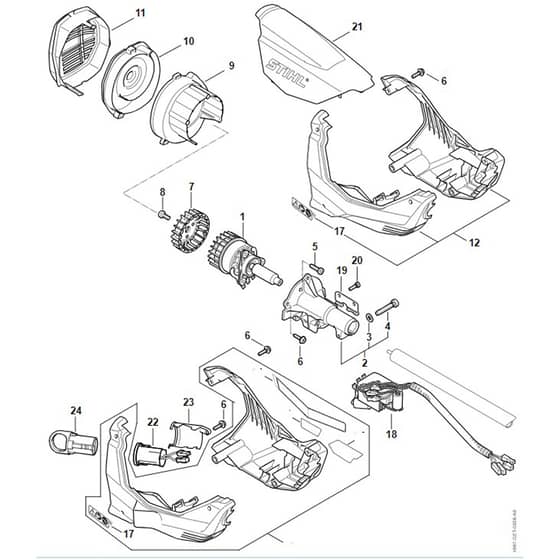

Stihl KMA130 R - Electric Motor, Motor Housing - Parts Diagram

Stihl KMA130 R - Electric Motor, Motor Housing - Parts Diagram
Stihl KMA130 R - Electric Motor, Motor Housing - Parts Diagram

Description

Stihl KMA130 R - Electric Motor, Motor Housing - Parts Diagram

Ref. Img. Part No. Details
  1 Electric motor ST4867 600 0201
Electric motor
Out of stock
£233.04 £194.20

  2 Flange (Contains 45385) ST4867 600 3400
Flange (Contains 45385)
Out of stock
£50.81 £42.34

  3 Washer 6.4 ST9291 021 0140
Washer 6.4
In stock
£0.43 £0.36

  4 Pan head self-tapping screw IS-D6x35 ST9075 478 4720
Pan head self-tapping screw IS-D6x35
Out of stock
£1.39 £1.16

  5 Pan head self-tapping screw IS-D5x18 ST9075 478 4085
Pan head self-tapping screw IS-D5x18
In stock
£1.27 £1.06

  6 Pan head self-tapping screw IS-P4x16 ST9074 477 3025
Pan head self-tapping screw IS-P4x16
Out of stock
£0.86 £0.72

  7 Fan wheel ST4867 607 3000
Fan wheel
Out of stock
£4.02 £3.35

  8 Screw M5x12 10.9 ST4867 951 3500
Screw M5x12 10.9
Out of stock
£0.86 £0.72

  9 Spiral housing ST4867 602 0300
Spiral housing
Out of stock
£13.57 £11.31

  10 Cover ST4867 706 3400
Cover
Out of stock
£7.67 £6.39

  11 Fan grill ST4867 706 8000
Fan grill
Out of stock
£11.71 £9.76

  12 Motor housing (Contains 17) ST4867 600 0801
Motor housing (Contains 17)
Out of stock
£65.16 £54.30

  17 Warning note ST0000 967 7526
Warning note
Out of stock
£2.29 £1.91

  18 Electronic module ST4867 430 1440
Electronic module
Out of stock
£177.36 £147.80

  19 Clip ST4867 431 0200
Clip
Out of stock
£3.28 £2.73

  20 Pan head self-tapping screw IS-D4x12 ST9075 478 2995
Pan head self-tapping screw IS-D4x12
In stock
£0.96 £0.80

  21 Shroud KMA 130 R ST4867 080 1625
Shroud KMA 130 R
Out of stock
£15.24 £12.70

  22 Wiring harness ST4867 400 3421
Wiring harness
Out of stock
£49.30 £41.08

  23 Holder ST4867 608 1400
Holder
Out of stock
£2.65 £2.21

  24 Plug ST4850 432 2301
Plug
Out of stock
£4.32 £3.60


Description

Stihl KMA130 R - Electric Motor, Motor Housing - Parts Diagram
