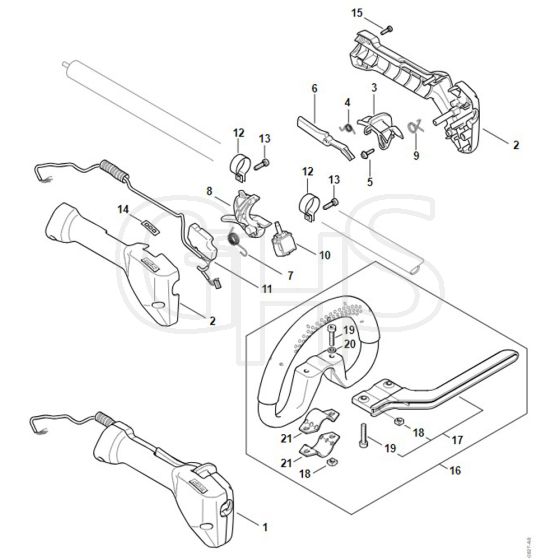

Stihl KMA130 R - Control Handle - Parts Diagram

Stihl KMA130 R - Control Handle - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl KMA130 R - Control Handle - Parts Diagram

Stihl KMA130 R - Control Handle - Parts Diagram

Description

Stihl KMA130 R - Control Handle - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST4867 790 1330 Available to backorder	Control handle (Contains 2 - 15)		£117.70 £98.08
	2		ST4867 790 0520 Available to backorder	Handle		£19.14 £15.95
	3		ST4867 430 3420 Available to backorder	Locking lever		£6.38 £5.32
	4		ST4867 182 4500 Available to backorder	Torsion spring		£1.10 £0.92
	5		ST9104 003 2962 Available to backorder	Self-tapping screw P4x10		£0.76 £0.63
	6		ST4867 435 6301 Available to backorder	Trigger switch lockout		£4.30 £3.58
	7		ST4134 182 4500 Available to backorder	Torsion spring		£1.10 £0.92
	8		ST4867 435 2420 Available to backorder	Trigger switch		£13.30 £11.08
	9		ST4867 182 4501 Available to backorder	Torsion spring		£1.10 £0.92
	10		ST4867 430 0501 In stock	Switch		£10.46 £8.72

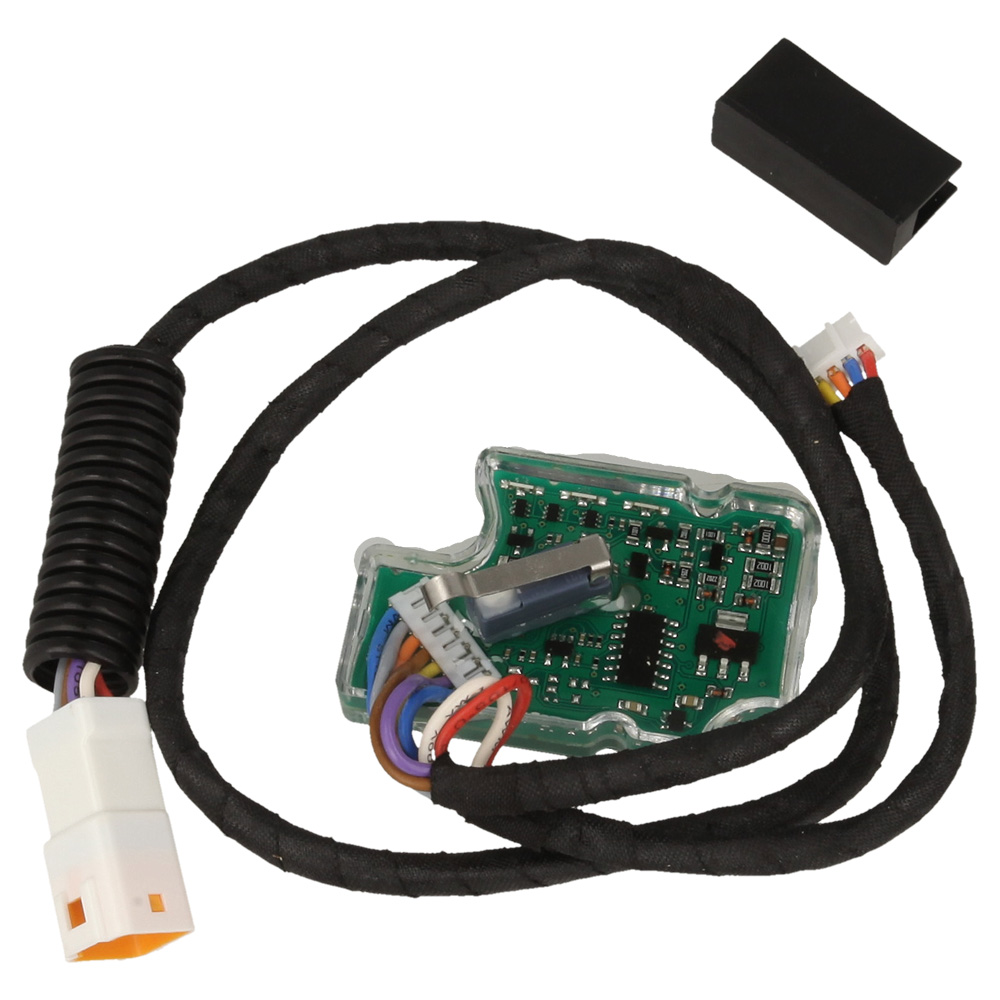

	11		ST4867 430 1460 Available to backorder	Electronic module		£49.84 £41.53
	12		ST4144 791 9400 Available to backorder	Hose clamp		£3.40 £2.83
	13		ST9022 341 0960 In stock	Spline screw IS-M5x12		£0.77 £0.64
	14		ST4867 432 8300 Available to backorder	Sticker for control panel		£2.08 £1.73
	15		ST9074 478 3025 In stock	Pan head screw IS P4x16		£0.76 £0.63
	16		ST4180 790 3408 Available to backorder	Loop handle (Contains 17 - 21)		£21.56 £17.97
	17		ST4130 790 8450 Available to backorder	Bow (Contains 18 + 19)		£15.62 £13.02
	18		ST9222 068 0900 In stock	Square nut M6		£0.44 £0.37
	19		ST9022 341 1370 In stock	Pan head screw IS M6x30		£1.22 £1.02
	20		ST9291 021 0140 In stock	Washer 6.4		£0.36 £0.30
	21		ST4123 791 7400 Available to backorder	Strap		£5.28 £4.40
