Genuine Stihl KM131 R - Carburetor 4180-20 - Parts Diagram

Description

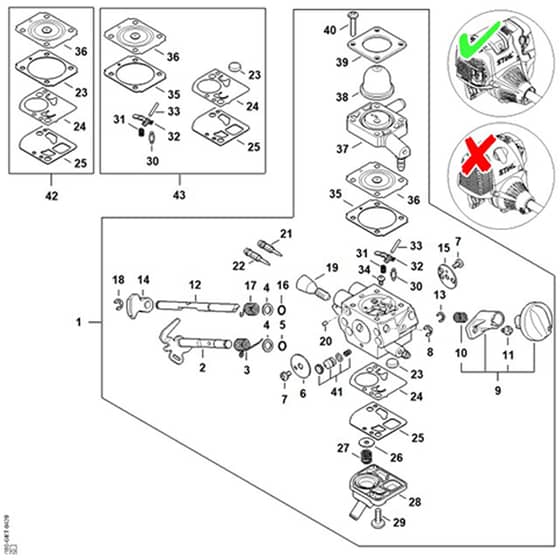

Stihl KM131 R - Carburetor 4180-20 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	ST4180 122 3007 Available to backorder	Spring	£2.32 £1.93
4	ST4180 121 8601 Available to backorder	Washer	£2.74 £2.28
5	ST4180 122 3601 Available to backorder	Sealing ring	£5.94 £4.95
6	ST4180 121 3301 Available to backorder	Throttle shutter	£4.40 £3.67
7	ST1125 122 7403 In stock	Round head screw	£4.40 £3.67
8	ST1125 122 9001 Available to backorder	E-clip	£2.08 £1.73
9	STZ000 042 K001 In stock	Choke lever kit (Contains 46336)	£6.83 £5.69
10	ST0000 997 3101 In stock	Compression spring	£1.10 £0.92
11	ST1120 122 6601 Available to backorder	Collar screw	£4.18 £3.48
12	ST4180 121 3005 In stock	Choke shaft	£20.46 £17.05
13	ST4282 122 9000 In stock	E-clip	£2.08 £1.73
14	ST4180 121 6601 Available to backorder	Lever	£2.54 £2.12
15	ST4180 121 2900 Available to backorder	Choke shutter	£4.40 £3.67
17	ST4180 122 3008 Available to backorder	Spring	£2.32 £1.93
18	ST4147 122 9001 Available to backorder	E-clip	£2.08 £1.73
19	STZ010 035 A010 Available to backorder	Idle speed screw assy	£10.78 £8.98
20	ST1125 122 4200 Available to backorder	Clamp	£1.66 £1.38
21	STZ000 030 Z035 Available to backorder	High speed screw	£10.78 £8.98
22	STZ000 031 Z039 Available to backorder	Low speed screw	£10.78 £8.98
23	ST1123 121 7800 Available to backorder	Strainer	£3.30 £2.75
24	ST4180 121 4802 In stock	Pump diaphragm	£14.96 £12.47
25	ST4180 129 0908 In stock	Pump gasket	£2.20 £1.83
26	ST4180 121 8602 Available to backorder	Washer	£1.10 £0.92
27	ST4180 122 3006 Available to backorder	Spring	£2.32 £1.93
28	ST4180 121 0803 Available to backorder	End cover	£17.16 £14.30
29	ST4242 122 7100 Available to backorder	Screw	£5.84 £4.87
30	STZ000 018 Z000 Available to backorder	Inlet needle	£9.63 £9.63
31	ST1123 122 3001 Available to backorder	Spring	£2.54 £2.12
32	ST4229 121 5000 Available to backorder	Inlet control lever	£3.20 £2.67
33	ST1120 121 9200 Available to backorder	Spindle	£1.32 £1.10
34	ST0000 122 7101 In stock	Screw	Was £4.40 £3.67 Special Price £3.12 £2.60
35	ST1141 129 0900 Available to backorder	Metering gasket	£2.20 £1.83
36	ST1141 121 4730 Available to backorder	Metering diaphragm	£14.96 £12.47
37	ST4180 120 2209 Available to backorder	Flange	£34.22 £28.52
38	ST4226 121 2700 In stock	Cap	£5.62 £4.68
39	ST4140 121 0800 Available to backorder	End cover	£17.16 £14.30
40	ST4140 122 7100 Available to backorder	Screw	£4.18 £3.48
41	ST4180 120 9704 Available to backorder	Pump piston kit	£16.06 £13.38
42	ST4180 007 1035 Available to backorder	Set of carburetor parts (Contains 24 + 25 + 35 + 36)	£29.60 £24.67
43	STZ010 001 K018 Available to backorder	Carburetor Repair Kit RB-288 (Contains 23 - 25 + 30 - 33 + 35 + 36)	£56.52 £47.10
