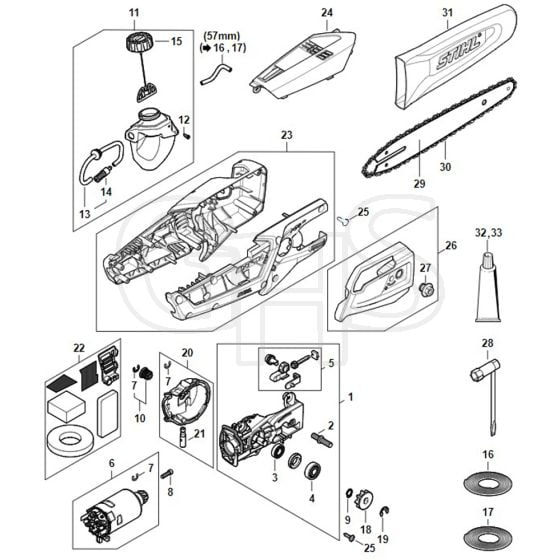

Stihl HTA50.0 - Powerhead - Parts Diagram

Name: Stihl HTA50.0 - Powerhead - Parts Diagram
SKU: hta50_0_powerhead-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HTA50.0 - Powerhead - Parts Diagram

Description

Stihl HTA50.0 - Powerhead - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STLA02 600 1600 Available to backorder	Mounting plate (Contains 2 - 5)	£105.60 £88.00
2	STLA02 664 2400 Available to backorder	Collar screw M8	£3.40 £2.83
3	ST9503 003 9898 Available to backorder	Grooved ball bearing DIN625-6900-2RS	£10.24 £8.53
4	ST9503 003 9899 Available to backorder	Grooved ball bearing DIN625-6000-2RS	£13.30 £11.08

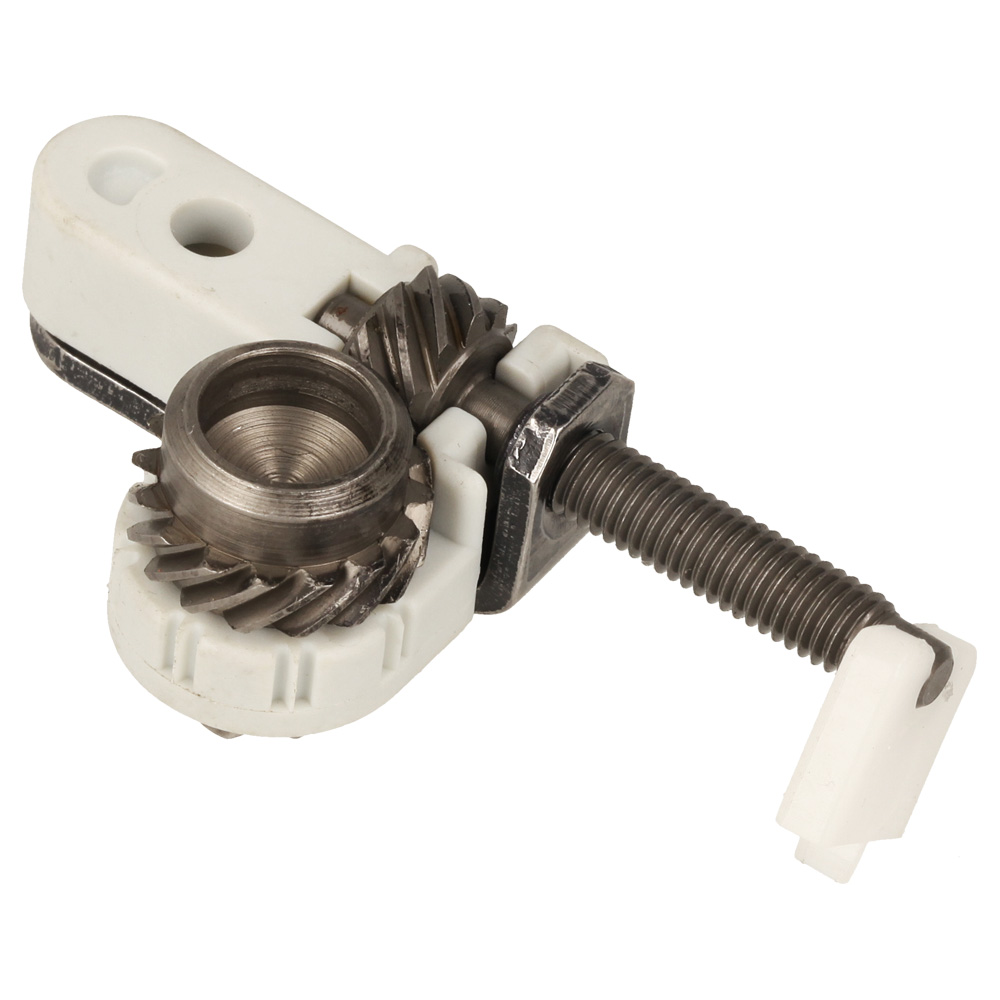

5	STLA02 640 1900 Available to backorder	Tensioner slide	£8.26 £6.88
6	STLA02 600 0202 Available to backorder	Electric motor (Contains 7)	£111.10 £92.58
9	STLA02 985 1600 Available to backorder	Retaining ring	£2.08 £1.73
10	STLA02 600 4200 Available to backorder	Worm gear (Contains 7)	£2.54 £2.12
11	STLA02 350 4401 Available to backorder	Oil tank (Contains 12 - 15)	£19.58 £16.32
12	ST0747 313 6810 Available to backorder	Valve	£3.86 £3.22
13	STLA02 640 3400 Available to backorder	Oil hose (Contains 14)	£21.78 £18.15
14	ST1123 640 3800 In stock	Pickup body	£4.84 £4.03
15	STLA02 350 0500 In stock	Filler cap	£7.26 £6.05
16	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£3.96 £3.30
17	ST0712 923 8004 In stock	Hose 3.1x5.7 mm x 10 m R3	£33.88 £28.23
18	STLA02 642 1200 Available to backorder	Chain sprocket 1/4" 8T	£8.14 £6.78
19	ST9460 624 0801 In stock	E-clip 8x13	£0.34 £0.28
20	STLA02 640 0501 Available to backorder	Gear housing (Contains 7 + 21)	£20.56 £17.13
21	ST4182 640 3200 Available to backorder	Oil pump 0.55	£25.08 £20.90
22	STLA02 080 1900 Available to backorder	Filter	£4.18 £3.48
23	STLA02 600 0800 Available to backorder	Motor housing	£48.40 £40.33

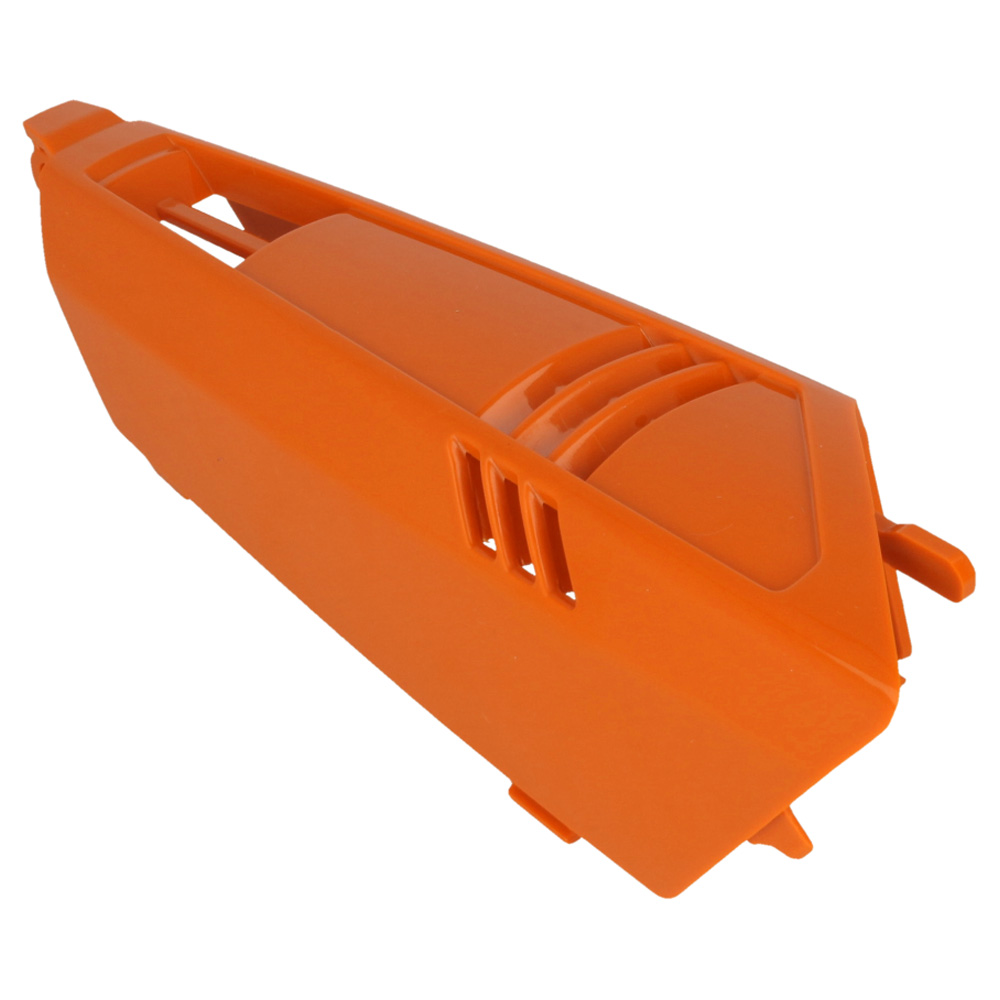

24	STLA02 602 0400 Available to backorder	Cover	£5.72 £4.77
26	STLA02 640 1700 Available to backorder	Chain sprocket cover (Contains 27)	£22.22 £18.52
27	ST0000 995 0800 Available to backorder	Collar nut M8	£2.86 £2.38
28	ST1129 890 3401 Available to backorder	Combination wrench	£9.02 £7.52
29	ST3005 008 3403 In stock	Light 01 \| 25cm/10" \| 1/4" P \| 11mm/.043"	£29.86 £24.88
30	ST3670 000 0056 In stock	Picco Micro 3 \| 71 PM3 56 \| 1/4" P \| 11mm/.043" \| 56	£18.88 £15.73
31	ST0000 792 9170 In stock	Chain scabbard	£3.30 £2.75
32	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£8.40 £7.00
33	ST0781 120 1110 In stock	Multipurpose grease 225 g	£20.48 £17.07
