Stihl HTA150.0 - Gear Head - Parts Diagram

Description

Stihl HTA150.0 - Gear Head - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	ST4182 640 0557 Available to backorder	Gear housing (Contains 3 - 7 + 9 - 13)	£117.70 £98.08
3	ST4182 350 0306 Available to backorder	Oil tank (Contains 4 - 6)	£24.20 £20.17
4	ST4182 351 1000 Available to backorder	Gasket	£1.88 £1.57
5	ST0000 350 0529 Available to backorder	Filler cap (Contains 6)	£9.14 £7.62
6	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
7	ST4182 664 2401 Available to backorder	Collar screw M8	£3.40 £2.83
8	ST0000 664 2415 Available to backorder	Collar screw D9/M8	£3.40 £2.83
9	ST1128 640 9100 Available to backorder	Valve	£4.40 £3.67
10	STLA01 640 3400 Available to backorder	Oil hose (Contains 11)	£21.34 £17.78
11	ST1123 640 3800 In stock	Pickup body	£4.84 £4.03
12	ST4138 640 3200 Available to backorder	Oil pump	£25.08 £20.90
13	ST1123 648 6600 Available to backorder	Bumper strip	£1.88 £1.57
14	ST0000 951 1100 In stock	Screw	£1.54 £1.28
15	ST4182 640 4300 Available to backorder	Cover	£7.26 £6.05
17	ST4138 642 8201 Available to backorder	Ring	£6.70 £5.58
18	ST4182 640 7317 Available to backorder	Set of pinions	£138.60 £115.50
19	ST9503 003 5190 Available to backorder	Grooved ball bearing 6001-2RS	£13.30 £11.08
20	ST9503 003 9860 Available to backorder	Deep-groove ball bearing 609-2RS	£11.98 £9.98
21	ST4182 641 0402 Available to backorder	Gearbox cover	£10.56 £8.80
22	ST9022 371 1073 In stock	Spline screw IS-M5x32	£1.00 £0.83
23	ST9022 341 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83

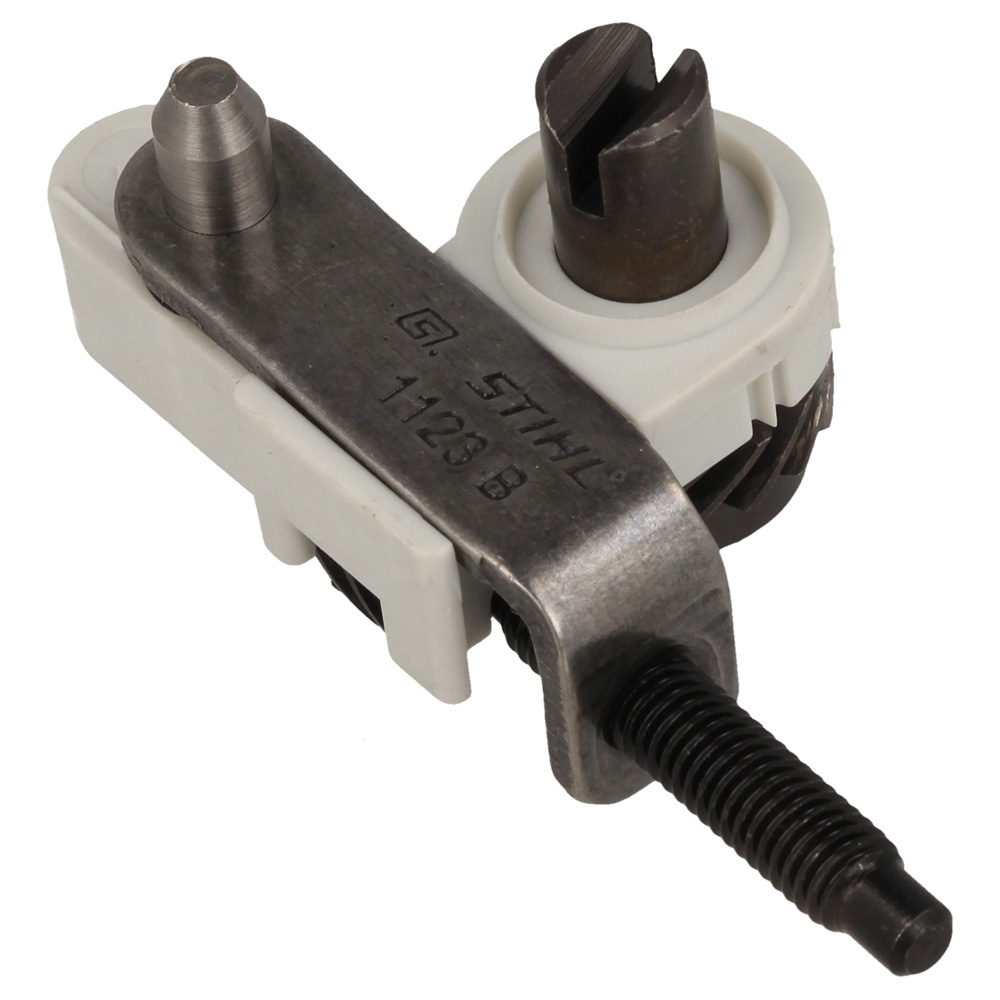

24	ST4182 660 0700 Available to backorder	Chain tightener	£22.44 £18.70
25	ST4182 160 2100 Available to backorder	Friction clutch (Contains 26)	£9.34 £7.78
26	STLA01 162 4200 Available to backorder	Collar screw	£3.74 £3.12
27	ST0000 640 2003 In stock	Chain sprocket 3/8"P 7 teeth (Contains 28)	£10.78 £8.98
28	ST4182 162 8900 In stock	Washer	£2.54 £2.12

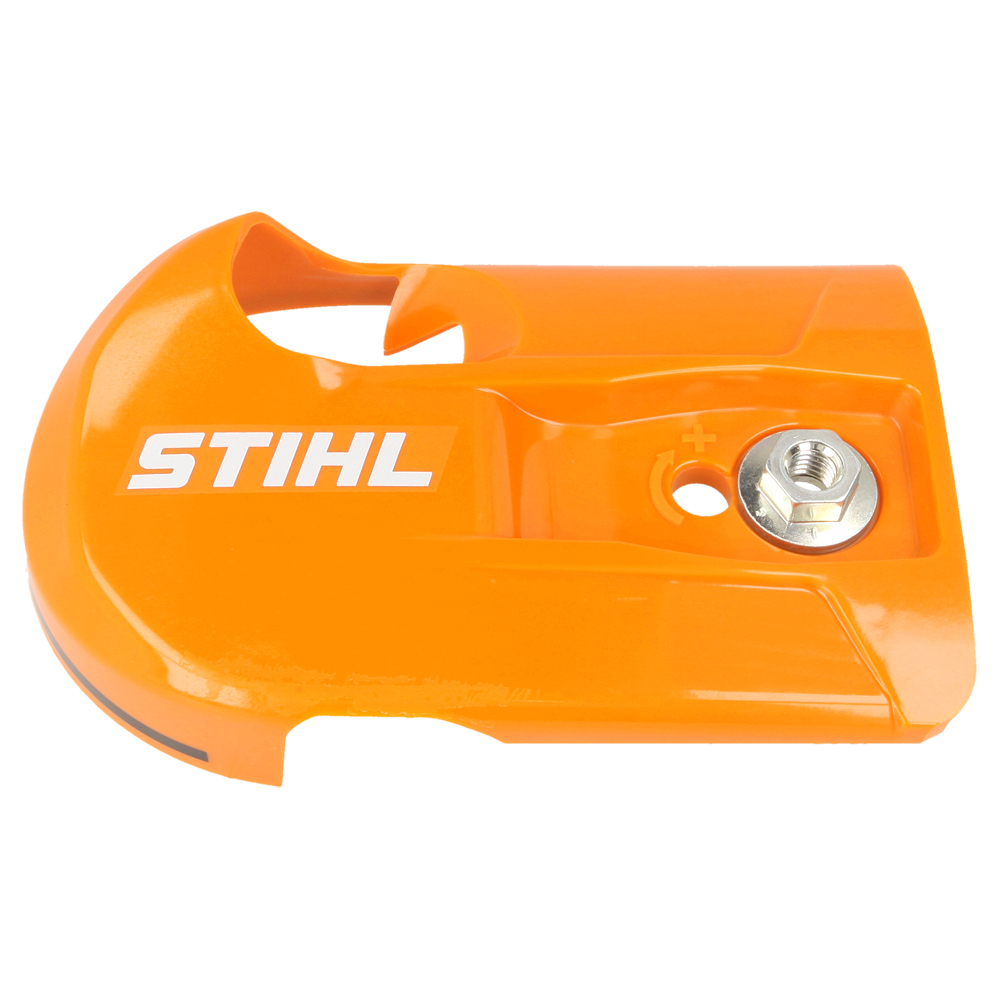

29	ST4182 640 1702 In stock	Chain sprocket cover	£22.34 £18.62
30	STLA01 820 7800 Available to backorder	Hook (Contains 31 - 33)	£8.68 £7.23
31	ST9022 341 0975 Available to backorder	Spline screw IS-M5x14	£0.76 £0.63
32	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.77 £0.64
33	ST9210 261 0700 Available to backorder	Hexagon nut M5	£0.48 £0.40
34	ST3005 000 3905 In stock	Light 01 \| 30cm/12" \| 3/8" P \| 11mm/.043"	£36.90 £30.75
35	ST3610 000 0044 In stock	Picco Micro Mini 3 \| 61 PMM3 44 \| 3/8" P \| 11mm/.043" \| 44	£16.30 £13.58
37	ST3005 008 7603 Available to backorder	Light 01 \| 25cm/10" \| 3/8" P \| 11mm/.043"	£41.82 £34.85
38	ST3610 002 0039 In stock	Picco Micro Mini 3 \| 61 PMM3 39 \| 3/8" P \| 11mm/.043" \| 39	£14.52 £12.10
40	ST1129 890 3401 In stock	Combination wrench	£9.02 £7.52
41	ST0781 120 1004 Available to backorder	Gear lubricant 40 g	£25.50 £21.25
