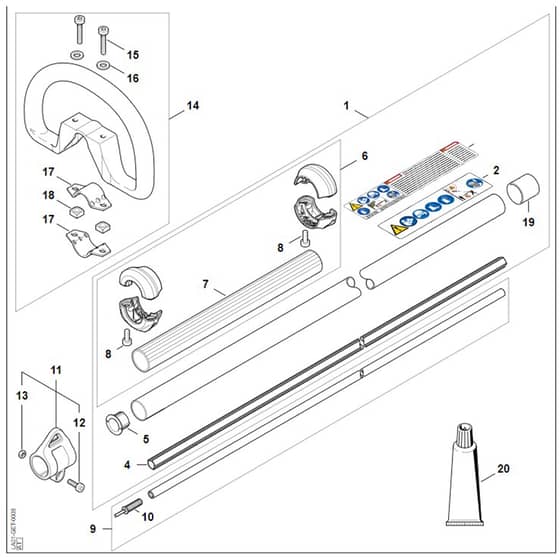

Stihl HTA150.0 - Drive Tube Assembly - Parts Diagram

Stihl HTA150.0 - Drive Tube Assembly - Parts Diagram
Stihl HTA150.0 - Drive Tube Assembly - Parts Diagram

Description

Stihl HTA150.0 - Drive Tube Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Drive tube assembly 25.5 mm x 1 STLA01 710 7115
Drive tube assembly 25.5 mm x 1 " (Contains 2 + 4 - 8 + 19)
Out of stock
£65.40 £54.50

  2 Warning pictogram STLA01 967 7201
Warning pictogram
Out of stock
£2.29 £1.91

  4 Flexible liner STLA01 711 7310
Flexible liner
Out of stock
£12.97 £10.81

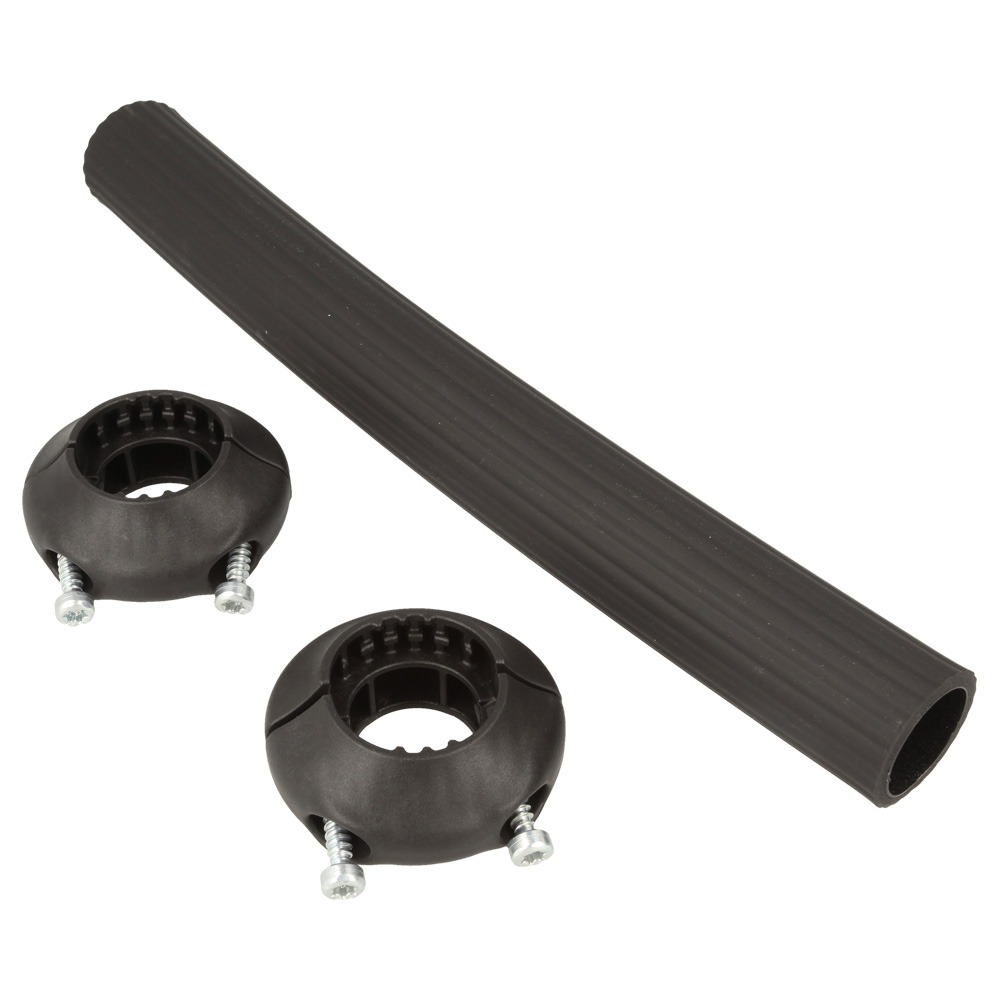

  6 Limit stop kit (Contains 45511) STHA04 007 1001
Limit stop kit (Contains 45511)
Out of stock
£17.40 £14.50

  7 Handle hose 270 mm / 10 5/8 ST4230 791 2001
Handle hose 270 mm / 10 5/8"
Out of stock
£9.30 £7.75

  8 Screw IS P5x16 ST9074 477 4130
Screw IS P5x16
In stock
£1.13 £0.94

  9 Drive shaft (Contains 10) STLA01 710 3210
Drive shaft (Contains 10)
Out of stock
£59.57 £49.64

  10 Driver ST4182 740 3503
Driver
Out of stock
£17.40 £14.50

  11 Carrying ring (Contains 12 + 13) ST0000 790 8803
Carrying ring (Contains 12 + 13)
Out of stock
£12.95 £10.79

  12 Pan head screw IS M5x16 ST9022 341 0980
Pan head screw IS M5x16
In stock
£1.13 £0.94

  13 Hexagon nut M5 ST9210 261 0700
Hexagon nut M5
Out of stock
£0.48 £0.40

  14 Loop handle (Contains 15 - 17) ST4180 790 3406
Loop handle (Contains 15 - 17)
Out of stock
£21.53 £17.94

  15 Pan head screw IS M6x30 ST9022 341 1370
Pan head screw IS M6x30
Out of stock
£1.56 £1.30

  16 Washer 6.4 ST9291 021 0140
Washer 6.4
In stock
£0.43 £0.36

  17 Strap ST4123 791 7400
Strap
Out of stock
£6.04 £5.03

  18 Square nut M6 ST9222 068 0900
Square nut M6
Out of stock
£0.55 £0.46

  19 Cap ST4133 717 2000
Cap
In stock
£2.40 £2.00

  20 Multipurpose grease 225 g ST0781 120 1110
Multipurpose grease 225 g
In stock
£23.06 £19.22


Description

Stihl HTA150.0 - Drive Tube Assembly - Parts Diagram
