Stihl HTA135 - Gear Head - Parts Diagram

Description

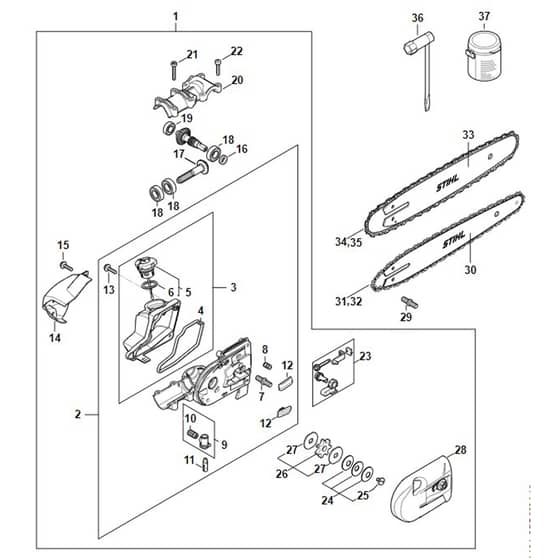

Stihl HTA135 - Gear Head - Parts Diagram

	Part No.	Details
1	ST4182 640 0145 Available to backorder	Gear head (Contains 2 - 28)	£380.16 £316.80
2	ST4182 640 0555 Available to backorder	Gear housing (Contains 3 - 13)	£119.88 £99.90
3	ST4182 350 0306 Available to backorder	Oil tank (Contains 4 - 6)	£25.03 £20.86
4	ST4182 351 1000 Available to backorder	Gasket	£1.94 £1.62
5	ST0000 350 0529 In stock	Filler cap (Contains 6)	£9.80 £8.17
6	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
7	ST4182 664 2401 Available to backorder	Collar screw M8	£3.52 £2.93
8	ST1128 640 9100 In stock	Valve	£4.72 £3.93
9	ST4182 640 3800 Available to backorder	Pickup body (Contains 10)	£5.00 £4.17
10	ST1117 647 6801 Available to backorder	Strainer	£2.96 £2.47
11	ST4138 640 3200 Available to backorder	Oil pump	£25.94 £21.62
12	ST1123 648 6600 Available to backorder	Bumper strip	£2.02 £1.68
13	ST0000 951 1100 In stock	Screw	£1.66 £1.38
14	ST4182 640 4300 Available to backorder	Cover	£7.51 £6.26
16	ST4138 642 8201 Available to backorder	Ring	£6.94 £5.78
17	ST4182 640 7317 Available to backorder	Set of pinions	£138.60 £115.50
18	ST9503 003 5193 Available to backorder	Grooved ball bearing DIN625-6001-2RS	£13.76 £11.47
19	ST9503 003 9863 Available to backorder	Grooved ball bearing DIN625-609-2RS	£12.40 £10.33
20	ST4182 641 0401 In stock	Gearbox cover	£11.32 £9.43
21	ST9022 371 1073 In stock	Spline screw IS-M5x32	£1.08 £0.90
22	ST9022 341 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
23	ST4182 660 0700 Available to backorder	Chain tightener	£23.21 £19.34
24	ST4182 160 2100 Available to backorder	Friction clutch (Contains 25)	£9.66 £8.05
25	STLA01 162 4200 Available to backorder	Collar screw	£3.86 £3.22
26	ST0000 640 2003 In stock	Chain sprocket 3/8"P 7 teeth (Contains 27)	£11.56 £9.63
27	ST4182 162 8900 In stock	Washer	£2.72 £2.27
28	ST4182 640 1702 In stock	Chain sprocket cover	£23.94 £19.95
29	ST0000 664 2415 Available to backorder	Collar screw D9/M8	£3.52 £2.93
30	ST3005 000 3905 In stock	Light 01 \| 30cm/12" \| 3/8" P \| 11mm/.043"	£39.54 £32.95
31	ST3610 000 0044 In stock	Picco Micro Mini 3 \| 61 PMM3 44 \| 3/8" P \| 11mm/.043" \| 44	£17.16 £14.30
34	ST3610 002 0039 In stock	Picco Micro Mini 3 \| 61 PMM3 39 \| 3/8" P \| 11mm/.043" \| 39	£14.52 £12.10
36	ST1129 890 3401 In stock	Combination wrench	£9.67 £8.06
37	ST0781 120 1004 Available to backorder	Gear lubricant 40 g	£26.38 £21.98
