Stihl HTA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

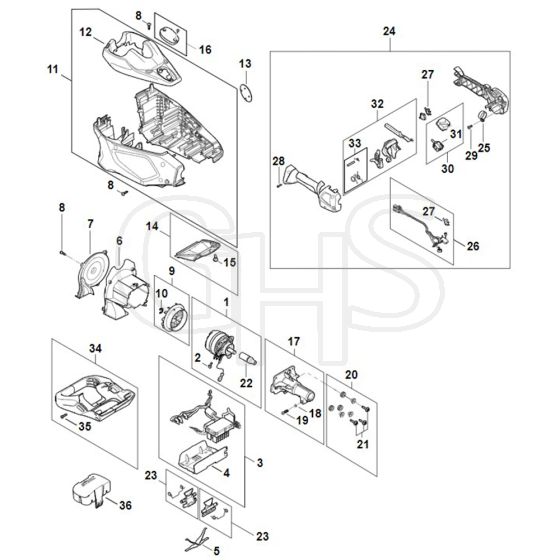

Stihl HTA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

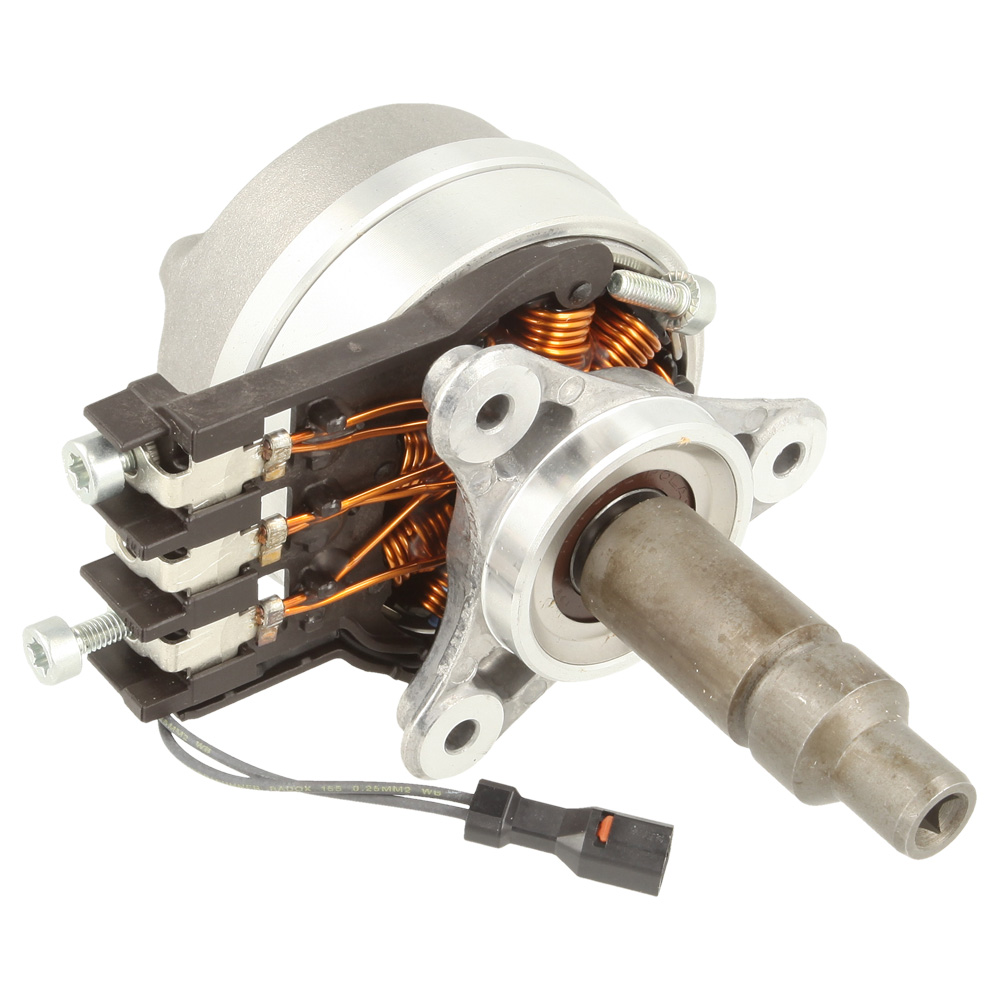

1	STLA01 600 0202 Available to backorder	Electric motor (Contains 2+ 22)	£201.00 £167.50
2	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.76 £0.63
3	STLA01 430 1402 Available to backorder	Electronic module (Contains 4)	£193.60 £161.33
4	STFA01 404 0800 Available to backorder	Contact plate	£12.88 £10.73
5	STMA01 791 3100 Available to backorder	Spring	£2.32 £1.93
6	STFA01 820 8100 Available to backorder	Spiral housing	£21.22 £17.68
7	STFA01 706 3400 Available to backorder	Cover	£5.18 £4.32
8	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.76 £0.63
9	STFA01 600 3200 Available to backorder	Fan wheel (Contains 10)	£8.14 £6.78
10	ST9460 624 0800 Available to backorder	E-clip 8	£0.48 £0.40

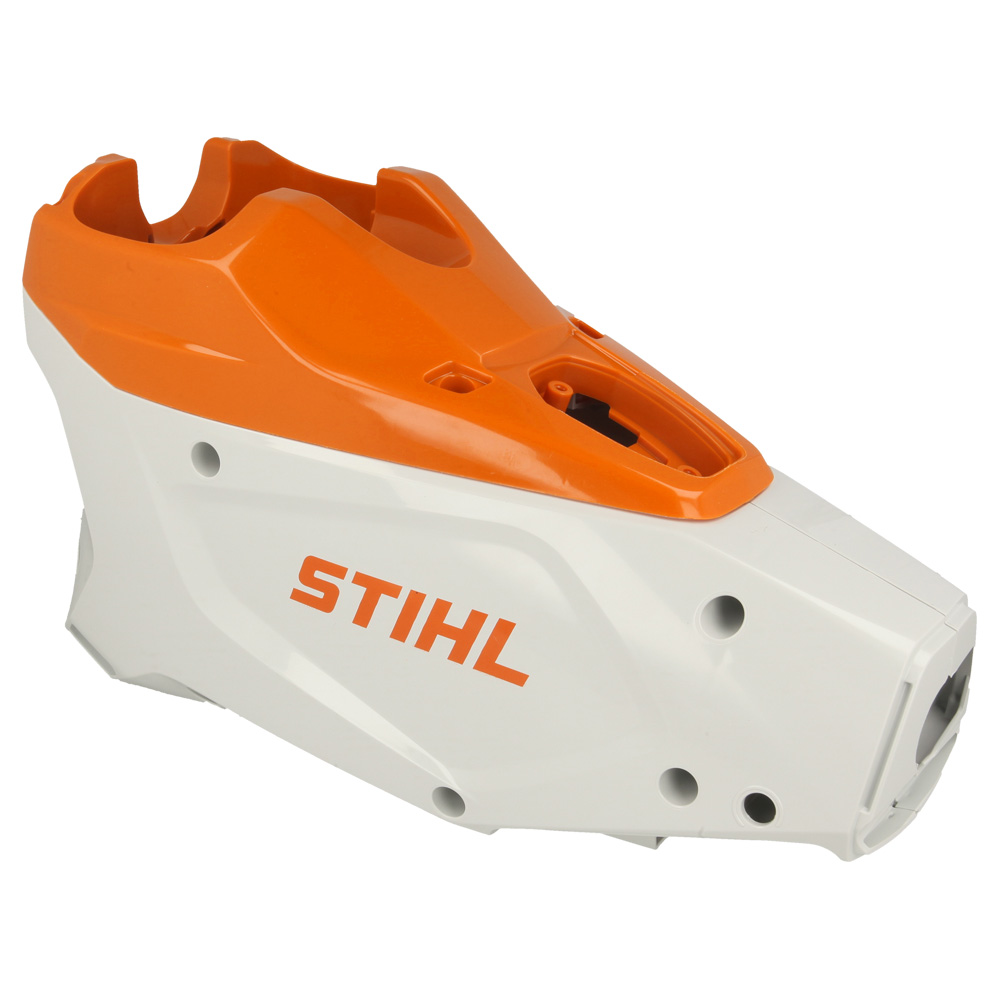

11	STFA01 600 0802 Available to backorder	Motor housing (Contains 12)	£127.80 £106.50
12	STFA01 084 0900 Available to backorder	Shroud	£26.62 £22.18
13	STLA01 967 1500 Available to backorder	Model plate HTA 135	£4.52 £3.77
14	STFA01 080 1900 Available to backorder	Filter (Contains 15)	£16.18 £13.48
15	ST9022 319 1028 Available to backorder	Screw IS-M5x14	£0.76 £0.63
16	STFA01 820 8000 Available to backorder	Cover	£5.18 £4.32
17	STFA01 600 3401 Available to backorder	Flange (Contains 18 + 19)	£40.04 £33.37
18	ST9291 021 0140 In stock	Washer 6.4	£0.36 £0.30
19	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.22 £1.02
20	STFA01 007 1000 Available to backorder	Screw kit (Contains 21)	£10.24 £8.53
21	ST0000 951 1100 In stock	Screw	£1.54 £1.28
22	STFA01 764 4200 Available to backorder	Carrier	£15.18 £12.65
23	ST4851 430 9800 In stock	Trigger interlock	£4.96 £4.13
24	STLA01 790 1300 Available to backorder	Control handle (Contains 25 - 33)	£107.26 £89.38
25	STFA01 790 4700 Available to backorder	Clamp	£4.30 £3.58
26	STFA01 430 2220 Available to backorder	Wiring harness (Contains 27)	£22.66 £18.88
27	ST1250 430 0500 In stock	Switch	£2.98 £2.48
28	ST9074 478 3025 In stock	Pan head screw IS P4x16	£0.76 £0.63
29	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.77 £0.64
30	STFA01 430 0501 Available to backorder	Switch (Contains 31)	£14.52 £12.10
31	ST4867 430 0501 In stock	Switch	£10.46 £8.72
32	STFA01 007 3820 In stock	Control lever kit (Contains 33)	£14.62 £12.18
33	STFA01 007 1320 Available to backorder	Set of mounting hardware	£2.86 £2.38
34	STLA01 007 1002 Available to backorder	Foot mounting kit (Contains 35)	£27.86 £23.22
35	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.88 £0.73
36	ST4850 602 0900 Available to backorder	Cover	£4.52 £3.77
