Stihl HTA135 - Drive Tube Assembly - Parts Diagram

Stihl HTA135 - Drive Tube Assembly - Parts Diagram
Stihl HTA135 - Drive Tube Assembly - Parts Diagram

Description

Stihl HTA135 - Drive Tube Assembly - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Drive tube assembly (Contains 2 - 32) STLA01 710 7101
Drive tube assembly (Contains 2 - 32)
 Out of stock
£488.40 £407.00

  2 Drive tube assembly 38.0-mm-x-1-1/2-mm (Contains 3 - 7) STLA01 710 7104
Drive tube assembly 38.0-mm-x-1-1/2-mm (Contains 3 - 7)
 Out of stock
£159.24 £132.70

  3 Warning pictogram STLA01 967 7201
Warning pictogram
 Out of stock
£2.29 £1.91

  5 Spacer ring ST4182 711 9822
Spacer ring
 Out of stock
£6.48 £5.40

  6 Bearing ST4182 740 3209
Bearing
 Out of stock
£48.24 £40.20

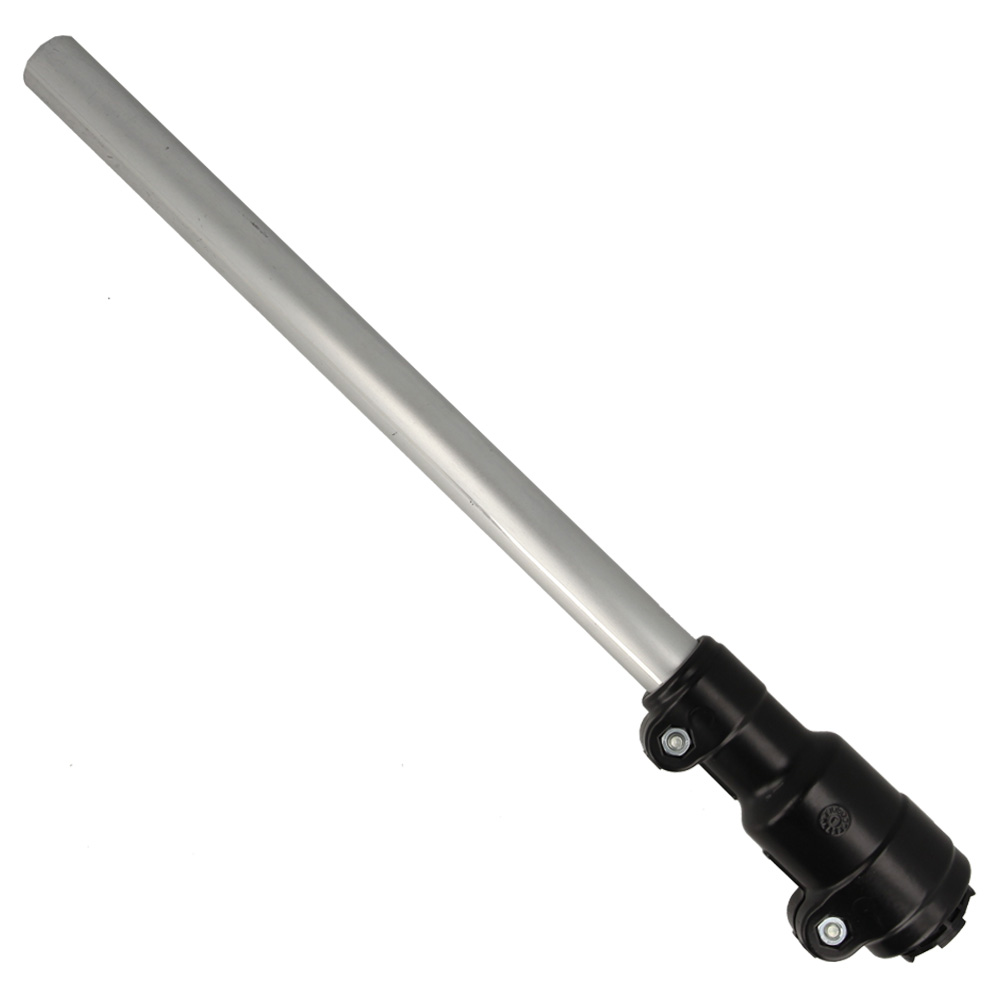

  8 Drive tube assembly 25.4-mm-x-1-mm (Contains 9 - 13) ST4182 710 7138
Drive tube assembly 25.4-mm-x-1-mm (Contains 9 - 13)
 Out of stock
£56.52 £47.10

  9 Drive tube assembly 25.4 mm x 1 mm (Contains 10) ST4182 710 7137
Drive tube assembly 25.4 mm x 1 mm (Contains 10)
 Out of stock
£39.12 £32.60

  10 Blind rivet 4x6.5 ST9438 003 3171
Blind rivet 4x6.5
 Out of stock
£1.13 £0.94

  11 Washer 6.4 ST9294 021 0140
Washer 6.4
 Out of stock
£0.40 £0.33

  12 Pan head screw IS M6x30 ST9022 341 1370
Pan head screw IS M6x30
 Out of stock
£1.56 £1.30

  13 Hexagon nut M6 ST9210 319 0900
Hexagon nut M6
 In stock
£0.55 £0.46

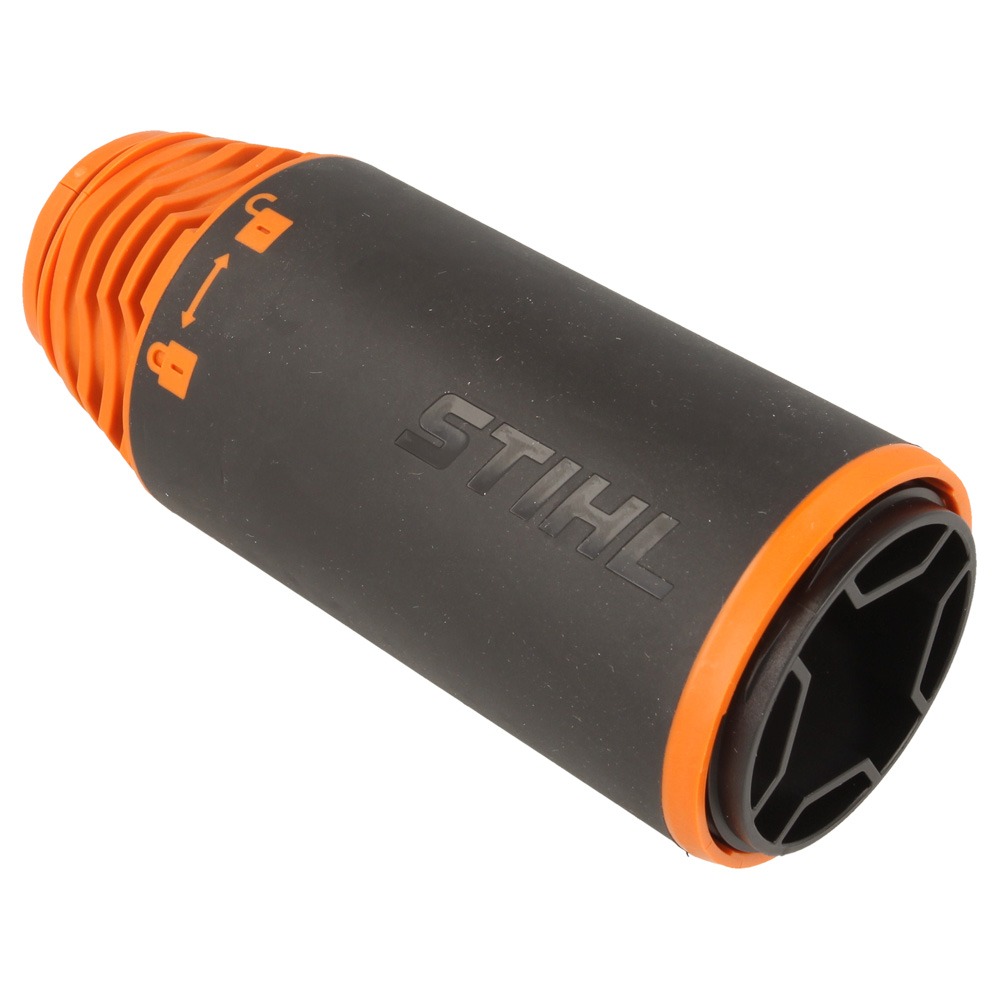

  14 Nut (Contains 15 - 21) ST4182 820 1600
Nut (Contains 15 - 21)
 Out of stock
£76.08 £63.40

  15 Blind rivet 3x5-ST/ST ST9440 003 1851
Blind rivet 3x5-ST/ST
 Out of stock
£0.86 £0.72

  16 Clamp ST4182 716 6520
Clamp
 Out of stock
£23.88 £19.90

  17 Nut ST4182 716 0320
Nut
 Out of stock
£21.72 £18.10

  18 Kit spring washer ST4182 007 1005
Kit spring washer
 Out of stock
£9.46 £7.88

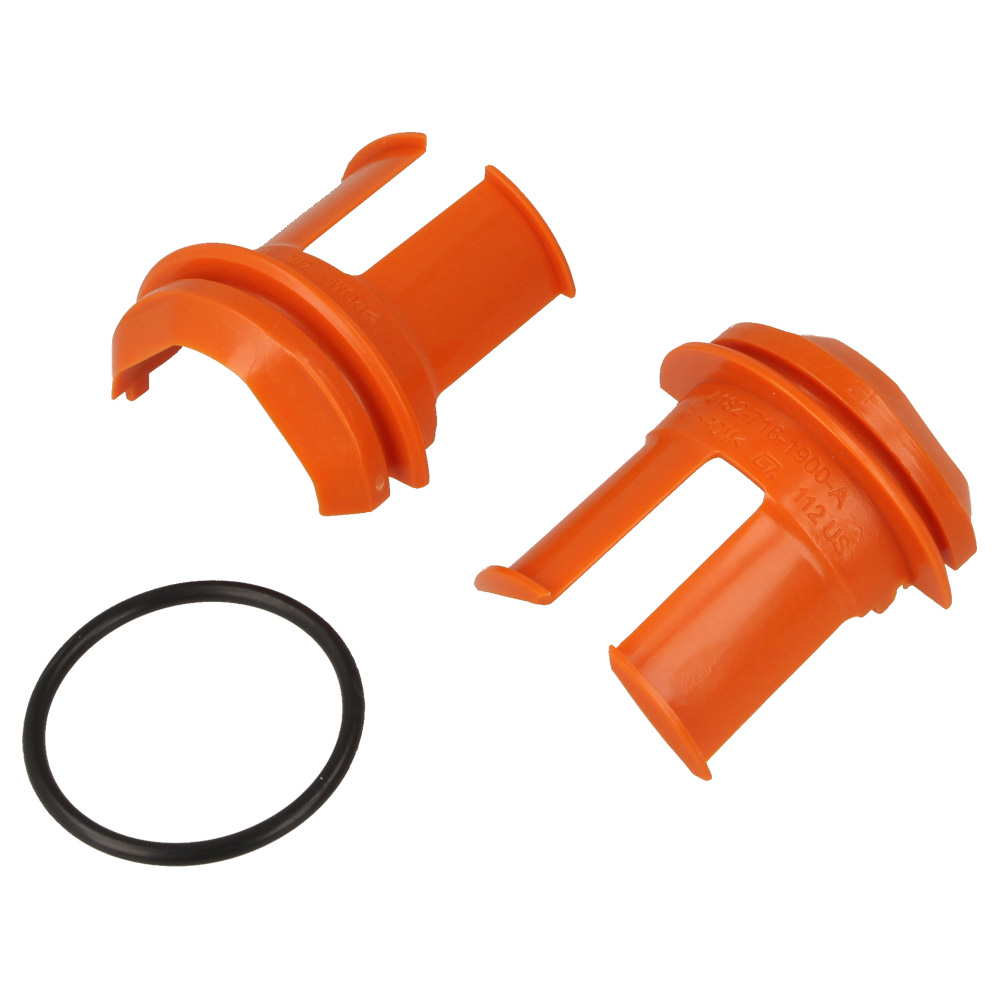

  19 Set O-ring (Contains 20) ST4182 007 0800
Set O-ring (Contains 20)
 Out of stock
£6.48 £5.40

  21 Spacer ring ST4182 716 9400
Spacer ring
 Out of stock
£6.48 £5.40

  22 Cap kit (Contains 23 + 24) ST4182 007 1010
Cap kit (Contains 23 + 24)
 Out of stock
£8.64 £7.20

  23 Cap ST4133 717 2000
Cap
 In stock
£2.40 £2.00

  24 Cap ST4182 717 2000
Cap
 In stock
£2.52 £2.10

  25 Drive shaft (Contains 26) ST4182 710 3235
Drive shaft (Contains 26)
 Out of stock
£120.96 £100.80

  26 Driver ST4182 740 3503
Driver
 Out of stock
£17.40 £14.50

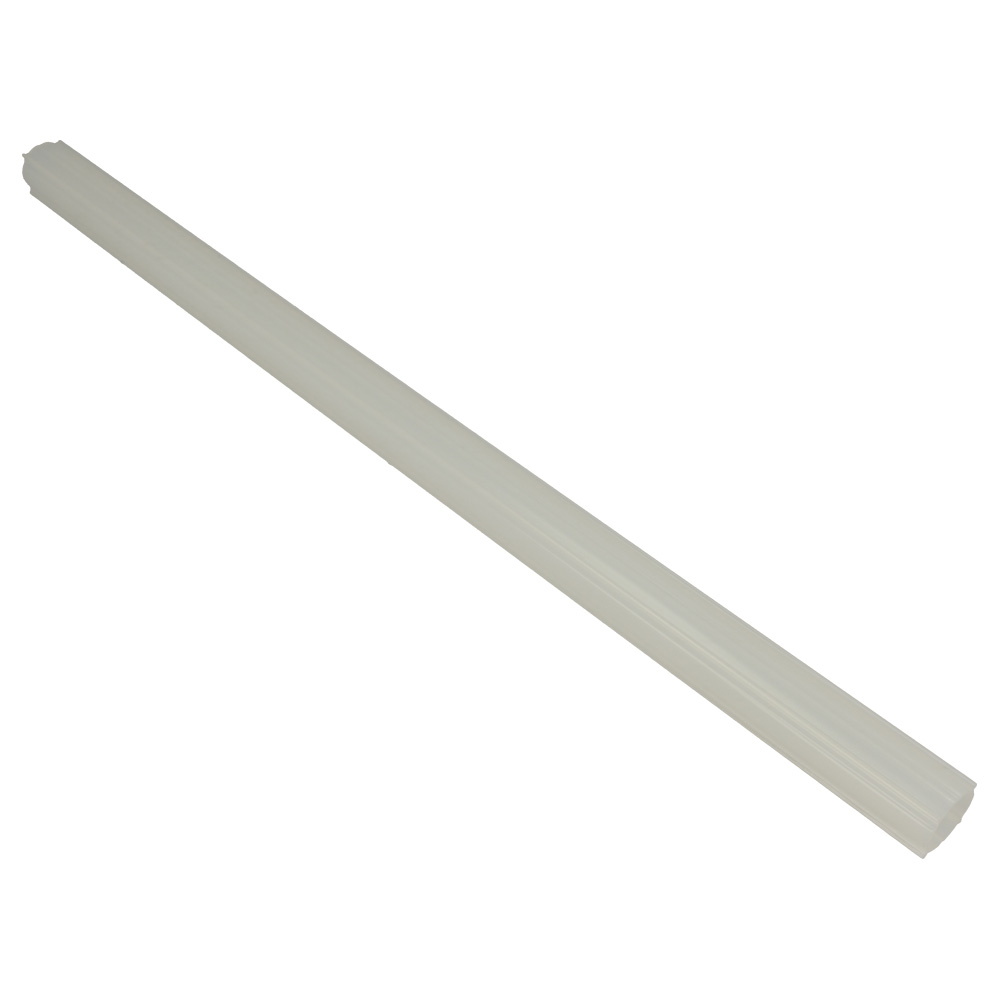

  27 Flexible liner STLA01 711 7311
Flexible liner
 Out of stock
£6.48 £5.40

  28 Snap ring 12 ST9458 621 1130
Snap ring 12
 Out of stock
£0.84 £0.70

  29 Ring ST4138 711 9002
Ring
 Out of stock
£3.65 £3.04

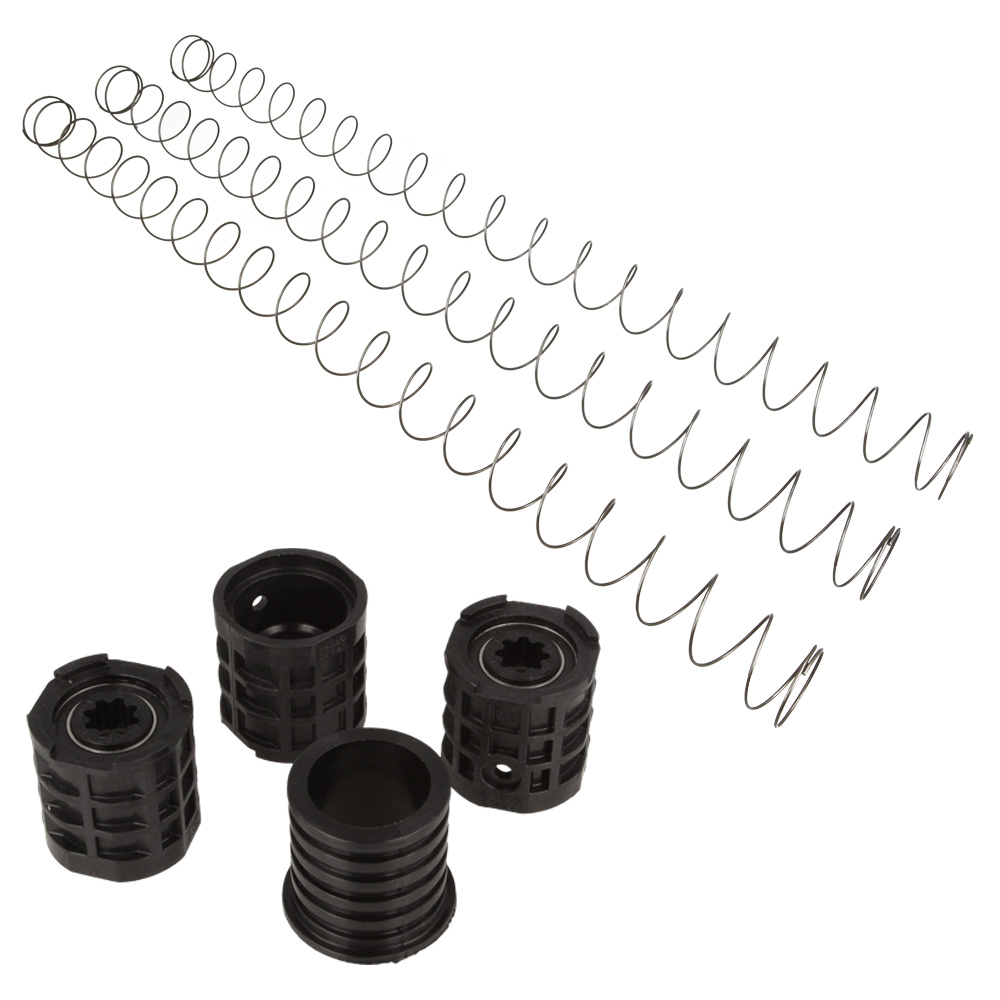

  30 Set of bearings (Contains 31 + 32) ST4182 007 0601
Set of bearings (Contains 31 + 32)
 Out of stock
£118.92 £99.10

  32 Spring ST4138 711 9100
Spring
 Out of stock
£3.12 £2.60

  33 Clip HT (Contains 34) ST0000 790 8600
Clip HT (Contains 34)
 Out of stock
£14.72 £12.27

  34 Spring ST0000 791 3110
Spring
 Out of stock
£2.65 £2.21

  36 Press fluid OH 723 ST0781 957 9000
Press fluid OH 723
 Out of stock
£6.91 £5.76
