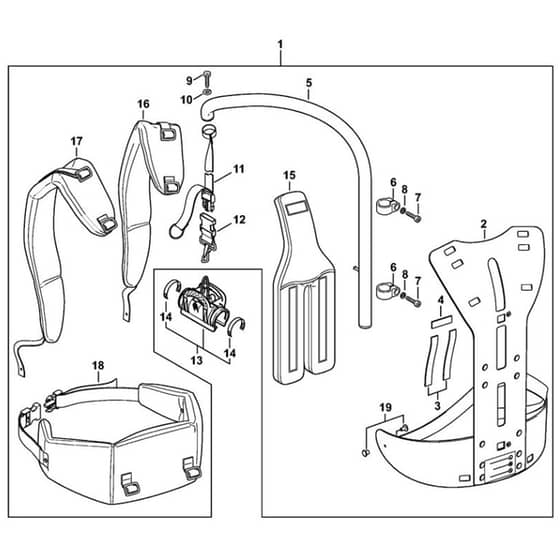

Stihl HTA135 - Back Mounted Support System Rts - Parts Diagram

Name: Stihl HTA135 - Back Mounted Support System Rts - Parts Diagram
SKU: hta135_back_mounted_support_system_rts-group
Price: 0.29 GBP
Availability: InStock

Part No. hta135_back_mounted_support_system_rts-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HTA135 - Back Mounted Support System Rts - Parts Diagram

Description

Stihl HTA135 - Back Mounted Support System Rts - Parts Diagram

	Part No.	Details
-1	ST4182 792 2100 Available to backorder	Cling strip	£6.94 £5.78
1	ST0000 790 4400 Available to backorder	Back mounted support system RTS (Contains 2 - 12 + 15 - 19)	£156.24 £130.20
6	ST4182 791 9400 Available to backorder	Hose clamp	£4.68 £3.90
7	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
8	ST9291 021 0120 In stock	Washer 5.3	£0.35 £0.29
9	ST0000 951 1100 In stock	Screw	£1.66 £1.38
10	ST9307 021 0120 Available to backorder	Washer 5.3	£0.35 £0.29
11	ST4182 791 8000 In stock	Webbing	£9.91 £8.26
12	ST4249 710 6900 Available to backorder	Spring safety hook	£12.52 £10.43
13	ST0000 790 8600 Available to backorder	Clip HT (Contains 14)	£13.66 £11.38
14	ST0000 791 3110 Available to backorder	Spring	£2.40 £2.00
15	ST4182 790 8000 Available to backorder	Back rest pad	£53.69 £44.74
18	ST4182 710 9100 Available to backorder	Lap belt	£54.04 £45.03
