Stihl HTA 160.0 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Name: Stihl HTA 160.0 - Electric Motor, Motor Housing, Control Handle - Parts Diagram
SKU: hta_160_0_electric_motor_motor_housing_control_handle-group
Price: 0.29 GBP
Availability: InStock

Part No. hta_160_0_electric_motor_motor_housing_control_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HTA 160.0 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

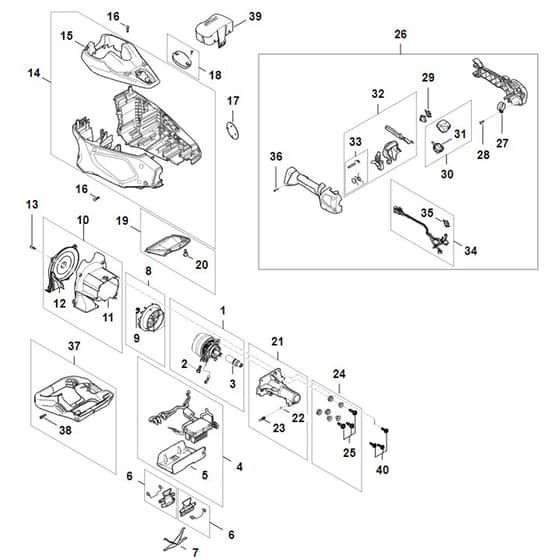

Stihl HTA 160.0 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

	Part No.	Details
1	STLA01 600 0202 Available to backorder	Electric motor (Contains 45353)	£214.20 £178.50
2	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
3	STFA01 764 4200 Available to backorder	Carrier	£15.71 £13.09
4	STLA01 430 1410 Available to backorder	Electronic module (Contains 5)	£208.80 £174.00
5	STFA01 404 0800 Available to backorder	Contact plate	£13.32 £11.10
6	ST4851 430 9800 In stock	Trigger interlock	£5.14 £4.28
7	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
8	STFA01 600 3200 Available to backorder	Fan wheel (Contains 9)	£8.42 £7.02
9	ST9460 624 0800 Available to backorder	E-clip 8	£0.35 £0.29
10	STFA01 820 8100 Available to backorder	Spiral housing (Contains 45637)	£21.95 £18.29
11	STFA01 602 0300 Available to backorder	Spiral housing	£14.80 £12.33
12	STFA01 706 3400 Available to backorder	Cover	£5.36 £4.47
13	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
14	STFA01 600 0802 Available to backorder	Motor housing (Contains 15)	£133.08 £110.90
15	STFA01 084 0900 Available to backorder	Shroud	£27.54 £22.95
17	STLA01 967 1515 Available to backorder	Model plate HTA 160	£4.68 £3.90
18	STFA01 820 8000 Available to backorder	Cover	£5.36 £4.47
19	STFA01 080 1900 Available to backorder	Filter (Contains 20)	£16.74 £13.95
20	ST9022 319 1028 In stock	Screw IS-M5x14	£0.83 £0.69
21	STFA01 600 3401 Available to backorder	Flange (Contains 22 + 23)	£41.42 £34.52
22	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
23	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.26 £1.05
24	STFA01 007 1000 Available to backorder	Screw kit (Contains 25)	£10.60 £8.83
25	ST0000 951 1100 In stock	Screw	£1.66 £1.38
26	STLA01 790 1300 Available to backorder	Control handle (Contains 27 + 28 + 30 - 35)	£107.28 £89.40
27	STFA01 790 4700 Available to backorder	Clamp	£4.45 £3.71
28	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.83 £0.69
29	ST1250 430 0500 In stock	Switch	£3.20 £2.67
30	STFA01 430 0501 Available to backorder	Switch (Contains 31)	£15.02 £12.52
31	ST4867 430 0501 In stock	Switch	£11.22 £9.35
32	STFA01 007 3820 In stock	Control lever kit (Contains 33)	£15.66 £13.05
33	STFA01 007 1320 Available to backorder	Set of mounting hardware	£2.96 £2.47
34	STFA01 430 2220 Available to backorder	Wiring harness (Contains 35)	£24.61 £20.51
36	ST9074 478 3025 In stock	Pan head screw IS P4x16	£0.79 £0.66
38	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
39	ST4850 602 0900 Available to backorder	Cover	£4.68 £3.90
