Stihl HT135 - Engine Ø 43 Mm - Parts Diagram

Name: Stihl HT135 - Engine Ø 43 Mm - Parts Diagram
SKU: ht135_engine_43_mm-group
Price: 0.33 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HT135 - Engine Ø 43 Mm - Parts Diagram

Description

Stihl HT135 - Engine Ø 43 Mm - Parts Diagram

Be the first to review this product

0 product questions

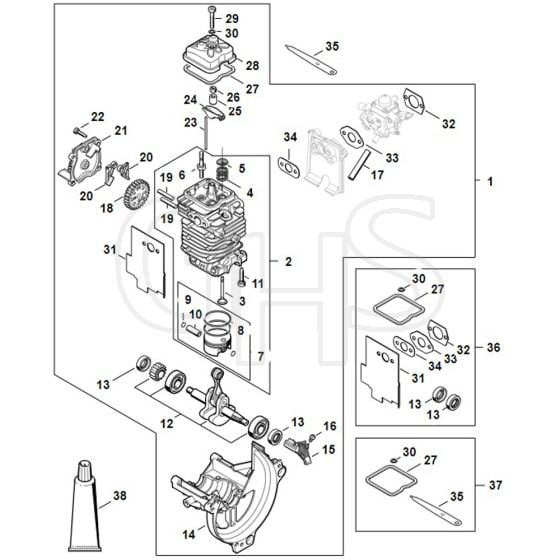

	Part No.	Details
1	ST4180 020 0205	Sort block Ø 43 mm (Contains 2 - 34)	Out of stock	£313.92 £261.60
2	ST4180 020 1210	Cylinder with piston Ø 43 mm (Contains 3 - 11)	Out of stock	£154.08 £128.40
3	ST4180 025 2011	Valve	Out of stock	£16.99 £14.16
4	ST4180 025 1600	Valve spring	Out of stock	£1.76 £1.47
5	ST4180 025 3000	Spring retainer plate	Out of stock	£1.50 £1.25
6	ST4180 038 1700	Collar screw M5	Out of stock	£2.65 £2.21
7	ST4180 030 2003	Piston Ø 43 mm (Contains 8 - 10)	Out of stock	£103.92 £86.60
8	ST4180 034 3001	Piston ring Ø 43x1.2 mm	Out of stock	£9.82 £8.18
9	ST9463 650 0900	Snap ring 9x0.8	Out of stock	£0.76 £0.63
10	ST4180 034 1501	Piston pin 9x5x26	Out of stock	£7.43 £6.19
11	ST9075 478 4159	Pan head self-tapping screw IS-D5x24	In stock	£1.13 £0.94
12	ST4180 030 0411	Crankshaft	Out of stock	£207.36 £172.80
13	ST9639 003 1231	Oil seal 12x22x7	Out of stock	£5.78 £4.82
14	ST4180 021 2500	Engine pan	Out of stock	£31.69 £26.41
15	ST4180 448 1201	Lead retainer	Out of stock	£3.65 £3.04
16	ST9074 478 2970	Pan head self-tapping screw IS-P4x10	Out of stock	£0.86 £0.72
17	ST4180 141 8602	Impulse hose	Out of stock	£3.78 £3.15
18	ST4180 030 1800	Cam wheel	In stock	£8.80 £7.33
19	ST4180 038 0801	Pin 5x28	Out of stock	£2.36 £1.97
20	ST4180 038 1900	Cam follower	Out of stock	£10.88 £9.07
21	ST4180 038 1301	Cover	In stock	£9.06 £7.55
22	ST9075 478 3018	Pan head self-tapping screw IS-D4x18	Out of stock	£0.86 £0.72
23	ST4180 038 2600	Pushrod	Out of stock	£1.90 £1.58
24	ST4282 038 1000	Rocker arm	Out of stock	£2.36 £1.97
25	ST4180 038 2000	Sleeve	Out of stock	£3.28 £2.73
26	ST4180 038 2700	Lock nut M5	Out of stock	£1.26 £1.05
27	ST4180 029 0500	Gasket	Out of stock	£1.50 £1.25
28	ST4180 025 1100	Valve cover	Out of stock	£4.56 £3.80
29	ST9022 346 1070	Spline screw IS-M5x30	Out of stock	£1.15 £0.96
30	ST9636 815 0270	Sealing ring 5x9x1	Out of stock	£0.55 £0.46
31	ST4180 149 0600	Muffler gasket	Out of stock	£6.54 £5.45
32	ST4114 149 1205	Gasket	In stock	£1.56 £1.30
33	ST4180 129 0905	Gasket	In stock	£2.52 £2.10
34	ST4180 129 0906	Gasket	Out of stock	£2.52 £2.10
35	ST4180 893 6400	Setting gauge	Out of stock	£0.40 £0.33
36	ST4180 007 1037	Set of gaskets (Contains 13 + 27 + 30 - 34)	Out of stock	£16.56 £13.80
37	ST4180 007 1005	Valve clearance setting kit (Contains 27 + 30 + 35)	In stock	£0.72 £0.60
38	ST0783 830 2000	Sealant Dirko HT red	In stock	£18.34 £15.28
