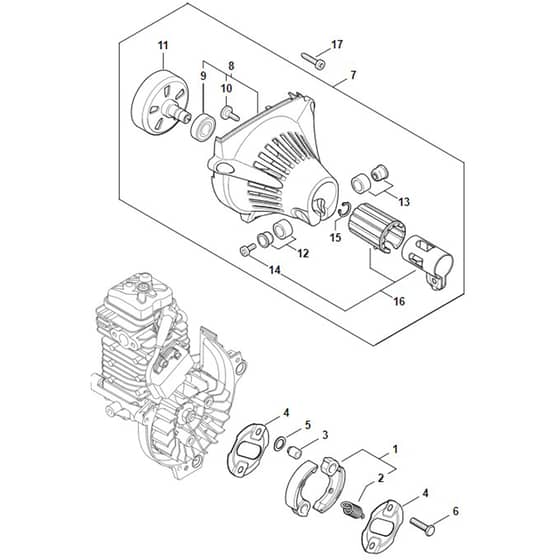

Stihl HT135 - Clutch, Fan Housing - Parts Diagram

Description

	Part No.	Details
1	ST4180 160 2000 In stock	Clutch (Contains 2)	£26.40 £22.00
1	6484 Out of stock	Clutch Assy	£14.40 £12.00
2	ST0000 997 5902 In stock	Tension spring	£1.92 £1.60
3	ST0000 961 0601 In stock	Ring	£2.54 £2.12
4	ST4180 162 1000 In stock	Cover washer	£2.32 £1.93
5	ST0000 958 1000 In stock	Washer 16x10x0.5	£1.10 £0.92
6	ST0000 951 0600 In stock	Hexagon head screw M6	£1.54 £1.28
7	ST4182 080 1805 Available to backorder	Fan housing (Contains 8 - 16)	£91.30 £76.08
8	ST4182 080 1807 Available to backorder	Fan housing (Contains 45574)	£34.42 £28.68
9	ST9503 003 6462 In stock	Grooved ball bearing DIN625-6201-2Z	£14.30 £11.92
10	ST0000 951 1105 Available to backorder	Screw IS-P5x14-T27	£1.54 £1.28
11	ST4180 160 2900 In stock	Clutch drum	£30.26 £25.22
12	ST4180 790 7205 Available to backorder	Sleeve	£2.86 £2.38
13	ST4180 790 7200 Available to backorder	Sleeve	£3.30 £2.75
14	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.88 £0.73
15	ST9455 621 1130 In stock	Circlip 12x1	£0.66 £0.55
16	ST4180 790 4700 In stock	Hose clamp (Contains 14)	£16.40 £13.67
17	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.89 £0.74
