Stihl HT134 - Muffler, Air Filter - Parts Diagram

Description

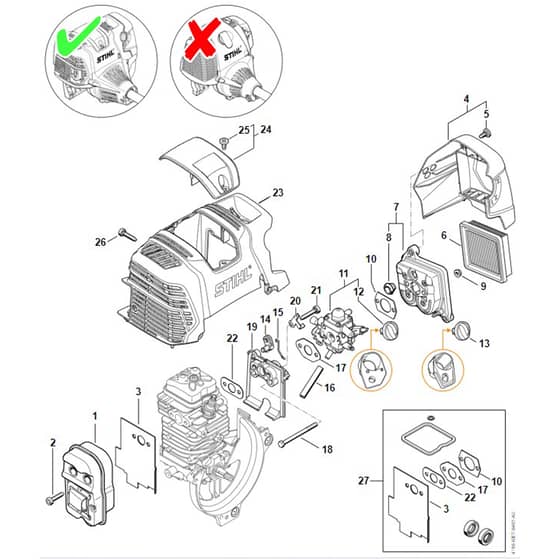

Stihl HT134 - Muffler, Air Filter - Parts Diagram

	Part No.	Details
1	ST4180 140 0603 In stock	Muffler	£30.31 £25.26
2	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
3	ST4180 149 0600 In stock	Muffler gasket	£6.13 £5.11
4	ST4180 140 1009 Available to backorder	Filter cover (Contains 5)	£22.76 £18.97
6	ST4180 141 0300 In stock	Air filter	£8.96 £7.47
7	ST4180 140 2807 Available to backorder	Filter housing (Contains 8)	£22.54 £18.78
8	ST4134 123 7500 Available to backorder	Grommet	£1.60 £1.33
9	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
10	ST4114 149 1205 In stock	Gasket	£1.31 £1.09
11	ST4180 120 0619 In stock	Carburetor 4180/19 (Contains 12)	£127.50 £106.25
12	STZ000 042 K001 In stock	Choke lever kit	£7.32 £6.10
13	ST4180 180 9500 In stock	Choke knob	£7.57 £6.31
14	ST4180 182 2800 In stock	Lever	£3.65 £3.04
15	ST4180 182 1500 In stock	Throttle rod	£2.60 £2.17
16	ST4180 141 8602 In stock	Impulse hose	£3.65 £3.04
17	ST4180 129 0907 In stock	Gasket	£2.36 £1.97
18	ST9007 319 1135 Available to backorder	Hexagon head screw M5x65	£1.60 £1.33
19	ST4180 121 1607 Available to backorder	Spacer flange	£16.61 £13.84
20	ST4180 182 9600 Available to backorder	Ground strap	£1.60 £1.33
21	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.08 £0.90
22	ST4180 129 0900 In stock	Gasket	£2.36 £1.97
23	ST4180 080 1606 In stock	Shroud	£30.66 £25.55
24	ST4180 080 0401 In stock	Cover (Contains 25)	£7.19 £5.99
25	ST0000 951 1114 Available to backorder	Screw M5x12	£1.66 £1.38
27	ST4180 007 1036 Available to backorder	Set of gaskets (Contains 3 + 10 + 17 + 22)	£16.06 £13.38
