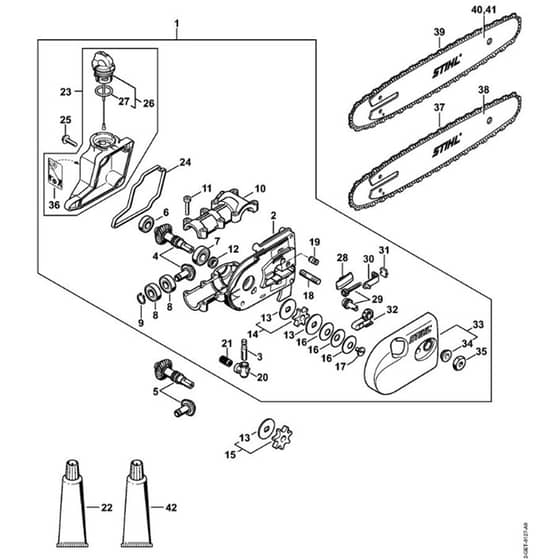

Stihl HT132 - Gear Head - Parts Diagram

Name: Stihl HT132 - Gear Head - Parts Diagram
SKU: ht132_gear_head-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stihl HT132 - Gear Head - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	ST4182 641 0300 Available to backorder	Gear housing	£99.54 £82.95
3	ST4138 640 3200 Available to backorder	Oil pump	£25.08 £20.90
4	ST4138 640 7302 Available to backorder	Set of pinions 1.27	£132.00 £110.00
5	ST4182 640 7300 Available to backorder	Set of pinions 1 1	£139.70 £116.42
6	ST9503 003 9860 Available to backorder	Deep-groove ball bearing 609-2RS	£11.98 £9.98
7	ST9503 003 5190 Available to backorder	Grooved ball bearing 6001-2RS	£13.30 £11.08
8	ST9503 003 5030 Available to backorder	Grooved ball bearing 6000-2RS	£13.30 £11.08
9	ST9455 621 0850 In stock	Circlip 10x1	£0.72 £0.60
10	ST4138 641 0400 In stock	Gearbox cover	£25.42 £21.18
11	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83
12	ST4138 642 8201 Available to backorder	Ring	£6.70 £5.58
13	ST4182 162 8900 In stock	Washer	£2.54 £2.12
14	ST0000 640 2002 Available to backorder	Chain sprocket 3/8"P 6 teeth (Contains 13)	£8.58 £7.15
15	ST0000 640 2003 In stock	Chain sprocket 3/8"P 7 teeth (Contains 13)	£10.78 £8.98
16	ST9485 648 1694 Available to backorder	Cup spring 28x102x125	£1.00 £0.83
17	ST1208 162 4200 Available to backorder	Collar screw	£3.30 £2.75
18	ST0000 953 1402 Available to backorder	Stud M8	£4.72 £3.93
19	ST1128 640 9100 Available to backorder	Valve	£4.40 £3.67
20	ST4138 353 2700 Available to backorder	Connector	£2.54 £2.12
21	ST1117 647 6801 Available to backorder	Strainer	£2.86 £2.38
23	ST4182 350 0304 Available to backorder	Oil tank (Contains 26 + 27 + 36)	£22.00 £18.33
24	ST4138 351 1000 Available to backorder	Gasket	£2.08 £1.73
25	ST0000 951 1100 In stock	Screw	£1.54 £1.28
26	ST0000 350 0529 Available to backorder	Filler cap (Contains 27)	£9.14 £7.62
27	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
28	ST1123 648 6600 Available to backorder	Bumper strip	£1.88 £1.57
29	ST1129 007 1000 Available to backorder	Spur gear / chain adjusting screw kit	£12.44 £10.37
30	ST1123 640 1900 In stock	Tensioner slide	£3.08 £2.57
31	ST1123 664 1400 Available to backorder	Thrust pad	£1.32 £1.10
32	ST1123 664 2200 In stock	Cover	£0.88 £0.73
33	ST4138 640 1703 In stock	Chain sprocket cover (Contains 34)	£20.14 £16.78
34	ST0000 961 1409 Available to backorder	Ring	£2.54 £2.12
35	ST0000 955 0801 In stock	Hexagon nut M8	£2.08 £1.73
36	ST0000 967 7337 Available to backorder	Warning pictogram HT	£2.08 £1.73
37	ST3610 000 0044 In stock	Picco Micro Mini 3 \| 61 PMM3 44 \| 3/8" P \| 11mm/.043" \| 44	£16.30 £13.58
38	ST3005 000 3905 In stock	Light 01 \| 30cm/12" \| 3/8" P \| 11mm/.043"	£36.90 £30.75
39	ST3612 000 0044 Available to backorder	Picco Duro 3 \| 63 PD3 44 \| 3/8" P \| 13mm/.050" \| 44	£50.16 £41.80
40	ST3005 000 7405 Available to backorder	Light P04 \| 30cm/12" \| 3/8" P \| 13mm/.050"	£49.72 £41.43
41	ST3005 000 4805 In stock	Light 04 \| 30cm/12" \| 3/8" P \| 13mm/.050"	£43.30 £36.08
42	ST0781 120 1004 Available to backorder	Gear lubricant 40 g	£25.50 £21.25
